Bottom ash discharged from industrial boilers and waste-to-energy furnaces frequently reaches extreme temperatures, often up to 2400°F (1316°C), creating immediate structural and operational hazards for standard material handling equipment. Traditional hydraulic ash handling—utilizing high-pressure water jets and abrasive sluiceways—presents severe environmental and water-treatment liabilities. Transitioning to a continuous mechanical system is now the industry standard for modern efficiency. Inadequate ash handling leads to catastrophic equipment degradation, unscheduled downtime, and potential environmental compliance failures. Facilities must safely cool, fracture, and transport this material without compromising continuous boiler operation. Selecting the correct equipment requires a rigorous technical evaluation of cooling methodologies, metallurgical specifications, and mechanical durability. This guide breaks down the engineering criteria for specifying a system capable of surviving high-temperature bottom ash environments.
Cooling Methodology Dictates Design: The choice between wet submerged flight conveyors (SFC) and dry air-cooled conveyor systems fundamentally alters the conveyor’s mechanical requirements, space footprint, and environmental profile.
Material Selection is Non-Negotiable: High-temperature environments necessitate specific metallurgical choices, such as a heavy-duty stainless steel conveyor belt, to prevent warping, oxidation, and tensile failure.
Upstream Fracturing Reduces Component Wear: Breaking down large slag deposits early—either through thermal shock in water troughs or mechanical roller-type breakers positioned at the furnace outlet—is critical to preventing conveyor jams.
Regulatory Drivers Influence TCO: Increasingly stringent environmental regulations (e.g., EPA ELG rules for steam electric power plants) are driving facilities away from legacy sluice water ponds toward closed-loop wet or zero-liquid discharge dry slag conveyor systems.
Continuous exposure to 2400°F (1316°C) ash severely impacts standard metallurgy. Carbon steel components suffer rapid metal fatigue and extreme thermal expansion when subjected to these conditions. We see this lead directly to a high risk of catastrophic belt failure in the field. Equipment must withstand extreme temperature gradients without warping or losing structural integrity. Engineered high-alloy metals maintain operational stability under constant thermal load. When you drop molten or semi-molten ash onto a cold steel surface, the immediate contraction and expansion cycle destroys standard welds. Plant engineers must specify materials that accommodate thermal growth through slotted connections and expansion joints.
The physical degradation accelerates when operations cycle boilers on and off. Thermal cycling creates micro-fractures in standard carbon steel plates. Over time, these micro-fractures propagate into massive structural cracks. You will notice this first around the drive sprockets and tail pulleys where mechanical stress meets thermal stress. Upgrading the metallurgy of the entire transport path prevents these sudden failures.
Boiler slag contains high quartz and silica content. This physical composition makes the material highly abrasive, acting like heavy-duty sandpaper against moving parts. When wet, the ash causes acidic or alkaline pH shifts depending on the fuel source. This chemical reaction compounds the thermal challenges. Specialized wear liners and corrosion-resistant materials are mandatory for long-term survival. Without them, the abrasive slurry quickly erodes standard steel plates and chains.
We evaluate ash abrasiveness using the Hardgrove Grindability Index (HGI) and silica percentage. High-silica ash requires chromium-carbide overlay plates on all sliding surfaces. The wet environment in submerged systems creates a highly corrosive electrolyte. This attacks unprotected carbon steel within weeks. You must implement a comprehensive corrosion protection strategy, including sacrificial anodes or high-nickel alloys, to protect the structural casing.
A viable system must meet strict baseline requirements to function in a modern power plant. It needs continuous operation capability to match boiler output without bottlenecking the process. Effective heat dissipation protects downstream equipment from thermal damage. The system must offer high resistance to highly abrasive slag to extend maintenance intervals. Finally, it requires minimal manual maintenance intervention to protect worker safety in high-heat zones.
Maintain continuous material flow matching the maximum continuous rating (MCR) of the boiler.
Reduce ash temperature from 2400°F to below 140°F before discharging to secondary transport.
Fracture large clinkers into manageable sizes under 2 inches in diameter.
Contain all fugitive dust and steam to maintain a safe working environment.
Operate for a minimum of 18 months between major overhaul outages.
Ash drops directly from the boiler throat into a water-filled trough. A continuous chain-and-flight system quenches and dewaters the material. The extreme temperature differential between the 2400°F ash and the water causes the bottom ash to fracture naturally. This thermal shattering minimizes downstream grinding requirements. Operators must maintain continuous water levels, manage overflow filtration, and monitor water chemistry to prevent acid build-up.
The water bath acts as an absolute seal against boiler draft leaks. This prevents ambient air from entering the furnace and disrupting combustion efficiency. The flight bars drag the shattered ash up an incline. This incline allows excess water to drain back into the trough. You achieve a final moisture content of around 15% to 20%, which prevents dust during truck loading.
Managing the water loop requires dedicated attention. The quenching process evaporates a significant volume of water, requiring continuous makeup flow. The water absorbs heavy metals and suspended solids from the ash. You must pump this overflow through a series of settling tanks or hydrocyclones. Maintaining neutral pH prevents rapid corrosion of the submerged components.
Ash is transported without water addition. Controlled ambient air drafts are drawn into the boiler to gradually cool the slag. Dry systems improve overall plant thermal efficiency. They capture radiant heat from the cooling ash and return it to the boiler as preheated combustion air. Airtight steel casings and vacuum-draft systems are necessary to prevent fugitive particulate emissions.
The dry approach eliminates the entire water treatment infrastructure. You do not need settling ponds, chemical dosing, or sludge pumps. The ash travels on a specialized heat-resistant belt while cooling air flows counter-current to the material direction. This controlled cooling process prevents the sudden thermal shock seen in wet systems, meaning the ash does not shatter naturally.
Parameter | Wet Submerged Flight Conveyor | Dry Air-Cooled Conveyor |
|---|---|---|
Cooling Medium | Water bath | Ambient air draft |
Fracturing Method | Thermal shock (shattering) | Mechanical roller breakers |
Boiler Efficiency Impact | Neutral to slight heat loss | Improves efficiency via heat recovery |
Final Ash State | Wet slurry / damp cake (15-20% moisture) | Completely dry, dusty material |
Environmental Focus | Water treatment and discharge limits | Dust containment and air permits |

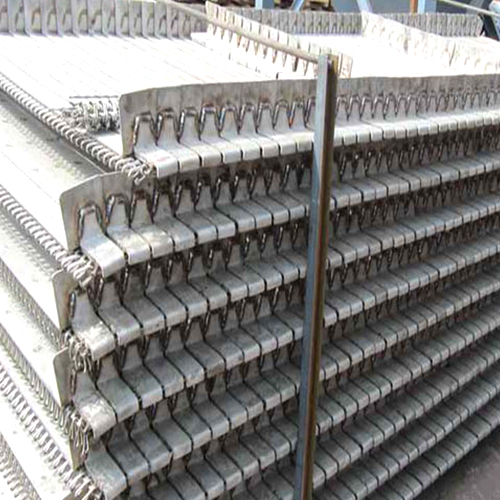

High-temperature oxidation and corrosive wet-ash environments demand specific metallurgy. A high-alloy Stainless Steel Conveyor Belt (such as grade 310 or 316) is essential for dry systems. Continuous heat exposure affects the load-bearing capacity of the belt. Engineering teams must calculate tension requirements to prevent stretching or snapping. Steel plate-link systems offer superior extreme impact resistance compared to standard woven wire mesh belts.
When heavy clinkers fall from the boiler, they strike the belt with massive kinetic energy. A standard wire mesh will deform and eventually tear under this impact. Plate-link designs utilize overlapping steel plates bolted or welded to heavy-duty drive chains. This creates a solid moving floor that absorbs impact and resists the abrasive scraping of the ash.
Oversized clinkers must be reduced before transport. Integrating a roller-type slag breaker directly at the furnace discharge outlet facilitates faster cooling. This pre-conveyor mechanical crushing prevents jams on the slag conveyor. Dry mechanical crushing contrasts sharply with the natural thermal fracturing found in wet SFC systems. Proper sizing ensures smooth downstream handling.
In dry systems, the lack of thermal shock means clinkers remain intact. You must install heavy-duty, slow-speed crushers equipped with hard-faced teeth. These crushers grab the large chunks and force them through a sizing grid. If a piece of uncrushable material, like refractory brick, enters the breaker, an auto-reverse function must engage to clear the jam and prevent motor burnout.
Abrasive ash slurry destroys standard bearings in days. Heavy-duty, water-tight, outboard bearings are an absolute necessity in wet systems. They prevent slurry from entering the bearing housing. Motors and drives require strategic placement. Locating them away from high-heat zones and potential water-spray areas extends component lifespan significantly.
Use outboard bearing housings separated from the main casing by a visible gap.
Implement continuous clean-water or air purge systems on all shaft seals.
Install vibration and temperature sensors on all primary drive bearings.
Utilize direct-coupled hydraulic drives for high-torque, low-speed operation.
Specify split-housing bearings to allow rapid replacement during short outages.
Dry systems eliminate wastewater treatment infrastructure and water consumption fees. They do not require makeup water pumps, settling basins, or chemical neutralization skids. However, they require more electrical energy for draft fans and heavy-duty mechanical breakers. Wet systems simplify the fracturing process through thermal shock but require complex closed-loop water treatment systems to handle the contaminated overflow.
You must evaluate the site-specific availability of water. In arid regions, dry cooling is often the only viable option. In older plants with existing water infrastructure, upgrading to a closed-loop wet system might require less capital modification. The energy required to run high-pressure draft fans in a dry system can offset some of the thermal efficiency gains achieved through heat recovery.
Predictable wear patterns dictate maintenance schedules. Wet systems suffer from acid corrosion and abrasive slurry wear on flight chains and trough bottoms. You will replace wear shoes and chain links frequently. Dry systems suffer from high thermal cycling fatigue and dust-induced bearing wear. The overlapping plates in a dry belt require regular inspection for warping and hinge pin degradation.
We recommend stocking a complete set of high-wear items on-site. For wet systems, this includes flight bars, chain shackles, and tail sprockets. For dry systems, keep spare plate links, breaker teeth, and high-temperature seals readily available. Implementing a predictive maintenance program using ultrasonic thickness gauges helps track trough wear before a catastrophic leak occurs.
Dry ash retains a higher commercial value as an additive for concrete and cement manufacturing due to its pozzolanic properties. Cement producers prefer dry ash because it does not require energy-intensive drying before blending. Wet ash is heavier due to the retained moisture, increasing landfill haulage weights and transportation logistics.
If you plan to sell the bottom ash, a dry system provides a market-ready product. Wet ash often requires temporary storage in decanting bins to drain excess water before trucks can legally transport it on public highways. The moisture content in wet ash can also cause freezing issues in cold climates during winter transport.
Retrofitting modern equipment into tight basement spaces presents harsh engineering realities. These areas were originally built for gravity sluice pipes, which take up very little vertical space. Replacing water-filled hopper pits with continuous mechanical conveyors alters structural load-bearing requirements under the boiler. Engineers must conduct a thorough spatial audit to design custom transition chutes.
You often have to excavate the basement floor or modify the boiler support steel to fit the new equipment. The transition chute connecting the boiler throat to the conveyor must accommodate the downward thermal expansion of the boiler, which can be several inches. We use high-temperature fabric expansion joints or water-sealed dip plates to maintain the draft seal while allowing movement.
Switching to dry or closed-loop wet systems helps facilities comply with zero-liquid discharge (ZLD) regulations. Clean water standards heavily restrict legacy sluice water ponds, forcing plants to eliminate contaminated wastewater discharge. Modern mechanical conveyance eliminates the need for these ponds entirely. This proactive upgrade ensures long-term regulatory compliance and eliminates groundwater contamination risks.
Regulators focus heavily on heavy metal leaching from ash ponds. By moving to a dry system, you remove the transport water equation completely. If you choose a wet system, it must be a closed-loop design where no water leaves the facility. The overflow water is treated and recycled back into the quench trough, requiring specialized filtration equipment to manage the suspended solids.
Design safeguards prevent catastrophic boiler shutdowns during a material jam. Automated temperature sensors detect abnormal heat spikes in the cooling zones. Emergency bypass chutes redirect ash if the primary line fails. Torque-limiting clutches protect the drive motors from overloading when heavy clinkers obstruct the path.
You cannot stop a boiler instantly. If the ash removal system fails, the ash will back up into the furnace throat, causing a massive slag fall and severe damage. We install redundant drive motors and dual-chain systems to ensure continuous operation even if one component fails. Shear pins and hydraulic relief valves provide mechanical protection against uncrushable objects.
There is no universal solution for bottom ash handling. The optimal system depends entirely on water availability, thermal efficiency goals, and ash disposal strategy. Select wet submerged systems for proven reliability and natural fracturing if water treatment is available. Select dry systems if heat recovery is prioritized and zero-liquid discharge is mandated.
Conduct a comprehensive spatial audit of the boiler basement to determine clearance limits.
Analyze your current ash composition to specify the correct wear liner metallurgy.
Evaluate local environmental regulations regarding wastewater discharge and dust emissions.
Develop a predictive maintenance schedule based on the chosen cooling methodology.
A: Standard carbon steel systems degrade quickly above 750°F (400°C). Engineered high-alloy and stainless steel systems are designed to handle ash dropping at temperatures up to 2400°F (1316°C) by utilizing specialized cooling mechanisms and thermal expansion joints.
A: It provides dual resistance to high-temperature oxidation and the corrosive nature of quenched ash slurry. This prevents warping, metal fatigue, and chemical degradation, ensuring the belt survives the extreme operating environment.
A: It uses a thermal shock process. The extreme temperature difference between the 2400°F ash and the cooling water causes the slag to shatter rapidly upon impact, significantly reducing the need for downstream mechanical crushers.
A: Dry handling uses ambient air drafts to cool ash and recovers heat for the boiler, producing a dry byproduct. Wet handling uses water troughs to quench and fracture the ash, creating a dewatered slurry that requires water treatment.
A: Facilities use engineered water-tight seals, outboard bearing designs separated from the main casing, and continuous clean-water or air purge systems to keep abrasive ash slurry out of the bearing housings.
A: Yes. Because dry systems lack the thermal fracturing provided by water quenching, heavy-duty roller-type slag breakers are typically required at the boiler outlet to size the ash for transport.
A: The main challenges include severe spatial restrictions under the boiler, designing complex transition chutes to handle thermal expansion, and modifying structural loading to support heavy mechanical equipment instead of simple water hoppers.
