In the realm of thermal power generation, where vast amounts of coal are combusted to generate electricity, managing byproducts like ash becomes a crucial part of the operational process. Efficient ash handling not only helps in maintaining smooth plant operations but also plays a pivotal role in ensuring environmental compliance. One of the key components that contribute to effective ash management is the dome valve—a robust and efficient valve designed to precisely control the flow of ash under high-pressure and high-temperature conditions. KCY Dome Valves are designed specifically for thermal power plant applications. These advanced flow-control devices provide high sealing integrity, excellent durability, and unparalleled operational efficiency.

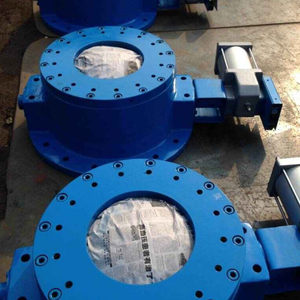

A dome valve is a type of bulk material control valve used primarily in pneumatic conveying systems. It features a dome-shaped sealing component that rotates into position to block or open material flow. Unlike traditional gate or butterfly valves, dome valves are engineered to provide a full-bore opening, which allows unobstructed flow of material and minimizes wear during operation.
In ash handling systems, dome valves are installed at critical junctures to control the flow of hot, abrasive ash from collection hoppers to silos or from silos to further processing units. Due to their design, dome valves are particularly suitable for handling dry, powdery, and highly abrasive materials like fly ash and bottom ash.
KCY dome valves are essential for efficient ash and slag handling in thermal power plants. Their simple yet efficient design makes them ideal for handling high-pressure, high-temperature, and abrasive materials. Here’s a breakdown of how they work:
When the valve is open, the dome component retracts or rotates, allowing the material to flow freely through the full-bore opening. This design minimizes resistance and prevents clogging, especially when handling abrasive and sticky materials like ash and slag. The full-bore opening ensures smooth and uninterrupted material flow, reducing wear on the valve components and ensuring longer operational life.
When a flow stop is needed, the dome rotates back into the flow path, blocking the passage. Before the valve fully seals, the valve chamber is purged with air to clear any ash particles, preventing damage to the sealing surfaces. This step ensures that the valve remains efficient for extended periods.
Once the dome is in place, an inflatable seal inflates around the dome to create a tight, pressure-resistant closure. This provides a dust-tight and leak-proof seal, even in high-pressure pneumatic systems. The inflatable seal is critical for preventing material from escaping and ensuring a safe, efficient system.
To restart operations, the inflatable seal deflates first, ensuring no abrasion on the dome. The dome then rotates out of the flow path, resuming material flow. This cyclic process ensures minimal wear, zero leakage, and maintains sealing integrity, which is crucial for handling ash efficiently.
KCY dome valves are designed to withstand the demanding conditions of thermal power generation. Here are the key features:
The inflatable seal guarantees zero leakage, even in high-pressure systems. This helps maintain a safe environment by preventing material loss and ensures that the valve operates without leaks.
The dome valve’s components are made of abrasion-resistant materials capable of withstanding the harsh conditions of handling hot and aggressive ash particles. This durability ensures long-term reliability and fewer maintenance requirements.
KCY dome valves feature a full-bore opening that minimizes flow resistance and reduces the risk of clogging. This design ensures efficient material flow, making it ideal for handling sticky or abrasive materials.
By creating a sealed system, KCY dome valves prevent fine ash particles from escaping into the environment. This feature supports cleaner, environmentally-friendly operations and helps maintain regulatory compliance.
Thanks to their durable design, KCY dome valves require minimal maintenance, reducing downtime and lowering operational costs. This makes them a cost-effective solution for power plants.
KCY dome valves are used in a variety of applications in thermal power plants, particularly in the handling and conveying of ash. Some of the key applications include:
Ash produced during the combustion process is collected in hoppers located beneath the boilers. KCY dome valves control the discharge of this ash into pneumatic conveying lines, ensuring a consistent and controlled flow of material. The valve’s high sealing integrity and wear-resistant design make it an ideal choice for handling the hot and abrasive ash produced in these systems.
By using KCY dome valves, power plants can maintain a smooth and efficient flow of material from the hoppers to the conveying lines, ensuring that the ash is handled safely and effectively.
KCY dome valves are used in pneumatic conveying systems to control the flow of ash and slag. These valves serve as inlet and outlet isolation devices, ensuring that the system can be pressurized and depressurized without leakage. This allows for continuous material flow, reducing the risk of blockages or pressure loss within the conveying system.
By maintaining tight seals, KCY dome valves help optimize the efficiency of pneumatic conveying lines, ensuring that materials are transported safely and effectively over long distances.
In addition to controlling the flow of ash from hoppers and conveyors, KCY dome valves are also used to regulate the entry and exit of ash in storage silos. These valves help prevent pressurization loss and ensure that the ash remains contained within the silos until it is ready to be moved to the next stage in the process.
The full-sealing capabilities of KCY dome valves prevent ash backflow, ensuring that the silos are operated efficiently and safely. This contributes to the overall reliability of the ash handling system.
In complex ash handling systems, KCY dome valves are used to isolate different sections of the system during maintenance or inspection. This allows the plant to continue operating without disruptions, as specific areas can be isolated and serviced without affecting the overall process.
By providing greater flexibility in the operation of the ash handling system, KCY dome valves help improve the safety and efficiency of the plant.
KCY’s dome valves have gained recognition for their engineering excellence, reliability, and suitability for harsh industrial applications. Here’s why more power plants are choosing KCY:
KCY dome valves are built to perform under extreme heat, withstanding temperatures up to 250°C or more, making them ideal for ash handling from combustion boilers.
Thanks to their robust build and minimal wear design, KCY dome valves offer long-lasting performance even in continuous 24/7 operations.
The efficient sealing mechanism reduces the need for frequent pressurization, saving energy and lowering operating costs.
The dust-tight operation of KCY dome valves helps plants comply with environmental standards related to particulate emissions and workplace safety.
In a 500 MW coal-fired power station, KCY dome valves were installed at the ash hopper outlets. These valves replaced older butterfly-type valves that frequently leaked and required constant maintenance.
After installation:
Ash flow was more consistent.
Valve failure incidents reduced by over 70%.
Maintenance intervals were extended from bi-weekly to bi-monthly.
Dust levels in the ash handling area dropped significantly.
This case highlights the tangible benefits KCY dome valves bring in real-world applications.
For more information about KCY Dome Valves and other ash handling solutions, visit Qingdao Kechengyi Environmental Protection and Electric Power Technologies Co., LTD. Our team of experts is ready to help you choose the right solution for your specific needs. Don’t hesitate to contact us today for technical assistance, pricing, or to schedule a consultation.
