Metallurgical slag processing frequently hits a hard operational bottleneck: the mismatch between raw material characteristics and the physical limits of the crushing equipment. Plant managers often specify machinery based on theoretical throughput, only to watch actual production fall short on the floor. This gap happens when you fail to account for the dynamic interplay between the incoming material's physical state and the mechanical constraints of the reduction machinery.
Underestimating feed size and slag hardness leads to severe capacity drops. When oversized or exceptionally hard materials enter the chamber, they accelerate wear part degradation, trigger unplanned downtime, and inflate your cost-per-ton metrics. A rigorous, physics-based evaluation of material properties is necessary to correctly specify a slag crusher that balances throughput requirements with long-term operational viability. Understanding these variables ensures the selected machinery handles abrasive, high-strength metallurgical byproducts without compromising efficiency.
Capacity is Conditional: Crusher throughput is not a static specification; it fluctuates dynamically based on the input feed size and the specific work index of the slag.
The Reduction Ratio Limit: Exceeding the optimal feed-size-to-output ratio forces equipment to work outside its design parameters, drastically reducing capacity and efficiency.
Hardness Dictates OPEX: High slag hardness exponentially increases energy consumption and wear part replacement frequency, making long-term operational viability the primary evaluation metric over initial capital expenditure.
Equipment Matching is Critical: Selecting specialized equipment, such as a High-Efficient Strong Slag Crusher, requires aligning the machine’s mechanical crushing force with the material's maximum compressive strength.
Predictable capacity requires accurate baseline measurements of the raw material before equipment evaluation begins. Without a clear understanding of the physical properties of the slag, any throughput calculations remain purely theoretical. Establishing success criteria means quantifying exactly what is entering the crushing chamber. You cannot manage what you do not measure, and in slag processing, assumptions lead directly to mechanical failures.
Evaluating hardness goes beyond simple visual inspection. The Bond Work Index (BWI) and the Mohs hardness scale provide quantifiable metrics for how much energy is required to reduce the material. Steel slag typically exhibits a higher BWI compared to copper slag due to its dense, crystalline matrix. Silica content plays a massive role here. Higher silica levels drastically increase the abrasiveness of the material, which directly impacts the wear rate of internal components like blow bars and jaw dies.
The cooling method alters the structure fundamentally. Air-cooled slag tends to form tough, crystalline structures that resist mechanical fracture. It requires massive compressive force to break. Water-quenched slag becomes brittle but highly abrasive. It shatters easier but acts like sandpaper on your manganese liners. Knowing the cooling history of your slag is a mandatory step before selecting a crushing chamber profile.
Understanding the Feed Size Distribution (FSD) dictates how you optimize intake. The F80 metric—the size at which 80% of the feed material passes through a screen—serves as the standard benchmark for sizing the feed opening. There is a significant variance between raw slag boulders dumped directly from a slag pot and pre-screened material.
Raw boulders introduce unpredictable spikes in feed size. This requires a primary crusher with a massive gape to prevent bridging. Pre-screened material allows for a more consistent, efficient feed rate into secondary reduction stages. If you skip the FSD analysis, you risk buying a machine that either chokes on oversized lumps or wastes energy processing material that is already at the target size.
The physical state of the slag at the time of processing heavily influences capacity. Hot slag processing introduces thermal stress on crushing components and changes the ductility of the material. Sometimes hot slag deforms rather than fracturing cleanly, absorbing kinetic energy without breaking. This drops your tons-per-hour (TPH) output immediately.
Moisture content in stored slag creates operational hazards. Wet fines become sticky, leading to chamber packing and the blinding of grizzly feeders. When feeders blind, the crusher is starved of properly sized material. The machine runs empty, wasting electricity, while the sticky fines build up on the discharge belts, causing tracking issues and spillage.
The physical dimensions of the input material dictate the volumetric limits of crushing chambers. Every machine has a maximum intake capacity. Pushing material that exceeds or poorly matches this geometry results in immediate performance degradation. You cannot force a 1000mm boulder through an 800mm opening without causing a blockage.
The reduction ratio is defined as the maximum input feed size divided by the maximum output product size. Different crusher types possess distinct theoretical limits for this ratio. Jaw crushers generally handle a 6:1 ratio, while impactors might push 10:1 or higher depending on the material.
Forcing a higher reduction ratio in a single stage exponentially decreases TPH capacity. When a machine attempts to do the work of two crushing stages in one pass, the material spends too much time in the chamber. This creates a bottleneck that restricts new feed from entering. The motor draws maximum amperage, but the volumetric output drops to a crawl.
The mechanics of the crusher gape determine what can physically enter the machine. Oversized feed causes bridging, where large boulders lock together above the crushing chamber, blocking all subsequent material. This requires halting operations, locking out the equipment, and using a rock breaker to clear the blockage safely.
Trickle feeding oversized material severely underutilizes the chamber's volume, causing a massive capacity drop. In contrast, choke feeding properly sized material ensures the chamber remains full. A full chamber maximizes inter-particle crushing, where the rocks break against each other, reducing wear on the liners and maximizing overall efficiency.
A high percentage of undersized material in the initial feed packs the crushing chamber. Instead of fracturing new rock, the machine wastes energy compacting already-sized dust and dirt. This packing reduces the available volume for actual size reduction.
In compression-style crushers like cones and jaws, packed fines create uncrushable layers. This significantly increases the risk of mechanical stalling. The hydraulic relief systems will trigger constantly, or worse, the eccentric shaft will suffer fatigue failure from the extreme pressure spikes.
The Closed Side Setting (CSS) dictates the final product size. There is a direct operational correlation between CSS adjustments, feed size variation, and overall throughput capacity. Tightening the CSS to produce a finer product inherently restricts the discharge area.
A restricted discharge slows down the passage of material and reduces overall capacity. Balancing the CSS against the incoming feed size is a continuous operational requirement. If you tighten the CSS too much while feeding large boulders, the reduction ratio climbs too high, and the machine will stall.
There is a strict inverse relationship between material hardness and sustained production capacity. As the compressive strength of the slag increases, the volume of material a machine can process in a given timeframe decreases. Hard slag fights back against the crushing elements.
The physics of compressive strength dictate that harder slag requires higher kinetic energy or hydraulic pressure to fracture. Every crusher has a maximum power draw limit. When processing exceptionally hard slag, the machine reaches this power limit much faster.
Consequently, the volume of hard slag that can be processed simultaneously is capped by the motor's ability to supply continuous torque without tripping electrical safeguards. If you feed hard steel slag into an underpowered machine, the rotor will slow down, the belts will slip, and production will halt.
Highly abrasive slag alters the geometry of wear parts over time. As blow bars, jaw plates, and mantles wear down, the crushing chamber profile changes. This introduces the concept of capacity fade. Throughput naturally decreases as the teeth or corrugations on the liners flatten out.
Flat liners lose their ability to grip and fracture the slag. As the profile wears, the CSS effectively widens. You must make frequent adjustments to maintain product size, which eventually leads to a drop in crushing efficiency. You end up recirculating more material, which eats into your primary capacity.
Continuously processing slag at the upper limits of the equipment's hardness rating introduces severe risks of component fatigue. Bearings, eccentric shafts, and hydraulic cylinders endure immense stress spikes. The kinetic energy required to break 200 MPa slag sends shockwaves through the entire chassis.
Over time, these micro-stresses accumulate. This leads to premature mechanical failure if the equipment is not rated for continuous heavy-duty metallurgical applications. Standard aggregate crushers will literally tear themselves apart when tasked with processing high-strength steel slag day after day.
Slag is rarely homogeneous. Entrapped iron or steel alloys within the slag matrix increase localized hardness dramatically. These metallic inclusions do not fracture like rock; they bend or resist entirely. They act as uncrushable objects inside the chamber.
This results in high-impact shear stresses that challenge standard crushing elements. It often causes catastrophic damage to rotors or jaw dies if the machine lacks proper tramp relief systems. A single piece of tramp iron can destroy a standard cone crusher in seconds.
Selecting the right technology requires categorizing available machines based on their ability to handle specific feed sizes and hardness levels. No single machine is universally perfect for all slag applications. You must match the mechanics to the material.
Jaw crushers are designed for primary reduction. They are best suited for extremely large feed sizes and high-hardness, abrasive slag. Their straight-line compression mechanism handles tough materials well, utilizing massive flywheels to power through hard lumps.
However, they have limitations. They offer a lower reduction ratio and tend to produce a slabby or elongated product. You almost always require secondary crushing to achieve a fine, usable output. They are the brute force option for getting boulders down to a manageable size.
Cone crushers excel in secondary and tertiary roles. They are best for hard, abrasive slag requiring a consistent, cubical output. The continuous compression yields high efficiency and excellent particle shape.
Their primary limitations include strict feed size restrictions. Oversized material will bridge the narrow feed opening instantly. They are also highly sensitive to tramp metal. If the hydraulic relief fails to actuate quickly enough, tramp iron will score the mantle or crack the main shaft.
Horizontal and Vertical Shaft Impactors provide high reduction ratios and excellent product shape. They fracture material along natural cleavage lines by striking it at high speeds. This makes them excellent for liberating entrapped metals from the slag matrix.
However, they suffer from rapid wear part degradation when processing highly abrasive or hard slag. Using an impactor in the wrong application results in exorbitant operational costs due to the constant need to replace blow bars and anvil rings. You trade capital efficiency for massive maintenance bills.

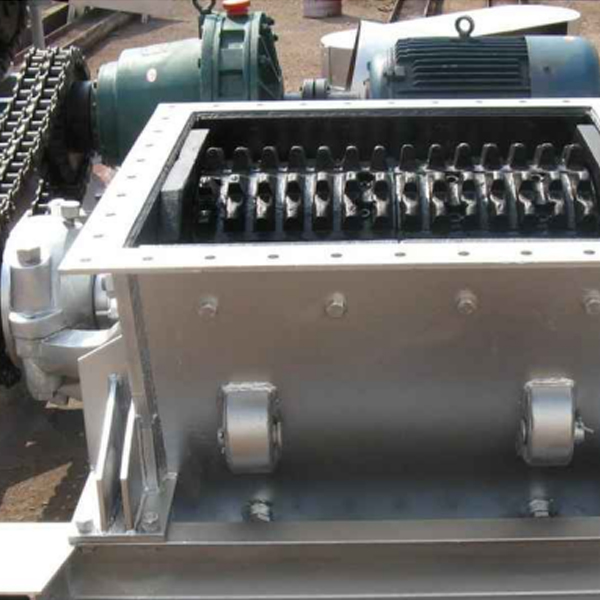

Standard equipment often struggles with the unique demands of metallurgical byproducts. A High-Efficient Strong Slag Crusher incorporates specific engineering modifications to handle these extremes. These machines are built specifically for the steel mill environment.
Features typically include reinforced rotors, heavy-duty alloy aprons, rapid hydraulic tramp relief, and dual-drive systems. These specialized units maintain capacity despite fluctuations in feed size and hardness through active torque management and optimized tooth profiles that grip and shatter dense slag matrices efficiently.
Procurement and engineering teams must utilize a structured approach when selecting equipment. Relying solely on brochure specifications for standard rock crushing will lead to undersized equipment in slag applications. You must engineer the solution based on field realities.
To determine the true size requirement, operators should use a formulaic approach: Required TPH + Hardness Derating Factor + FSD Variance = True Crusher Size Requirement. Because slag hardness and feed size fluctuate, it is highly advised to size up.
Specifying a machine with 15-20% excess capacity accounts for hardness spikes and the inevitable capacity fade caused by wear degradation. If you need 200 TPH, buy a machine rated for 250 TPH. This buffer prevents the crusher from becoming the plant bottleneck when liner wear reduces efficiency.
Evaluating different crusher types requires comparing their technical limits against the specific slag profile. Use this baseline to narrow down your equipment choices.
Crusher Type | Max Feed Size (mm) | Slag Hardness Range (Mohs) | Metal Recovery Efficiency | Primary Application |
|---|---|---|---|---|
Standard Jaw | Up to 1200mm | 6 - 8 | Low (Traps metal) | Primary Reduction |
Standard Cone | Up to 300mm | 7 - 9 | Medium | Secondary/Tertiary |
Standard HSI | Up to 800mm | 4 - 6 | High (Liberates metal well) | Secondary (Soft Slag) |
Slag Crusher (Heavy Duty) | Up to 1000mm | 7 - 9+ | Very High | Mixed/Demanding Environments |
A crusher does not operate in isolation. The chosen equipment must integrate seamlessly with existing vibrating feeders, screens, and conveyors. If the new crusher outputs material faster than the downstream screens can process it, the resulting bottleneck negates any capacity gains.
Proper integration ensures a balanced circuit where material flows continuously without surging or starving the machinery. You must calculate the belt speeds, screen deck areas, and transfer chute angles to handle the specific bulk density of the crushed slag.
Deploying slag crushing equipment in harsh industrial environments involves practical challenges. You must address these during the design phase to ensure continuous operation and protect your capital investment.
Slag frequently contains unrecovered steel or iron alloys. If these enter a standard compression chamber, they can cause catastrophic shaft or bearing failure. Mitigation requires the mandatory implementation of cross-belt electromagnets and metal detectors upstream of the crusher.
Furthermore, the crusher itself must feature robust hydraulic tramp release systems. These systems allow uncrushable metal to pass safely by temporarily opening the chamber before automatically resetting to the original CSS. Without this, you will spend hours cutting jammed steel out of the jaws.
Slag crushing generates significant volumes of hazardous silica dust, risking regulatory fines and compromising worker safety. Mitigation strategies must include the integration of high-pressure water suppression systems at feed and discharge points.
For indoor or highly regulated environments, negative pressure dust encapsulation systems connected to industrial baghouses are necessary to capture airborne particulates. You cannot run a modern slag plant without a comprehensive dust management strategy.
Unplanned downtime due to accelerated wear from hard slag can cripple plant profitability. To mitigate this, facilities must implement predictive maintenance protocols. This includes routine vibration analysis and thermal imaging of bearings.
Establish a daily visual inspection of all wear liners and blow bars.
Track the amperage draw of the main motor to identify capacity fade.
Maintain strategic inventories of high-wear components on-site.
Schedule liner replacements during planned mill outages to avoid interrupting production.
To ensure your slag processing operation meets its production targets, follow these actionable steps:
Conduct comprehensive material testing, including Bond Work Index and compressive strength analysis, before finalizing any equipment specifications.
Prioritize feed opening size for primary reduction stages to prevent bridging and ensure consistent volumetric intake.
Select equipment with high crushing force and heavy-duty wear resistance when dealing with air-cooled or high-silica slag.
Implement robust upstream metal detection and magnetic separation to protect the crushing chamber from uncrushable tramp alloys.
A: The ideal feed size depends entirely on the gape of the crusher. As a general rule, the maximum lump size should not exceed 80% of the feed opening. This ensures smooth intake, prevents material bridging, and allows the machine to maintain a consistent volumetric flow without manual intervention.
A: Higher Mohs hardness and abrasiveness exponentially decrease the lifespan of manganese or high-chrome wear parts. Abrasive slag acts like sandpaper against the chamber liners, wearing down the tooth profiles rapidly. This requires more frequent replacements and drives up overall operational maintenance costs.
A: Yes, these specialized machines are engineered specifically for high-strength materials like steel slag. They feature robust rotors, heavy-duty liners, and hydraulic relief systems designed to process dense, crystalline matrices and safely pass uncrushable metallic inclusions without sustaining internal damage.
A: The reduction ratio is calculated by dividing the maximum input feed size by the maximum output product size. A higher ratio means the machine is doing more work per pass. Pushing a crusher beyond its optimal reduction ratio limits capacity and increases mechanical strain.
A: Capacity fade occurs because the crushing chamber profile wears down over time. As the liners lose their grip and the closed side setting naturally widens due to wear, the machine becomes less efficient at fracturing rock, causing material to recirculate or take longer to pass through.
A: Oversized feed causes material bridging across the feed opening, leading to mechanical blockages. This completely halts throughput, starves the chamber, and can cause severe structural damage to the feeder system or the crusher housing if the material becomes wedged.
A: Rapid water-quenching creates an amorphous, brittle slag that is generally easier to crush but highly abrasive. Conversely, slow air-cooling yields a dense, crystalline, high-strength structure that significantly increases mechanical resistance, requiring much higher crushing forces to fracture.
