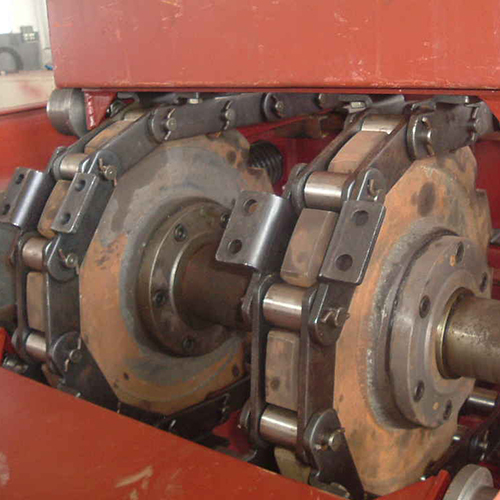

Operating in extreme environments characterized by high temperatures and severe abrasion, slag handling systems operate on thin margins of mechanical tolerance. Plant engineers know these harsh conditions constantly threaten equipment integrity. Premature mechanical degradation at the drive components—specifically sprockets and chains—leads to catastrophic system failures, unplanned downtime, and excessive replacement costs. To maximize uptime and reduce maintenance overhead, plant engineers must evaluate the interdependent relationship between sprocket integrity, chain tensioning, and overall system alignment. A well-maintained slag conveyor relies heavily on these factors to function reliably. Before specifying replacement parts or designing new conveyor architectures, understanding how wear and tension affect performance is mandatory.
Sprocket wear alters the pitch line, causing the chain to move at inconsistent speeds (chordal action), which introduces skipping, uneven mechanical stress, and drive motor fatigue.
Improper chain tensioning dictates the service life of the conveyor; over-tensioning destroys bearings and pins, while under-tensioning leads to casing impact, dragging, awkward contact, and derailment.
Specifying a Strong Sprocket with appropriate metallurgical hardening is critical to resisting the abrasive nature of ash and slag, directly reducing maintenance frequency.
Proactive alignment and safe tensioning protocols shift maintenance from reactive emergency repairs to predictable, scheduled downtime.
Slag handling presents one of the most punishing industrial environments. Conveyors must move highly abrasive particulates while enduring extreme thermal expansion and continuous heavy loads. Bottom ash and boiler slag act like grinding paste on moving metal parts. These baseline conditions require robust mechanical solutions that can withstand constant punishment without immediate failure. You must establish clear performance metrics to evaluate system health and track degradation over time.
A successful drive system is measured by its mean time between failures (MTBF), predictable wear patterns, and minimized friction-to-accuracy ratios. Plant operators prioritize components that degrade predictably over those that fail suddenly. In these applications, engineers choose sprockets and chains over high-accuracy gear drives. Gears provide precision but suffer heavily from abrasive contamination. Sprockets tolerate thermal expansion and grit by sacrificing absolute positioning accuracy in exchange for lower operational friction and mechanical compliance.
Minor deviations in sprocket alignment or tension exponentially increase wear rates across the entire assembly. When components sit slightly out of alignment, lateral forces push against the chain links. This friction grinds down metal surfaces rapidly. Maintaining strict alignment tolerances prevents these exponential wear cycles and keeps the system running smoothly.
To establish a baseline for success, maintenance teams should track the following operational metrics:
Total operating hours before measurable pitch line elongation occurs.
Frequency of manual tension adjustments required per month.
Vibration levels at the drive shaft bearings during full-load operation.
Visual wear patterns on the sprocket tooth flanks.
By monitoring these specific data points, you transition from guessing about equipment health to making data-driven maintenance decisions.
Sprocket wear fundamentally changes the mechanical physics of the drive system. As the teeth degrade from constant abrasive contact, the sprocket pitch line drops below the chain pitch line. This mismatch forces the chain to ride higher on the teeth than intended. The resulting geometry creates severe operational issues that compound rapidly if left unaddressed.
This discrepancy triggers the chordal action, also known as the polygon effect. When the chain pitch line sits above the sprocket pitch line upon entry, it accelerates as it engages and decelerates upon release. This velocity variance leads to severe skipping, jerky movements, and dynamic shock loading. The entire conveyor shudders, which damages structural supports and degrades material flow. You will physically see the chain jumping and hear a distinct banging noise as the rollers slam into the worn tooth pockets.
Worn sprockets fail to distribute loads evenly across chain rollers. Instead of sharing the pulling force across multiple teeth, the load concentrates on just one or two teeth. These localized stress concentrations accelerate metal fatigue and cause micro-fractures in the chain rollers. Once a roller cracks, it exposes the internal pin to direct abrasive attack.
This uneven stress creates cascading effects on secondary components. Cyclic tension spikes send shockwaves through the drive shaft, gearbox, and motor. Bearings endure rapid load fluctuations that break down lubrication films. Over time, this constant hammering leads to premature motor fatigue and catastrophic gearbox failure. The cost of replacing a gearbox far exceeds the cost of swapping out a worn sprocket
The progression of sprocket wear typically follows a predictable path:
Initial break-in wear removes the surface finish and seats the chain.
Normal operational wear slowly deepens the tooth pockets over thousands of hours.
Accelerated hooking occurs when the hardened surface layer is breached, exposing the softer core metal.
Complete profile failure results in the chain riding over the top of the teeth, causing total loss of drive traction.
Applying too much tension to a conveyor chain creates immediate mechanical strain. Excessive tension causes accelerated wear on chain joints and pin galling. The metal surfaces grind against each other without sufficient clearance for movement. This extreme friction destroys drive and tail shaft bearings long before their rated lifespan. You will notice bearing housings running exceptionally hot, often burning off their paint.
High-heat slag applications complicate static tension settings. Thermal expansion causes metal components to grow during operation. A chain that spans fifty feet can expand several inches when exposed to hot boiler slag. If you set the tension too tight while the system is cold, the chain will suffer thermal binding as it heats up. Dynamic evaluation is necessary to accommodate these temperature fluctuations and prevent structural damage.
A loose chain introduces a different set of destructive mechanics. Under-tensioned chains jump teeth and drag along the return path. The excess slack allows the chain to whip and impact the conveyor casing, causing structural damage and excessive noise. This constant battering wears holes through the steel casing, creating hazardous dust leaks and material spills.
Excessive slack leads to awkward contacts and drag-paddle damage. Drag flights or chain links twist out of alignment, causing uneven wear on flight wings. If slag debris accumulates in the slack zones, the twisted components can catch, leading to catastrophic jamming and snapped links. A snapped chain inside a fully loaded slag conveyor requires days of manual digging to clear.
Tension State | Primary Mechanical Symptoms | Secondary System Damage | Required Corrective Action |
|---|---|---|---|
Over-Tensioned | Pin galling, stiff joints, high motor amperage | Premature bearing failure, shaft deflection | Slacken take-up units, verify cold vs. hot sag |
Optimal Tension | Smooth engagement, minimal chordal action | Predictable, even wear across all components | Routine visual inspection and scheduled lubrication |
Under-Tensioned | Chain whipping, casing impact, tooth skipping | Bent drag flights, casing breaches, derailment | Adjust take-up frames, remove excess chain links if elongated |
Material selection dictates component survival in abrasive environments. Specifying a Strong Sprocket requires evaluating induction-hardened teeth, high-grade alloy steels, and carburizing processes. These hardening techniques create a tough outer shell that resists abrasive grinding while maintaining a ductile core to absorb shock loads. Standard carbon steel sprockets will melt away in weeks under heavy slag duty.
Surface hardening depths directly correlate to operational lifespans. A deeper hardened layer delays pitch line degradation. When evaluating sprockets, you must match the hardening depth to the expected abrasion levels of your specific slag material. For instance, handling sharp, glassy boiler slag requires a minimum surface hardness of 50-55 HRC extending at least a quarter-inch into the tooth profile.
Maintenance trade-offs often dictate component selection. Split sprockets allow maintenance teams to replace worn teeth without removing the entire drive shaft. You simply unbolt the worn halves and bolt on the new ones. This design significantly reduces labor hours and minimizes system downtime during critical outages. You avoid the nightmare of pulling heavy shafts, pressing off bearings, and realigning the entire drive train.
While solid hubs offer traditional simplicity, modern split designs provide comparable structural integrity and load-bearing capacity under heavy slag loads. Engineers must weigh the initial installation complexity of split sprockets against the massive time savings realized during future replacement cycles. In almost all heavy-duty slag applications, the split design pays for itself during the very first maintenance cycle.
Manual take-up frames are cost-effective but require high maintenance diligence. Operators must manually adjust tension using threaded rods to account for wear and thermal changes. This relies heavily on human consistency and regular inspection schedules. If the maintenance team misses a scheduled adjustment, the system rapidly falls out of tolerance.
Automated hydraulic or pneumatic tensioners require a higher upfront investment but dynamically compensate for thermal expansion and wear. These systems maintain optimal tension constantly, reducing the risk of human error and extending the lifespan of both the chain and sprockets. They absorb shock loads by acting as a mechanical spring, protecting the rigid drive components from sudden jams.
Precise alignment during installation is non-negotiable. You must use laser or dial-indicator alignment tools to prevent lateral stress on the chain and uneven sprocket tooth wear. String lines and tape measures are not accurate enough for heavy-duty drive systems. Even minor misalignments cause the chain to rub aggressively against the sprocket flanges, shaving off metal and creating sharp edges that cut into the chain sidebars.
To mitigate alignment risks, mandate strict installation checklists. Check shaft parallelism thoroughly and perform baseline vibration analysis prior to commissioning. Ensure the head shaft and tail shaft are perfectly parallel, and that the sprockets are aligned axially on the shafts. These steps ensure the system starts its operational life with optimal geometry.
Servicing high-tension chains requires strict safety guidelines. Stored mechanical energy poses a severe risk to maintenance personnel. You must establish clear protocols for isolating energy sources before beginning any physical work. Lockout/tagout procedures must cover the main drive motor, any auxiliary drives, and upstream material feed valves.
The chain tension should be slackened off completely using come-alongs or chain pulls so that joints are entirely loose before attempting pin removal or link replacement. Implement critical safety controls, such as mechanically locking and pinning the sprockets. This prevents accidental rotation whilst personnel are working on the chain assembly. Never rely solely on the gearbox brake to hold a loaded chain.
Standard lubrication is often impossible or ineffective in high-heat slag environments. Contaminants accumulate rapidly, turning standard grease into a destructive grinding paste. Oil drips catch fire or vaporize instantly upon contact with hot slag. You must address this reality when designing maintenance schedules and selecting components.
Engineers face a trade-off between accepting higher baseline friction and engineering the system to withstand dry-running conditions. Using oversized, heavy-duty components compensates for the lack of lubrication. Specifying chains with hardened pins and bushings designed for dry operation ensures the system survives despite the increased friction. Regular dry-cleaning of the chain path using compressed air or mechanical scrapers helps mitigate abrasive buildup.
Conduct a comprehensive visual and dimensional audit of current sprocket pitch lines and chain sag using proper measurement tools.
Consult with a specialized conveyor engineer to evaluate the return on investment for upgrading to split sprockets or automated tensioners.
Implement strict laser alignment protocols and standardized tensioning checklists for all future installations and maintenance turnarounds.
Establish a routine monitoring schedule to track bearing temperatures and drive motor amperage as early indicators of tensioning issues.
A: Skipping is primarily caused by pitch line wear on the sprocket. As teeth wear down, the chain pitch line sits higher, leading to chordal action velocity spikes. Chain elongation and improper tension also contribute to the chain failing to engage the teeth smoothly.
A: Tension adjustments depend on operational hours and thermal cycles. New chains require frequent adjustments during the initial break-in period. Afterward, dynamic thermal expansion dictates that tension should be monitored and adjusted regularly based on operating temperatures.
A: Visual indicators include hooked teeth, shiny wear patterns on one side of the teeth, pocket elongation, and general tooth thinning. These signs indicate that the chain is not engaging correctly and is grinding away the metal surface.
A: Thermal expansion causes the metal chain to lengthen during high-heat operation, creating slack. When the system cools, the metal contracts. This requires careful baseline calibration to prevent the chain from becoming too tight when cold or too loose when hot.
A: No. A new sprocket and a worn chain have an interdependent relationship. If you pair a new sprocket with an elongated chain, the mismatched pitch will cause the new sprocket teeth to degrade rapidly. Both components should typically be replaced together.
A: Correct alignment requires verifying shaft parallelism and using precision measurement tools like lasers to ensure lateral tooth alignment. Minimizing axial run-out guarantees that the chain travels in a straight line without grinding against the sprocket flanges.
A: Always isolate and lock out all energy sources first. Slacken off the chain tension completely so that the joints are entirely loose. Finally, mechanically secure the sprockets to prevent any accidental rotation while personnel are working on the assembly.
