Profitability in steel slag and metallurgical waste recovery strictly depends on the precision of your crushing circuit and the quality of the final graded output. Adjusting the discharge particle size dictates the efficiency of the entire downstream operation. When discharge sizes become inconsistent, plants face immediate operational and financial consequences. Downstream magnetic separation failures occur because oversized slag traps recoverable metal. You also generate excessive unsellable superfines, accelerate wear on the crushing equipment, and inflate per-ton energy consumption.
To maintain optimal yield, operators must master the mechanical and hydraulic adjustment mechanisms that control the crushing gap. Preventing calibration drift requires strict gap management and utilizing a Strong Wear-Resistant Jaw Plate. This guide breaks down how to evaluate adjustment systems, manage wear parts, and implement calibration protocols during plant modernization.
Discharge particle size in a slag crusher is primarily governed by adjusting the Closed Side Setting (CSS), which establishes the physical envelope for maximum product size.
Adjustment configurations range from manual shim packs and mechanical wedges to automated hydraulic systems, directly influencing operational downtime, labor costs, and plant safety.
A Strong Wear-Resistant Jaw Plate is the foundation of size control; as the crushing face erodes, the CSS widens, necessitating continuous monitoring and systematic recalibration.
Operational variables like feed moisture, eccentric shaft speed (RPM), and the physical characteristics of steel slag (e.g., EAF vs. BF slag) must be balanced alongside physical gap settings to achieve stable yields.
The mechanical relationship between the swing jaw and the fixed jaw plate defines the crushing cycle. The Closed Side Setting (CSS) represents the narrowest point between these two plates during the crushing stroke. This physical gap directly determines the maximum particle size of the crushed slag exiting the chamber. Conversely, the Open Side Setting (OSS) is the widest point of the cycle. The OSS impacts the intake capacity and overall throughput volume. Balancing the CSS and OSS keeps material flowing steadily without causing blockages or producing oversized fragments.
In field operations, setting the CSS too tight restricts the OSS, limiting the volume of slag entering the chamber. This causes material to back up into the feeder. Setting the CSS too wide increases throughput but forces secondary crushers to handle larger feed sizes, which they are often not designed to process efficiently. You must measure the CSS daily using physical tools like lead blocks to ensure the gap matches the target specification.
The dynamic throw, or eccentric stroke, interacts continuously with the CSS to shape the final particle size distribution. A longer stroke optimizes high-tonnage primary reduction. It allows the machine to aggressively fracture large, dense slag boulders by applying massive compressive force. However, eccentric shaft speed also plays a major role in the final product shape.
High-speed operations increase the frequency of impacts. This typically produces a higher percentage of fines. Operators must tune the RPM and stroke length to match the specific reduction requirements of their material. If you run a slag crusher too fast on dense material, you risk packing the chamber. Packing occurs when crushed material cannot exit the CSS fast enough before the next stroke hits, leading to extreme stress on the toggle plate and bearings.
Success metrics for downstream processing depend heavily on precise discharge sizing. For magnetic drum separators to recover high-purity metallic iron efficiently, the slag must be crushed fine enough to liberate the metal from the surrounding matrix. If the slag remains too large, the magnetic separator pulls the entire chunk, lowering the purity of the recovered scrap. If crushed too fine, you create excessive dust that clogs the separation screens.
Target sizing envelopes also dictate the viability of secondary commercial uses. Road base aggregates, cementitious additives, and asphalt manufacturing require specific gradations. Hitting these targets consistently requires strict CSS management. You must establish a baseline particle size distribution (PSD) curve for your specific slag type and adjust the crusher settings to keep the output within that curve.
Not all slag behaves the same inside a crushing chamber. Electric arc furnace (EAF) and basic oxygen furnace (BOF) slag are highly abrasive, dense, and metal-heavy. These properties create extreme localized high-pressure spots. Embedded steel skulls and free metallics resist fracturing. They transfer massive stress directly into the jaw plates and the crusher frame.
In contrast, blast furnace (BF) slag tends to be lighter and glassier. It breaks more predictably under compressive force. The aggressive nature of EAF and BOF slag accelerates jaw plate wear, requiring more frequent gap adjustments. When processing EAF slag, operators often notice the tooth profiles rounding off within a few weeks, whereas BF slag might allow the same plates to last months.
Calibration drift occurs when progressive abrasive wear systematically increases the CSS during production. Even within a single production shift, the constant friction from dense slag erodes the tooth profile of the jaw plates. There is a direct correlation between this rapid jaw plate erosion and a gradual shift toward oversized, out-of-specification discharge.
If left unmonitored, calibration drift forces downstream screens and secondary crushers to handle larger material than designed. This reduces overall plant efficiency. To identify calibration drift early, operators should monitor the following indicators:
Increased amperage draw on secondary crushers, indicating they are working harder to process oversized feed.
A higher volume of material returning through the closed-circuit conveyor after passing the sizing screen.
Visible rounding or flattening of the jaw plate teeth during daily inspections.
A measurable increase in the CSS when performing a lead block test at the end of a shift.
The traditional method for adjusting the CSS involves manual shim packs. The operator must release the tension rod springs, back off the toggle seat, and manually add or remove steel shim plates behind the toggle block. While mechanically simple, the operational reality is highly demanding. This process requires heavy physical labor and exposes maintenance personnel to safety hazards associated with working inside the crusher frame.
Manual shim adjustments typically force a 1-to-3-hour production halt. This severely impacts daily throughput. The steps for a manual shim adjustment usually follow this sequence:
Lock out and tag out the crusher motor to ensure zero energy state.
Loosen the tension rod nuts to relieve pressure on the toggle plate.
Use a hydraulic jack or overhead crane to pull the swing jaw forward, creating space behind the toggle block.
Insert or remove the required number of steel shims to achieve the target CSS.
Release the jack, allowing the toggle block to seat firmly against the shims.
Retighten the tension rod nuts to the specified torque.
Wedge adjustment systems offer a faster, safer alternative to shims. This mechanism uses opposing, threaded metallic wedges that are raised or lowered via mechanical bolts, hydraulic jacks, or integrated hand ratchets. As the wedges move, they slide the toggle block forward or backward to adjust the gap. Wedge systems reduce adjustment time to roughly 15-30 minutes and keep operators clear of heavy internal components.
While the machine must still come to a complete stop, the downtime is significantly reduced. The continuous thread of the wedge bolts allows for more precise gap settings compared to the fixed thicknesses of manual shims. Operators simply turn the adjustment bolts to slide the wedges, measuring the gap until the exact CSS is reached.
Fully automated hydraulic cylinder systems represent the highest standard for gap control. Double-acting hydraulic cylinders either replace traditional toggle plates entirely or automatically position the wedge block at the push of a button. This allows for on-the-fly micro-adjustments and automatic zero-point calibration. Integrated with plant PLC control loops, hydraulic systems eliminate operator exposure to heavy mechanical zones.
These systems ensure the CSS remains perfectly tuned with minimal interruption to production. When the PLC detects an increase in oversized material on the sizing screen, it can automatically signal the hydraulic cylinders to close the gap by a few millimeters. This dynamic adjustment capability maximizes the yield of on-spec material and drastically reduces manual labor requirements.

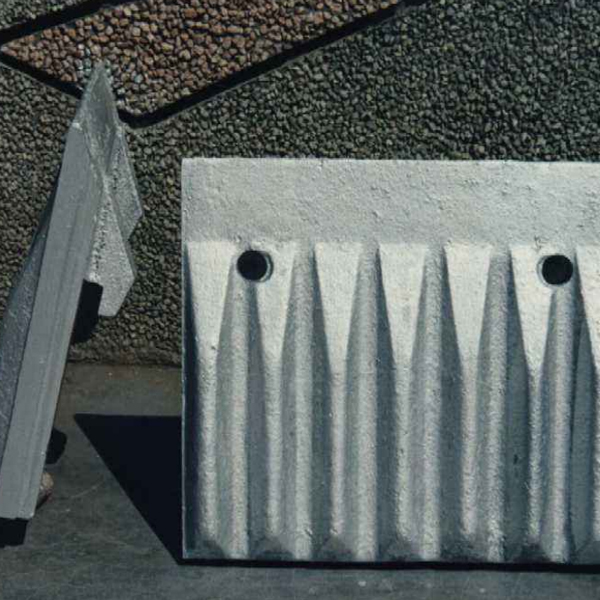

Standard crusher jaw plates fail prematurely under the intense abrasion and impact of steel slag processing. To combat this, operators must utilize advanced metallurgy. High-manganese steel alloys, such as Mn18Cr2 or Mn22Cr2, combined with titanium carbide (TiC) insert technology, provide the necessary durability. A Strong Wear-Resistant Jaw Plate withstands the localized stress of embedded metals.
These advanced plates maintain their structural integrity far longer than conventional castings. The TiC inserts act as hardened rock-breakers embedded within the tough manganese matrix. As the manganese work-hardens under impact, the TiC inserts resist the sliding abrasion caused by the dense slag, keeping the tooth profile sharp and effective.
The tooth configuration of the jaw plate directly influences the shape of the crushed product. Sharp corrugated, heavy-duty flat, or wavy profiles fracture dense slag differently. The right profile minimizes dust generation while maximizing cubical aggregate output. As teeth wear down, they often create a "grooving" effect down the center of the plate. When this happens, thin, elongated slabs of slag can bypass the CSS without being properly crushed.
Maintaining a sharp tooth profile is essential for consistent sizing. Different profiles serve different operational goals:
Standard Corrugated: Best for general slag reduction, providing a good balance of grip and fracturing force.
Heavy-Duty Flat: Ideal for processing slag with massive steel skulls, as the flat surface distributes the extreme point loads.
Sharp Wavy: Designed to produce highly cubical aggregate for road base applications by applying multi-directional bending forces to the slag.
Maintaining tooth profile integrity directly preserves the initial CSS setting over extended running hours. When the jaw plate resists wear, the gap remains stable. This drastically reduces the frequency of manual calibration intervals. The long-term cost benefits of stable reduction ratios include lower labor costs, less downtime, and a higher percentage of on-spec material reaching the magnetic separators.
Operators using premium wear parts report fewer instances of tramp iron causing catastrophic plate failure. The combination of work-hardening manganese and abrasion-resistant inserts ensures the crusher spends more time operating and less time undergoing maintenance.
Feature / Criterion | Manual Shim Packs | Mechanical Wedge Systems | Fully Hydraulic Systems |
|---|---|---|---|
Mean Time to Adjust (MTTA) | 1.5 to 3 Hours | 15 to 30 Minutes | Under 2 Minutes (Dynamic) |
Downtime & Production Loss Cost | High (Severe impact on daily OEE) | Moderate | Minimal (Often adjustable under idling load) |
Adjustment Precision | Coarse (Limited by shim thicknesses) | Moderate-to-High (Continuous thread) | Ultra-High (Digital encoder feedback) |
Operator Safety Profile | High risk (Confined space, heavy loads) | Medium risk (External adjustment bolts) | Low risk (Remote control cabin interface) |
Initial Capital Expense (CapEx) | Lowest | Moderate | Highest |
Long-Term Operational Expense (OpEx) | High (Labor costs, prolonged downtime) | Moderate | Lowest (Maximizes yield and uptime) |
The data in the table highlights the operational shift required for modern slag processing. Relying on manual shim packs guarantees high labor costs and significant production losses. Upgrading to mechanical wedges offers a reasonable middle ground for older plants. However, fully hydraulic systems provide the ultimate control over the CSS, ensuring the slag crusher operates at peak efficiency with minimal human intervention.
Slag processing carries the constant threat of massive steel inclusions that exceed the crushing capacity of the equipment. When tramp iron enters the chamber, it can cause catastrophic frame damage. Modern hydraulic adjustment systems double as automatic relief valves. Upon detecting un-crushable material, the cylinders instantly open the discharge gap to pass the tramp metal.
Once cleared, the system resets immediately to the pre-set CSS. This protects the machine and minimizes downtime. Older machines without hydraulic relief rely on the toggle plate to snap under extreme pressure. Replacing a broken toggle plate requires hours of labor and halts production entirely. Hydraulic relief systems eliminate this risk.
Accurate calibration requires strict Standard Operating Procedures (SOPs). The Lead Wire or Lead Ball Test is a proven physical method. Operators pass a calibrated lead block through the idling chamber to physically measure the minimum gap after it compresses. You attach a lead weight to a wire, lower it into the chamber until it passes the CSS, and then measure the compressed thickness with calipers.
For more advanced setups, digital calibration systems utilize non-contact ultrasonic or laser sensors. These sensors map the distance between the fixed and moving jaw plates in real-time. They provide highly accurate CSS data without manual intervention, feeding directly into the plant's control room.
Preventative maintenance extends the life of wear parts and ensures even crushing. Operators must implement feeder distribution protocols to ensure an even bed depth of slag across the entire width of the crushing chamber. Center-loading causes rapid grooving in the middle of the jaw plates, leading to premature failure and oversized bypass.
A daily inspection checklist prevents mechanical shifting during operation. Your maintenance team should verify the following points every shift:
Check tension rod spring tension to ensure the toggle plate remains seated.
Inspect toggle plate seats for signs of galling or lack of lubrication.
Confirm wedge locking-bolt torque to prevent the CSS from opening under load.
Examine the cheek plates for excessive wear that could allow slag to bypass the crushing zone.
Monitor hydraulic fluid levels and pressure readings on automated adjustment systems.
Automated hydraulic CSS adjustment coupled with premium wear-resistant metallurgy is essential for any high-volume slag recovery plant. Plant managers should prioritize equipment specifications that balance robust structural frames with advanced hydraulic safety relief systems. Proper gap management directly controls the profitability of the downstream magnetic separation and sizing circuits.
Audit the plant’s current Mean Time to Adjust (MTTA) to identify downtime bottlenecks.
Track the rate of oversized material bypass to determine how quickly calibration drift occurs.
Request a crushing chamber wear-profile audit from a qualified metallurgical engineer to optimize jaw plate selection.
Upgrade to hydraulic adjustment mechanisms if tramp iron frequently causes mechanical failure.
A: High-volume EAF slag operations typically require adjustment checks every shift or every 8 to 12 hours. The highly abrasive nature of steel slag causes accelerated wear on the jaw plates, making frequent CSS recalibration necessary to maintain product size and downstream efficiency.
A: As a general rule of thumb for reduction ratios, the maximum feed size should not exceed 80% of the crusher's feed opening. This prevents bridging in the chamber and ensures efficient sizing at the CSS without overloading the toggle mechanism.
A: Modern heavy-duty slag crushers are engineered with specialized hydraulic bypass networks designed to adjust the gap under idling or light load conditions. When operated within manufacturer specifications, these dynamic adjustments do not compromise structural integrity.
A: Flat, elongated particles are usually caused by excessive wear in the center of the jaw plate teeth, which creates a bypassing slot. It can also result from using an incorrect tooth profile that splits the slag rather than applying proper compressive crushing force.
A: While TiC inserts carry a higher initial cost, they can extend the wear life of the jaw plate by 2 to 4 times in highly abrasive slag applications. This durability maintains a precise CSS for much longer intervals, reducing maintenance downtime.
