Incorrect sizing of material handling equipment in harsh industrial environments causes severe operational bottlenecks and rapid equipment degradation. Undersizing leads to frequent jams and stalled production lines. Oversizing results in wasted floor space and highly inefficient power consumption. Getting the dimensions right from the start ensures continuous plant operation.
Slag presents unique material handling challenges that standard aggregate or coal formulas cannot solve. It features extreme temperatures, high abrasiveness, highly variable bulk densities, and unpredictable surge loading. When engineers attempt to apply standard volumetric formulas to a slag conveyor, the results often fail in the field. The material characteristics demand a specialized approach to ensure reliable transport from furnaces or quenching tanks to storage or disposal areas.
This guide introduces a rigorous, engineering-first framework for calculating required throughput. You will learn how to select the appropriate mechanical parameters, evaluate different architectural solutions, and specify a system capable of continuous, heavy-duty operation under extreme conditions.
Volumetric vs. Mass Flow: Sizing must prioritize peak volumetric flow rate over average mass flow, accounting for the specific bulk density of the exact slag type (e.g., granulated, blast furnace, or boiler slag).
Speed vs. Width Trade-offs: For highly abrasive materials like slag, increasing conveyor width while reducing operating speed is the standard methodology to maximize wear life and ensure reliability.
Incline Derating: Throughput capacity decreases non-linearly as the incline angle increases; precise calculations must account for the specific angle of repose of the slag being handled.
Surge Capacity: A high-performance reliable slag conveyor must be engineered with a minimum 20-30% surge capacity buffer to handle process upsets and uneven discharging.
Lump Size Constraints: Conveyor physical dimensions are often dictated by maximum lump size rather than volumetric throughput alone, to prevent catastrophic material bridging and mechanical jams.
Defining baseline metrics is the first step in sizing any handling equipment. The bulk density of slag varies wildly depending on its origin and cooling method. Dry ash typically sits around 40 to 60 lbs/ft³. Wet bottom boiler slag often ranges from 70 to 90 lbs/ft³. Metallurgical steel slag can easily exceed 120 lbs/ft³. You must use the exact bulk density of your specific material for accurate calculations. Guessing this number leads to undersized motors and structural failures.
Moisture content drastically alters these baseline metrics. When handling quenched slag, water retention increases the total weight per cubic foot. This added moisture also changes flowability. Wet slag becomes sticky, adhering to pans and flights, which reduces the effective volumetric capacity of the equipment over time. Field engineers must account for the worst-case moisture scenario when calculating the maximum load.
Extreme heat directly impacts component selection and volumetric calculations. Slag often exits processes at temperatures exceeding 1,000°F (538°C). This heat causes thermal expansion in metal components. If you do not account for this expansion, moving parts will bind, reducing throughput to zero. High temperatures also limit the types of materials you can use for sealing and conveying. Standard rubber seals melt instantly, requiring high-temp alloys or specialized mechanical seals.
Slag is notoriously abrasive. It frequently registers high on the Mohs hardness scale, often acting like crushed glass against steel plates. This extreme abrasiveness has a direct correlation to maximum allowable operating speeds. Running equipment too fast accelerates wear exponentially. To maintain a required throughput volume while keeping speeds low, you must increase the cross-sectional area of the conveying surface. Slower speeds mean longer component life.
Understanding how material stacks is necessary for calculating cross-sectional load area. The static angle of repose is the angle at which a pile of material naturally rests when poured onto a flat surface. However, this static angle is useless for moving equipment. You must use the dynamic angle of surcharge to determine actual carrying capacity.
The dynamic angle of surcharge is typically 5° to 10° lower than the static angle of repose. Conveyor vibration and continuous movement cause the material to flatten out as it travels. This dynamic angle directly determines the theoretical cross-sectional area of the material profile. Overestimating this angle leads to spillage over the sides and highly inaccurate capacity calculations.
Engineers must differentiate between design capacity and operating capacity. Operating capacity is the day-to-day average volume of material moved. Design capacity is the theoretical maximum volume the system can handle without failing. Sizing based strictly on operating capacity is a common mistake that leads to jammed equipment during process upsets.
You must establish the necessity of sizing for peak surge loads. Furnaces and crushers rarely output material in a perfectly steady stream. They dump material in heavy batches. If your equipment cannot handle these sudden influxes, it will jam and trip the motor. Always size the system to accommodate the highest possible surge, not the steady-state average.
Drag chain conveyors are standard for handling bottom ash and quenched slag. Submerged drag chains cool the material while transporting it, making them ideal for boiler applications. The water bath quenches the hot slag, fracturing it into smaller, manageable pieces. Dry drag chains work well for cooled, abrasive materials that require dust-tight enclosures to protect the surrounding plant environment.
Throughput limitations for drag chains depend heavily on chain pull capabilities and flight dimensions. The width and height of the flights dictate the volume moved per linear foot. For submerged applications, you must also factor in water drag-out efficiency. The incline section must be long enough to allow water to drain back into the trough, which can limit the maximum incline angle and affect overall throughput.
Vibrating pan conveyors are highly suitable for extremely hot, dry slag. Because they lack chains, sprockets, or belts in the material flow, they withstand temperatures that would destroy other systems. The material is tossed forward in a series of micro-jumps, minimizing abrasive wear on the pan surface. This makes them excellent for transferring material directly from a furnace drop point.
Volumetric throughput on a vibrating pan is dictated by stroke length, operating frequency, and pan slope. A slight downward slope significantly increases capacity. However, vibrating conveyors struggle with steep inclines and sticky, wet materials. They are best deployed in horizontal or slightly declined orientations for dry, hot applications.

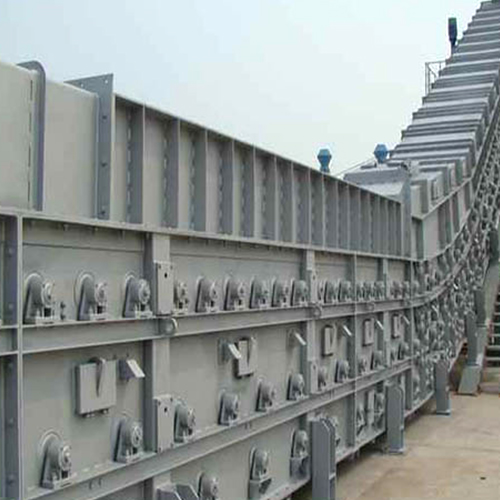

When handling massive, uncrushed slag chunks, steel pan or apron conveyors are the optimal choice. These heavy-duty systems use overlapping steel plates bolted to heavy roller chains. They can absorb massive impact loads from direct dumping out of loaders or primary crushers.
Pan geometry directly impacts the cross-sectional load area. Deeper pans with high side wings allow for a larger volume of material per linear foot. The overlapping design prevents fine, abrasive material from leaking through the conveying surface and fouling the chains and sprockets below. A well-designed High-Performance Reliable Slag Conveyor using apron technology provides maximum reliability for heavy, sharp lumps.
Rubber-belt conveyors offer high-capacity transport over long distances, but they have strict application limits for slag. The material must be sufficiently cooled or granulated. Handling hot slag requires specialized heat-resistant carcasses and covers, typically rated for intermittent peaks up to 400°F (204°C). Anything hotter will vulcanize the belt to the idlers.
Standard troughing angles optimize cross-sectional volume for lighter, granulated slag. Using 35° or 45° idlers creates a deep trough, maximizing the load area. However, steep troughing angles can cause stiff, heat-resistant belts to crack along the hinge points. You must balance the troughing angle with the belt's minimum flexibility requirements to achieve the desired throughput without destroying the belt.
The foundation of sizing is converting mass flow into volumetric flow. Equipment moves volume, not weight. You must determine exactly how many cubic feet per hour the system needs to process before selecting any physical dimensions.
Use the core conversion formula: Volumetric Flow (ft³/hr) = Mass Flow Rate (tons/hr) × 2,000 / Bulk Density (lbs/ft³). When performing this calculation, include variables for aeration, water retention, and moisture-induced expansion. Wet slag takes up more physical space than dry slag of the same dry mass. Always use the lowest expected bulk density to determine the maximum required volume.
Material Type | Typical Bulk Density (lbs/ft³) | Abrasiveness Level | Recommended Max Speed (FPM) |
|---|---|---|---|
Dry Boiler Ash | 40 - 60 | Moderate | 50 |
Wet Bottom Slag | 70 - 90 | High | 40 |
Metallurgical Steel Slag | 110 - 130+ | Extreme | 30 |
Once you have the volumetric flow rate, calculate the cross-sectional area of the material profile. This requires using standard equations provided by organizations like CEMA (Conveyor Equipment Manufacturers Association). The area is defined by the width of the conveying surface and the dynamic angle of surcharge.
Edge clearance, or freeboard, prevents spillage. You cannot fill a pan or flight to the absolute brim. We recommend a maximum 75% cross-sectional fill rate for drag chains and apron feeders. This 25% buffer ensures that material surges do not spill over the sides, which would cause severe mechanical damage to rails and chains.
With the required volume and cross-sectional area established, you can determine the operating speed. The formula is: Required Speed (ft/min) = Volumetric Flow (ft³/hr) / [Cross-Sectional Area (ft²) × 60].
For highly abrasive materials, you must cap the speed at 30 to 50 FPM (feet per minute). Running faster causes unacceptable wear rates on the steel components. To meet throughput at these low speeds, you must specify wider pans or flights. Furthermore, integrate the Lump Size Rule. To prevent mechanical jamming, specify a minimum width of at least 3 times the maximum lump size for sized material, or 4 times for unsized material. This physical constraint often overrides volumetric calculations.
Incline angles significantly reduce effective volumetric capacity. As the angle increases, material tends to slip backward, reducing the cross-sectional area that can be effectively moved forward. A 15° incline will handle less volume than a horizontal setup using the exact same dimensions.
The relationship between the slag's dynamic angle of repose and the incline angle dictates success. If the incline approaches the dynamic angle of repose, rollback occurs. For steep inclines, you must integrate cleats or deeper flights to prevent slippage. Always apply a derating factor to your volumetric calculations based on the specific degree of incline.
Determine the base horizontal capacity using the cross-sectional area.
Identify the dynamic angle of surcharge for the specific slag type.
Apply a 10% capacity reduction for inclines up to 10 degrees.
Apply a 25% capacity reduction for inclines between 10 and 20 degrees.
Redesign flight geometry for any incline exceeding 20 degrees to prevent total rollback.
Calculating required horsepower (HP) is complex. You must factor in empty friction, material load, lift (elevation change), and mechanical efficiency losses. The motor must have enough power to move the dead weight of the heavy-duty components plus the maximum potential material load up the specified incline.
Do not ignore parasitic loads. Skirtboard friction, scraper drag, and seal resistance consume significant horsepower. Furthermore, you need high starting torque. If the system stops while fully loaded, the slag can settle and interlock. Overcoming this static friction requires NEMA Design C or D motors, or robust hydraulic drives, to prevent motor stalling during a restart under load.
Throughput requirements dictate structural integrity. Moving high volumes of abrasive slag requires heavy-duty metallurgy. You should specify AR400 or AR500 steel liners for high-wear areas along the trough. Chains should be forged manganese steel, and pans should be cast alloy or heavy-duty formed steel to resist impact and abrasion.
Integrating these heavier wear components impacts the total dead load of the system. This increased weight affects structural deflection limits and necessitates larger support steel. The heavier dead load also feeds back into the motor sizing calculations, requiring more horsepower simply to move the empty equipment before any material is introduced.
Handling hot slag requires engineered tolerances for thermal expansion. Metal expands predictably when heated. If a 100-foot casing expands by two inches, and the internal chains expand by three inches, the system will bind if not properly designed.
You must incorporate expansion joints in the casing and allow for slack in the chain take-up assemblies. Pans must have sufficient clearance to expand without buckling against each other. Failing to engineer these thermal tolerances directly affects continuous throughput reliability, leading to catastrophic mechanical failures when the system reaches operating temperature.
Specifying material handling equipment involves a constant battle between initial costs and long-term operating expenses. A narrower, faster system costs less upfront. However, when handling abrasive slag, high speeds destroy wear components rapidly. This leads to frequent downtime, expensive replacement parts, and high maintenance labor costs.
The optimal financial trade-off is specifying a wider, slower system. This increases initial CapEx due to larger structural components and heavier drives. However, it drastically reduces OpEx by extending the lifecycle of wear parts and ensuring continuous, uninterrupted plant operation. The payback period for the heavier equipment is usually very short when factoring in avoided downtime.
Real-world retrofitting often presents spatial limitations that restrict ideal equipment width. When replacing an old system, you may be forced into a narrow footprint between existing columns or tanks. This constraint forces engineers to consider higher speeds or steeper inclines to meet throughput demands.
To maintain throughput in tight footprints without relying on excessive speed, you must utilize engineering workarounds. This includes designing deeper pans to increase cross-sectional area vertically. You can also use specialized flight geometries or cleated profiles to maximize the volume carried per linear foot, compensating for the lack of available width.
Upstream equipment like crushers or furnaces rarely discharge material evenly. They dump material in unpredictable, massive batches. This surge loading can instantly overwhelm a system designed only for average flow, causing the drive to stall or the chain to snap under the sudden tension.
Mitigate this risk by integrating variable frequency drives (VFDs) to adjust speeds dynamically based on load sensors. More importantly, size the drive train and structural components for 150% of the nominal load. This mechanical buffer ensures the system can power through sudden surges without failure.
Underestimating the weight of water-quenched slag is a frequent engineering error. Water fills the voids between slag particles, drastically increasing the bulk density. If you calculate horsepower based on dry weight, the motor will burn out when handling saturated material.
Always size structural and drive components based on the maximum saturated bulk density. Assume the material will retain the maximum possible amount of water. It is far better to have excess horsepower during dry runs than insufficient power during wet operations.
Large, irregular slag pieces tend to bridge across feed chutes or pan transitions. When multiple large lumps interlock, they create a physical blockage that stops flow entirely, even if the equipment below is running perfectly.
Design transition chutes with expanding cross-sections to prevent interlocking. The chute should be wider at the bottom than at the top. Additionally, install heavy-duty grizzly screens or primary breakers upstream to ensure no lumps enter the system that exceed the maximum allowable dimensions for your specific Slag Conveyor.
Calculate your maximum volumetric flow rate using the lowest expected bulk density to establish a baseline.
Specify equipment width based on the 3x to 4x lump size rule to prevent mechanical bridging.
Cap operating speeds at 50 FPM to minimize abrasive wear on steel components.
Size the motor and drive train for 150% of the nominal load to handle unpredictable material surges.
A: Slag is significantly denser, hotter, and more abrasive than coal. Standard formulas do not account for the extreme wear rates or thermal expansion, leading to rapid equipment failure if applied directly to slag handling.
A: Moisture increases the bulk density and changes the flowability of slag. Wet slag is heavier and stickier, requiring more horsepower to move and reducing the effective cross-sectional area due to material buildup on components.
A: To minimize abrasive wear on chains, pans, and liners, operating speeds should generally be capped between 30 and 50 feet per minute (FPM). Higher speeds exponentially increase the degradation of wear parts.
A: Apply the lump size rule: the conveying surface width must be at least 3 to 4 times the size of the largest expected lump. You should also use expanding transition chutes and upstream grizzly screens.
A: These motors provide high starting torque. If the system shuts down while fully loaded, the slag settles and interlocks. High starting torque is required to overcome this massive static friction without stalling.
A: You should engineer a minimum 20% to 30% surge capacity buffer into the volumetric calculations and size the drive train for 150% of the nominal load to handle unpredictable batch discharges from upstream equipment.
