Industrial boiler, incinerator, and metallurgical furnace systems face severe bottlenecks from unmanaged bottom ash and high-temperature slag. Large clinkers and fused ash damage equipment, block discharge chutes, and cause unplanned downtime. Deploying sub-optimal crushing equipment leads to rapid wear-part degradation from abrasive silica, frequent jamming from tramp metals, and inconsistent output sizes. These issues disrupt pneumatic, hydraulic, or mechanical ash-handling conveying systems. Understanding the specific mechanical action of a single-roller slag crusher is the prerequisite for evaluating its viability. You must determine if it meets plant-specific throughput and temperature requirements while handling abrasive materials.
Mechanical Simplicity: Single-roller crushers utilize a combination of shear and compression forces against a stationary breaker plate, minimizing moving parts and reducing critical failure points.
Thermal and Moisture Resilience: High-engineered units are built to withstand both quenching water environments and high-temperature slag direct from the furnace without thermal cracking.
Tramp Iron Resilience: Modern units incorporate spring-loaded or hydraulic relief mechanisms to pass uncrushable metals without catastrophic internal damage.
Evaluation Criteria: Procurement decisions must weigh initial CapEx against long-term OpEx, focusing heavily on wear-part metallurgy, ease of access for maintenance, and energy efficiency per ton of processed material.

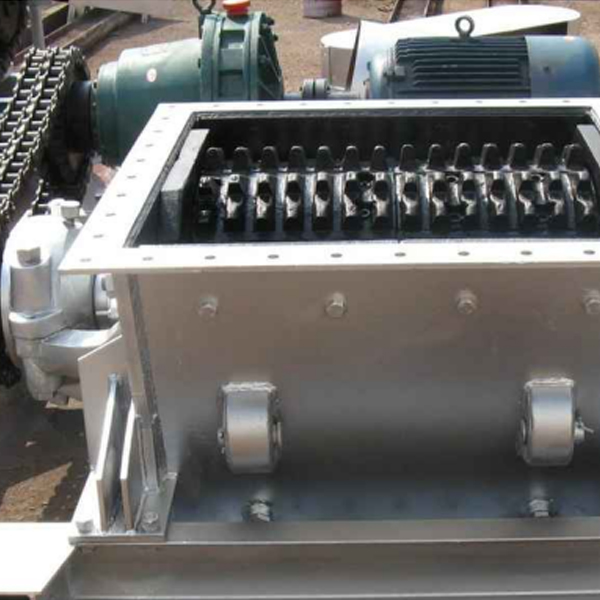

The fundamental physics of a single-roller crushing process rely on a continuous combination of compression and shear forces. As material enters the feed chute, the rotating toothed drum grabs the incoming slag. It pulls the material into a wedge-shaped crushing chamber formed by the roller and a stationary anvil plate. The reduction happens in two distinct phases. First, the teeth impact the material, fracturing larger clinkers. Second, the material is dragged downward. Here it is subjected to intense compression and shear against the breaker plate until it is small enough to pass through the discharge gap.
The efficiency of this process is heavily dictated by the bite angle. The bite angle is the angle formed between the surface of the roller and the breaker plate at the point of initial material contact. A properly engineered bite angle ensures the roller grabs the material rather than letting it bounce on top of the rotor. Consequently, the rotor diameter directly limits the maximum feed size of clinkers. A larger diameter provides a more favorable bite angle for oversized chunks. Plant operators must match the rotor diameter to the largest expected clinker size to prevent bridging above the crushing zone.
The reliability of the equipment depends on its primary structural components. The heavy-duty rotor shaft forms the core. It supports replaceable crushing segments such as teeth or picks. These segments perform the actual work and endure the highest abrasion. Opposite the rotor sits the adjustable breaker plate. This acts as the stationary crushing surface. Adjusting the distance between the roller and this plate dictates the final product size.
Driving this massive assembly requires a specialized power transmission system. The drive mechanics typically involve a high-torque, low-speed motor paired with a heavy-duty gearbox or fluid coupling. Fluid couplings are particularly valuable. They absorb shock loads when the teeth strike exceptionally hard clinkers, protecting the motor from sudden stalling. Additionally, structural side liners, often called cheek plates, are bolted inside the crushing chamber. These liners protect the outer housing from lateral wear caused by abrasive material grinding against the side walls during the reduction process.
Processing material directly from a combustion chamber means dealing with extreme heat. A High-Efficient Strong Slag Crusher is specifically engineered to handle red-hot slag reaching temperatures up to 1000°C. Without proper thermal management, the structural integrity of the rotor and housing would rapidly degrade. This leads to catastrophic failure.
To prevent thermal deformation, these crushers utilize advanced water-cooling systems. Water-cooled rotor shafts feature internal channels. These circulate cooling fluid through the core of the rotating assembly, dissipating heat absorbed by the crushing teeth. The outer housing often employs a double-walled water-jacketed design, creating a continuous thermal barrier. Furthermore, specialized high-temperature bearings are isolated from the direct heat zone. They utilize synthetic, high-temperature lubricants to maintain operational stability under severe thermal stress.
Many industrial processes utilize submerged drag chain conveyors where bottom ash is quenched in water. This results in a wet, sticky material. Traditional jaw or cone crushers struggle with this consistency. The wet ash packs into the crushing cavities, causing blinding and eventual blockage. The single-roller design inherently prevents this material build-up. The continuous sweeping motion of the toothed roller against the breaker plate acts as a self-cleaning mechanism. It scrapes sticky residue downward and forces it through the discharge gap without allowing it to accumulate.
Downstream equipment, such as slurry pumps, pneumatic conveying lines, and mechanical conveyors, require a specific maximum particle size. This allows them to function without clogging or excessive wear. The single-roller configuration excels at providing a uniform particle size distribution. The fixed, yet adjustable, gap between the roller and the breaker plate establishes a strict physical limit on the material size. Any clinker larger than the gap setting remains in the crushing chamber until it is reduced sufficiently. This ensures that downstream systems are protected from oversized debris.
Slag reduction generates highly abrasive fines and dust. These can easily penetrate mechanical clearances and destroy bearings. Effective sealing technology is mandatory for equipment longevity. Manufacturers utilize multiple layers of defense to protect the shaft bearings. Heavy-duty packing seals provide the first physical barrier. Labyrinth seals create a tortuous path that prevents dust migration. For the most demanding environments, pressurized air-purge sealing systems are implemented. These systems inject continuous positive air pressure into the seal cavity, actively blowing abrasive particles away from the bearing housing.
Comparison of Sealing Technologies | ||
Seal Type | Primary Function | Best Application Environment |
|---|---|---|
Packing Seals | Physical barrier against large particles | Low-dust, standard moisture environments |
Labyrinth Seals | Tortuous path to block fine dust migration | High-dust, dry ash handling systems |
Air-Purge Seals | Positive pressure to repel all contaminants | Extreme abrasion, high-temperature, fine dust |
Evaluating power efficiency is a necessary step in selecting the right equipment. Engineers must analyze the kilowatt-hour (kWh) required per ton of processed material. An optimized High-Efficient Strong Slag Crusher balances rotor inertia with aggressive tooth geometry to maximize throughput. High rotor inertia helps carry the crushing teeth through dense clinker surges without requiring massive power spikes from the motor. This mechanical momentum smooths out the electrical load. It reduces overall energy consumption while maintaining consistent capacity.
The operational lifespan of a crusher is heavily dependent on the metallurgy of its wear components. Success criteria for wear parts require strict specifications on materials. Options include manganese steel, high-chrome alloys, or tungsten carbide overlays. The abrasiveness index of the specific plant's slag must dictate the chosen alloy. This is determined by its silica content and Hardgrove Grindability Index. High-silica slag requires extreme abrasion resistance, making tungsten carbide overlays highly effective.
When evaluating the rotor design, consider the difference between segmented roller rings and solid-cast rollers. Segmented designs allow maintenance teams to perform targeted tooth replacement. You swap out only the worn sections rather than replacing the entire roller assembly. This significantly reduces maintenance downtime and spare parts inventory.
Retrofitting new crushing equipment into an existing plant layout requires careful dimensional and structural planning. The equipment must fit under existing hoppers, dry ash systems, or submerged drag chain conveyors. Low-profile designs are often necessary to accommodate tight vertical clearances between the boiler discharge and the conveying system. Custom transition chutes are equally important. They must be engineered to guide the material smoothly into the crushing chamber without creating dead zones where material can bridge or hang up.
Measure the exact vertical clearance between the boiler discharge flange and the conveyor inlet.
Assess the structural load-bearing capacity of the existing steel framework.
Design custom transition chutes with a minimum 60-degree slope to prevent material hang-up.
Install flexible expansion joints to isolate crusher vibration from the boiler casing.
When comparing single-roller and double-roller technologies, each offers distinct mechanical advantages. The single-roller configuration provides a larger feed acceptance area. This allows it to ingest massive clinkers that would bridge across a double-roller setup. It also offers superior handling of tramp iron and features a simpler sealing arrangement due to having only one rotating shaft. Conversely, double-roller units pull material between two counter-rotating drums. This provides a finer, more tightly controlled output size. However, this comes at the cost of higher maintenance complexity, double the bearings and seals, and a higher susceptibility to material bridging above the crushing zone.
High-velocity impact crushers, such as hammer mills, are generally unsuitable for bottom ash and slag applications. Hammer mills rely on high rotor speeds to shatter material. This causes rapid, severe wear on the hammers when processing highly abrasive silica-rich slag. Furthermore, in high-moisture environments, the wet ash quickly packs into the hammer mill grates. This causes severe plugging and stalling. The low-speed, high-torque shearing action of a single-roller unit avoids these pitfalls entirely.
Financial evaluation requires looking beyond the initial purchase price. Single-roller designs often present a moderate CapEx but deliver significantly lower OpEx over the equipment's lifespan. The reduction in OpEx stems directly from the mechanical simplicity of the design. With fewer bearings, fewer seals, and no synchronized dual-drives requiring constant alignment and maintenance, the ongoing labor and replacement parts costs remain highly manageable compared to more complex crushing alternatives.
The most common failure mode in any ash crushing application is tramp metal entering the chamber. Boiler tubes, refractory anchors, and broken grate bars frequently fall into the ash stream. To prevent catastrophic damage, single-roller units utilize mechanical mitigation strategies. Spring-loaded breaker plates or hydraulic release cylinders allow the stationary anvil to yield and retract when an uncrushable object is encountered. The tramp metal passes through the widened gap, and the plate automatically resets to its original position.
Advanced systems integrate PLC-controlled auto-reverse functionality. When the motor detects a sudden torque spike indicating a jam, the PLC immediately stops the rotor. It reverses the rotor to clear the throat, and then re-engages in the forward direction to resume crushing. This automated sequence drastically reduces manual intervention and downtime.
Maintaining peak crushing efficiency requires adherence to realistic maintenance schedules and regular inspection intervals. Wear parts will degrade, and planning for their replacement is mandatory. Maintenance-friendly design features are critical for minimizing process interruptions. Look for equipment featuring hydraulically opening housings, split-bearing housings, or roll-out track systems. These features allow maintenance teams to access the crushing chamber, inspect the anvil plate, and replace worn teeth safely and efficiently without removing the entire Slag Crusher from the active process line.
Recommended Maintenance Schedule | ||
Component | Inspection Interval | Action Required |
|---|---|---|
Rotor Teeth | Weekly | Check for hard-facing wear and missing segments. |
Breaker Plate | Monthly | Measure gap setting and adjust for wear compensation. |
Main Bearings | Daily | Monitor temperature and apply high-temp grease. |
Tramp Iron Release | Quarterly | Test hydraulic pressure or spring tension release. |
The single-roller configuration stands as the optimal choice for facilities prioritizing high reliability, low maintenance complexity, and thermal resilience. Its ability to process difficult, abrasive, or wet ash without plugging makes it a critical asset for continuous industrial operations.
Shortlist vendors based on the proven metallurgical quality of their wear parts and the robustness of their tramp iron relief systems.
Initiate a material testing phase with shortlisted manufacturers to analyze your specific slag chemistry, including abrasiveness, hardness, and melting points.
Use the material testing data to determine the exact motor sizing, torque requirements, and tooth profile necessary for your application.
Require custom-engineered mounting solutions and transition chutes to guarantee seamless integration with your existing conveying systems.
A: Standard industry units typically handle lumps ranging from 500mm to 1000mm. The exact limit depends heavily on the rotor diameter, which dictates the bite angle. A larger rotor creates a more favorable angle, allowing the teeth to grab and pull oversized clinkers into the crushing chamber without them bouncing on top.
A: It utilizes a combination of automated electrical reverse cycles and mechanical relief mechanisms. If tramp metal enters, hydraulic cylinders or heavy-duty springs allow the anvil plate to yield and widen the gap. The metal passes through, and the plate automatically returns to its set position, preventing internal damage.
A: Lifespan varies heavily based on the slag's silica content and total operational hours. In highly abrasive environments, teeth may last several months, while less abrasive applications can see lifespans exceeding a year. Utilizing hard-faced alloys like tungsten carbide significantly extends replacement intervals.
A: Yes. The continuous wiping and shearing action of the rotating teeth against the stationary breaker plate makes it highly resistant to plugging. It effectively scrapes wet, sticky bottom ash through the discharge gap, outperforming jaw or cone crushers in high-moisture applications.
A: Output size is controlled by adjusting the Closed Side Setting (CSS), which is the gap between the stationary breaker plate and the rotating drum. This adjustment is typically performed using mechanical shims, threaded adjustment rods, or hydraulic cylinders mounted behind the breaker plate.
A: Routine tasks include greasing the main shaft bearings, inspecting the crushing teeth and breaker plate for wear, checking gearbox oil levels, testing the tramp iron release mechanism, and verifying that the seal air pressure remains constant if the unit utilizes air-purged bearing seals.
