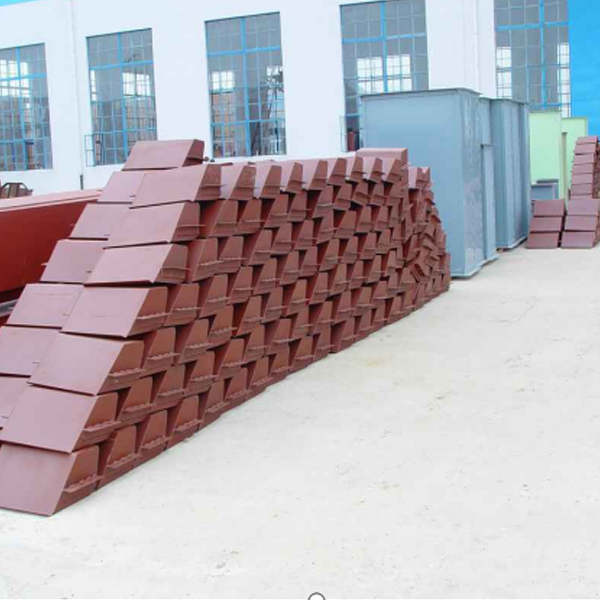

Industrial boilers discharge bottom ash and slag at extreme temperatures. This material is highly abrasive and flows at irregular rates. Feeding raw, unconditioned slag directly into a conveyance system causes rapid mechanical degradation. It triggers severe thermal shock and leads to frequent unplanned downtime. These failures drive up maintenance costs and create massive operational bottlenecks on the plant floor.
You cannot treat the transition zone as an afterthought. An ash hopper is not merely a collection bin. It operates as a critical engineered buffer. It regulates volumetric flow and manages thermal extremes. This buffer ensures the continuous, efficient operation of the downstream slag conveyor. By conditioning the material before it hits the moving flights and chains, the hopper acts as the primary mechanical defense for your entire material handling infrastructure. Proper integration stops conveyor jamming and extends equipment life.
Volumetric Buffering: Ash hoppers absorb boiler discharge surges, providing a metered, consistent feed rate that prevents slag conveyor overloading and jamming.
Thermal Conditioning: Whether utilizing wet quenching or dry radiant cooling, hoppers reduce material temperatures to protect conveyor components from thermal deformation.
Wear Reduction: An industrial wear-resistant slag ash hopper absorbs the primary impact of falling slag, significantly extending the lifecycle of conveyor flights, chains, and belts.
System Integration: Upgrading or retrofitting a hopper requires precise alignment with boiler output capacity and the specific mechanical limits of the downstream deslagger or conveyor.
Boiler load fluctuations cause highly irregular ash discharge. During peak operation, large chunks of slag break off the boiler tubes and fall rapidly. The hopper acts as an accumulator. It absorbs these sudden surges and manages material bridging. Instead of large, unpredictable batches dropping directly onto the transport mechanism, the hopper holds the volume. It then dispenses the material steadily through a controlled discharge gate.
This transition from batch dropping to continuous, metered feeding prevents severe mechanical strain on the drive motors. Historically, power plants relied on hydraulic sluice systems to move this material. The industry shift to mechanical drag conveyors highlights how modern hopper design serves as the essential mechanical interface. It ensures the downstream equipment receives a manageable, consistent load. Without this regulation, shear pins break and drive chains snap under the sudden weight of unmetered slag.
Operators must monitor the discharge rate closely. A well-designed hopper includes level sensors and automated gate valves. These components communicate with the conveyor's variable frequency drive (VFD). When the hopper detects a massive slag fall, it restricts the gate opening. This prevents the conveyor from stalling. We see this constantly in older plants where manual gates fail to react fast enough to boiler surges.
Feeding Method | Impact on Conveyor Drive | Material Flow Characteristic | Jamming Risk |
|---|---|---|---|
Direct Batch Dropping | High strain, frequent motor trips | Irregular, massive surges | Extremely High |
Metered Hopper Feeding | Low strain, continuous operation | Regulated, consistent volume | Low |
Hydraulic Sluicing | N/A (Pump driven) | Slurry mixture | Moderate (Pipe clogging) |
Falling bottom ash and large clinkers carry significant kinetic energy. A fifty-pound clinker dropping from the boiler throat acts like a wrecking ball. When this material drops directly onto a moving belt or chain, the impact causes immediate structural damage. The hopper geometry dissipates this energy before the material reaches the conveyor bed.
Engineers design hoppers with specific angles of repose. They install heavy-duty impact plates at the primary strike zones. These plates take the initial hit. By slowing the material and absorbing the kinetic force, the hopper prevents the shockwave from transferring to the conveyor flights. This structural protection is vital for maintaining the integrity of the chains over long operational periods.
Calculate the maximum drop height from the boiler throat to the hopper impact zone.
Determine the average mass and terminal velocity of the largest expected clinkers.
Select impact plate materials capable of absorbing the calculated kinetic energy without fracturing.
Angle the hopper walls to create a sliding motion rather than a direct vertical drop.
Install replaceable wear liners at the identified high-impact zones.
Wet hoppers utilize water impoundment to instantly quench hot bottom ash. Slag exits the boiler at temperatures exceeding 1,500 degrees Fahrenheit. The water bath cools this material rapidly. This rapid cooling prevents thermal damage to downstream equipment. Managing the water level inside the hopper is an absolute requirement. The water protects the internal refractory linings from the intense radiant heat emitted by the boiler hearth.
These systems often integrate with submerged scraper conveyors or submerged flight conveyors (SFC). The water trough provides a critical boiler seal. It prevents outside air from entering the boiler and disrupting the combustion process. Simultaneously, it cools the slag to a manageable temperature. Operators must balance the reduced thermal stress on the equipment against the necessity of managing water wastage.
Wastewater treatment adds a layer of complexity. The quench water becomes highly alkaline and picks up heavy metals from the ash. Plants must pump this water to settling ponds or chemical treatment facilities. You cannot simply discharge it. Maintaining the pumps, valves, and piping for the quench water system requires dedicated maintenance hours. If the water level drops too low, the boiler seal breaks, and the refractory lining cracks under the sudden heat exposure.
Dry deslaggers operate without a quenching volume of water. Instead, dry hoppers rely on controlled ambient air cooling and specialized refractory linings to manage radiant heat. This approach eliminates the need for complex water treatment facilities. It removes the pumps, piping, and settling ponds from the maintenance schedule.
The economic benefits of dry systems include lower environmental compliance costs. They also enhance the viability of recycling metal slag. Dry ash is easier to sell to the cement industry. However, these systems require highly specialized, heat-resistant metallurgy for the conveyor components. The material remains at higher temperatures compared to wet quenching methods.
You must engineer the dry hopper to maximize airflow. Some designs incorporate cooling fans that force ambient air across the falling ash. The refractory lining must withstand continuous high temperatures without the buffering effect of water. If the refractory fails, the steel hopper shell will warp and eventually burn through. We recommend inspecting dry hopper linings during every major boiler outage.
System Type | Cooling Mechanism | Environmental Impact | Conveyor Metallurgy Requirement |
|---|---|---|---|
Wet Hopper | Water Quenching | High (Wastewater treatment needed) | Standard carbon or stainless steel |
Dry Hopper | Ambient Air / Radiant Cooling | Low (No wastewater) | High-temperature alloy steel |
The material science behind wear-resistant hoppers dictates their lifespan. Standard carbon steel will not survive the abrasive nature of bottom ash. You must use components like chromium carbide overlay plates, specialized refractory brick, and basalt linings. These materials are engineered to withstand extreme abrasion. They also handle the thermal shock caused by rapid cooling cycles, particularly in wet systems.
An Industrial Wear-Resistant Slag Ash Hopper isolates the most abrasive impact zones. By taking the brunt of the wear, the hopper preserves the structural integrity of the equipment below. You replace the hopper liners, not the entire conveyor chain. This modular approach to wear management saves thousands of dollars in replacement parts and labor.
When installing wear liners, pay attention to the fastening methods. Weld-on plates often suffer from heat-affected zone cracking. Bolt-on liners allow for faster replacement during tight outage windows. We always specify countersunk bolts for wear liners to prevent the bolt heads from shearing off under the flow of abrasive slag. If a liner falls off, the underlying shell will erode in a matter of days.
Large, fused ash formations pose a severe threat to moving parts. We call these clinkers. They form when molten ash cools too slowly and fuses together. Integrating clinker grinders or crushers at the hopper discharge point mitigates this risk. The grinder breaks the large chunks into manageable pieces before they hit the conveyor.
Sizing the slag as it passes through the hopper ensures that oversized pieces do not jam the flights. A jammed flight will snap a drive chain or tear a rubber belt. The grinder acts as a physical gatekeeper. If a clinker is too hard to crush, the grinder's auto-reverse function will attempt to dislodge it. If it fails, the system triggers an alarm, allowing operators to manually clear the blockage before it damages the downstream equipment.
Install dual-roll clinker grinders at the hopper throat.
Wire the grinder motors to auto-reverse upon detecting high torque loads.
Size the grinder teeth to match the maximum allowable lump size for the conveyor.
Perform weekly visual inspections of the grinder teeth for excessive wear or missing carbide tips.
Evaluating current system bottlenecks requires hard data. You must analyze the frequency of chain failures, thermal warping incidents, and total maintenance downtime. Look at your work orders over the past two years. A successful hopper integration is measured by achieving a consistent feed rate in tons per hour. It must hit specific temperature reduction targets before the ash reaches the conveyor.
The system must maintain alignment with the boiler's continuous maximum rating (CMR). If the boiler runs at 100% capacity, the hopper and conveyor must handle that volume without backing up. A bottleneck at the hopper will force you to derate the boiler, costing the plant megawatt-hours and revenue. We define success as zero boiler derates caused by bottom ash handling limitations.
You also need to measure the reduction in maintenance man-hours. A properly integrated system requires less manual intervention. Operators should not have to manually poke clinkers or hose down overheated drives. Track the time spent on these reactive tasks before and after the upgrade to prove the return on investment.
Calculating the required hopper volume depends on the boiler's ash production rates. You must also know the maximum volumetric capacity of the transport system. Future-proofing the installation involves ensuring both the hopper and the conveyor can handle changes in fuel type. Switching coal grades or introducing biomass blends will alter ash characteristics and volume.
Determine the worst-case ash production rate based on the lowest quality fuel the plant might burn.
Calculate the bulk density of the specific ash type.
Determine the required retention time in the hopper to achieve the target discharge temperature.
Multiply the production rate by the retention time to find the minimum active hopper volume.
Add a 20% safety margin to the volume to account for unexpected boiler surges.
Verify that the conveyor's maximum extraction rate exceeds the boiler's maximum production rate.
Biomass blends often produce a lighter, fluffier ash that takes up more volume per ton. If you size the hopper based purely on heavy coal slag, a switch to biomass will cause the hopper to overflow. Always design for the highest volume scenario, not just the heaviest weight scenario.
Replacing outdated hydraulic sluice systems with modern hopper and SFC combinations presents significant spatial constraints. Legacy plants were not designed with large mechanical conveyors in mind. The space beneath the boiler is usually cramped, filled with structural steel, piping, and electrical conduits. Technical lessons learned from historic conversions emphasize the critical need for structural reinforcement.
Engineering requirements often dictate modifying structural steel supports. You must adjust the boiler seal interface to accommodate the new loading dynamics. The new hopper will weigh significantly more than the old sluice trench, especially when filled with water and ash. You must reinforce the concrete foundations and steel columns to handle this dead load and the dynamic load of falling slag.
Maintaining the boiler seal during the transition is difficult. The seal plates must flex with the thermal expansion of the boiler while remaining airtight. If the seal fails, tramp air enters the furnace, destroying combustion efficiency and potentially causing slagging on the upper boiler tubes. We use flexible stainless steel expansion joints to connect the rigid hopper to the expanding boiler throat.
The hopper itself requires maintenance. You will need to perform refractory patching and replace wear liners. To mitigate installation downtime, plants must employ phased implementation strategies. You cannot shut down a baseload unit for three months to install a new ash handling system. The work must happen during scheduled outages.
Accurate 3D spatial modeling prior to fabrication is essential. Laser scan the entire area beneath the boiler. Use this point cloud data to design the hopper and conveyor. This ensures the components fit the existing footprint without extensive on-site modifications. Field welding and cutting add days to an outage schedule. Prefabricate as much of the hopper as possible and bolt it together on-site.
Plan your rigging paths carefully. Moving a ten-ton hopper section into a congested boiler basement requires precise crane work and heavy-duty skates. Identify all piping and cable trays that need temporary relocation before the outage begins. A well-planned rigging strategy cuts installation time in half.
A transport system is only as reliable as the material feed it receives. An optimized ash hopper is a non-negotiable prerequisite for system longevity. It serves as the primary defense against thermal and mechanical stress. By regulating flow and absorbing impact, the hopper ensures your downstream equipment survives the harsh realities of bottom ash handling.
Initiate a comprehensive ash characterization study to determine bulk density and abrasiveness.
Conduct a structural audit of the current boiler transition zone using 3D laser scanning.
Define clear metrics for flow regulation and temperature reduction to guide the engineering design.
Prioritize vendors who engineer the hopper and the transport mechanism as a unified system.
A: It acts as a volumetric buffer. The hopper captures irregular surges of bottom ash from the boiler. It then dispenses the material at a regulated, continuous rate that matches the conveyor's design capacity, preventing mechanical jams and motor overloads.
A: Wet feeding uses a water-filled hopper to quench slag rapidly, feeding into a submerged flight conveyor. Dry feeding relies on ambient air and specialized refractory linings to cool the ash, eliminating the need for wastewater management and treatment facilities.
A: Bottom ash and slag are highly abrasive and drop at extreme temperatures. Wear-resistant linings absorb the kinetic impact and severe abrasion. This prevents premature failure of the steel hopper shell and protects the moving conveyor components below.
A: While some low-profile systems feed directly into the water trough, a transition hopper is typically required. It provides the necessary boiler seal, manages intense radiant heat, and directs the flow of material accurately into the conveyor path.
A: Sizing requires calculating the boiler's maximum ash production rate and the bulk density of the slag. You must also determine the required retention time for cooling and ensure it aligns with the maximum extraction rate of the existing conveyor.
A: Indicators include frequent conveyor motor faults due to sudden material surges. You will also see thermal warping of conveyor flights, rapid wear on drive chains, and the presence of oversized clinkers bypassing the discharge gate.
A: Maintaining the correct water level ensures the hopper's upper refractory lining is shielded from the intense, direct radiant heat coming from the boiler hearth. It also prevents severe thermal shock during sudden, massive ash drops.
