Handling industrial slag presents one of the most extreme material handling challenges in manufacturing. Systems must withstand severe abrasion, heavy bulk densities, and temperatures frequently exceeding 1,000°C. Relying on inadequate material handling equipment for furnace slag, ore slag, or ash leads to catastrophic component failure, unplanned facility downtime, severe safety hazards, and inflated maintenance budgets. Selecting a High-Performance Reliable Slag Conveyor requires a rigorous understanding of operational mechanics, cooling methodologies (wet vs. dry), and structural configurations. This guide breaks down how slag conveyors work and provides an engineering-focused framework for evaluating the right system for your facility. We examine the thermal dynamics of slag cooling, the mechanical forces at play during transport, and the structural requirements for long-term reliability in harsh industrial environments.
Slag conveyors are specialized bulk material handling systems designed to cool, transport, and discharge sharp-edged, heavy, and extremely hot industrial byproducts.
The primary operational divergence lies between Wet Slag Conveyors (utilizing water baths for rapid quenching) and Dry Slag Conveyors (relying on ambient air cooling and offering heat recovery potential).
System selection must be dictated by specific facility constraints, including furnace output volume, spatial footprint, downstream processing needs (e.g., EAF re-melting), and environmental compliance requirements.
Understanding the operational mechanics of a slag conveyor begins at the intake zone. The initial phase involves molten or semi-solid slag discharging from a furnace, kiln, or ladle directly onto the conveyor intake. Immediate thermal management is required at this transfer point to prevent structural warping. The intake zone often utilizes reinforced impact plates and specialized cooling jackets to absorb the intense thermal shock and kinetic energy of falling slag chunks. Engineers must account for the specific heat capacity of the slag and the drop height to design an intake hopper that will not deform under continuous thermal and physical bombardment.
Once the material lands on the conveying medium, continuous transport mechanisms take over. These systems utilize kinetic principles to move the material forward while accommodating the continuous cooling and solidification of the slag. Depending on the design, this movement is achieved through controlled vibration, mechanical drag chains, or specialized high-temperature belting. The constant motion prevents the slag from fusing to the conveyor surface as it transitions from a molten state to a solid, manageable form. The speed of the conveyor is carefully calibrated to match the cooling rate of the material, ensuring that the slag is sufficiently solidified before it reaches the discharge point.
The structural integrity of a Slag Conveyor relies on several critical components working in unison. Each part must be engineered to handle specific stresses, from thermal expansion to abrasive wear.
Drive Unit and Tensioning System: Heavy-duty motors and gearboxes engineered for high torque and variable speeds handle sudden load surges. Tensioning systems keep belts or chains taut under extreme thermal expansion, compensating for the physical lengthening of metal components as they heat up.
Conveying Medium: Rugged steel pans, heavy-duty drag chains, or high-temperature wire mesh belts designed specifically for harsh, abrasive environments. The metallurgy of these components often includes high-alloy steels or specialized cast irons to resist wear.
Feed Hopper & Chute: Impact-resistant zones designed to withstand severe thermal shock and high physical impact from falling slag. These areas frequently feature replaceable wear liners made from abrasion-resistant materials like Hardox.
Discharge Zone: Outfitted with crushing rollers or grizzly screens to size the solidified slag before further handling or disposal. This ensures that downstream equipment is not jammed by oversized chunks of cooled slag.
The final stage involves discharge and downstream integration. Cooled, solidified slag is discharged into storage bins, disposal vehicles, or secondary transport systems. Bucket elevators often integrate at this stage to lift the processed material for recycling, re-melting, or final disposal, ensuring a continuous flow of material away from the primary furnace area. The transition points between the conveyor and downstream equipment must be carefully designed to prevent material spillage and control fugitive dust emissions.
Component | Primary Function | Common Materials / Specifications |
|---|---|---|
Drive Motor | Provides kinetic energy for material transport | High-torque, variable frequency drive (VFD) compatible |
Conveying Pans/Belts | Supports and moves the hot slag | High-alloy steel, Hardox 400/500, stainless steel mesh |
Wear Liners | Protects structural frame from abrasion | Cast basalt, ceramic tiles, abrasion-resistant steel plates |
Tensioning Assembly | Maintains chain/belt alignment during thermal expansion | Hydraulic or heavy-duty mechanical spring systems |
Wet slag conveyors integrate a water reservoir or submerged drag chain that rapidly quenches hot slag. As molten material hits the water bath, it undergoes immediate thermal shock, shattering into coarse-grained, manageable fragments. This process, known as granulation, changes the physical structure of the slag, making it easier to handle and process downstream. The water bath absorbs the immense heat energy from the slag, requiring a continuous flow of cooling water to maintain an effective quenching temperature.
Some modern systems utilize a submerged vibratory deslagger hybrid, combining a water bath reservoir directly with a vibratory feeder. This setup quenches the slag quickly while using micro-vibrations to move the material, significantly minimizing mechanical wear on the trough. The vibratory action also helps to agitate the water, improving heat transfer and preventing localized boiling that could disrupt the quenching process.
The primary advantages of wet systems include rapid temperature reduction and the immediate suppression of dust and particulate matter. The water acts as a natural dust control mechanism, capturing fine particles before they can become airborne. However, facilities must manage the burden of wastewater treatment, the generation of corrosive steam, and a higher potential for localized component corrosion over time. The steam generated during quenching can carry corrosive compounds from the slag, requiring specialized exhaust systems and corrosion-resistant materials in the surrounding infrastructure.
Dry slag cooling conveyors rely on ambient air, specialized cooling zones, and heavy-duty steel pans or belts to slowly cool the slag without water contact. Fans or natural drafts facilitate heat dissipation as the material travels along the conveyor path. The cooling process is gradual, which can affect the final crystalline structure of the slag, often resulting in a denser, harder material compared to water-quenched slag. Engineers must calculate the required residence time on the conveyor to ensure the slag reaches a safe handling temperature before discharge.
The primary advantages emphasize the elimination of water treatment facilities, reduced corrosion risks on mechanical parts, and the potential for thermal energy recovery systems that capture radiant heat for other plant processes. By avoiding water contact, dry systems eliminate the need for complex settling ponds, filtration systems, and environmental permits associated with wastewater discharge. Furthermore, the recovered heat can be used to preheat combustion air or generate steam, improving the overall energy efficiency of the plant.
The trade-offs involve a larger facility footprint, as longer conveying distances are needed to achieve adequate air cooling. The conveyor must be long enough to provide the necessary residence time for heat transfer to the surrounding air. Additionally, dry systems necessitate robust dust extraction systems to manage airborne particulates generated during the cooling and transport phases. Enclosed galleries and negative pressure dust collection systems are often required to maintain a safe and clean working environment.
Operational Metric | Wet Slag Conveyors | Dry Slag Conveyors |
|---|---|---|
Cooling Speed | Rapid (Immediate quenching) | Slow (Gradual air cooling) |
Dust Generation | Minimal (Suppressed by water) | High (Requires extraction systems) |
Footprint Required | Compact | Extensive (Longer travel distance needed) |
Energy Recovery | None | High potential (Radiant heat capture) |
Maintenance Focus | Corrosion control, water treatment | Dust management, thermal expansion |
Vibratory designs utilize eccentric drives or electromagnetic exciters to move heavy, bulky materials by tossing them forward in micro-movements. This configuration is ideal for extremely hot, abrasive materials. The micro-tossing action significantly reduces sliding friction, thereby extending the lifespan of the conveyor trough and minimizing abrasive wear. Because the material is momentarily airborne during each vibration cycle, the contact time between the hot slag and the metal trough is reduced, lowering the rate of heat transfer to the conveyor structure.
These systems are particularly effective for handling large, irregular chunks of slag that might jam mechanical drag chains. The trough can be constructed from thick, high-alloy steel plates designed to withstand severe impact and thermal shock. Vibratory conveyors also offer the advantage of having very few moving parts in direct contact with the material, simplifying maintenance and reducing the risk of mechanical failure in the harsh operating environment.

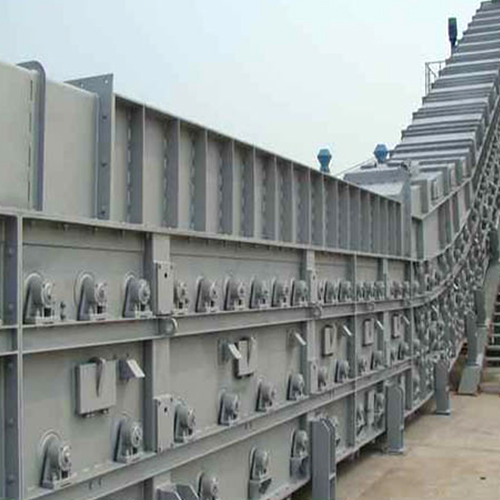

These systems utilize overlapping steel pans, high-alloy wire mesh belts, or heavy-duty drag chains moving through a trough. High-temperature steel belt systems feature armored steel belts capable of transporting hot slag mixed with briquetted iron directly to the Electric Arc Furnace (EAF) without thermal degradation. They are optimal for continuous conveying of coarse-grained, sharp-edged bulk materials over long distances or steep inclines.
Drag chain conveyors use robust forged chains with attached flight bars to drag the slag along the bottom of a wear-resistant trough. This design is highly effective for moving heavy loads and can be configured to operate at steep inclines, saving valuable floor space. However, the sliding action of the slag against the trough requires the use of easily replaceable wear liners to protect the main structural frame. The chains themselves must be manufactured from specialized alloys to maintain their tensile strength at elevated temperatures.
Standard rubber or PVC belt conveyors are designed with reinforced plies to resist puncture. These are strictly reserved for cold-stage handling. They transport completely cooled, processed slag from secondary storage areas to final disposal sites or recycling bins, offering high throughput for safe, cold materials. Using a standard rubber belt for hot slag would result in immediate catastrophic failure, as the material would melt through the belting.
When handling cooled slag, standard belt conveyors offer the most cost-effective method for moving large volumes of material over long distances. They can be equipped with specialized covers and skirting to control dust and prevent spillage. Maintenance focuses on monitoring belt tracking, inspecting idler rollers, and ensuring the integrity of the belt splices.
Specialized ladle slag systems are engineered to capture slag directly from foundry ladles. Often loaded via bucket elevators, they return material to the EAF for re-melting. This configuration is critical for steel mills and foundries requiring immediate transport of hot slag for rapid metal recovery and process efficiency. The design must accommodate the specific geometry of the ladles and the intermittent nature of the slag discharge.
These conveyors are typically heavily armored and designed for rapid, short-distance transport. They must withstand the intense radiant heat from the open ladles and the physical impact of large slag masses being dumped simultaneously. Integration with the plant's crane systems and ladle handling equipment is a critical engineering consideration during the design phase.
Evaluate the metallurgy of all contact surfaces. Specifying materials like Hardox steel, cast iron, or ceramic linings ensures the system can withstand continuous exposure to sharp-edged materials and extreme heat without warping or premature degradation. High abrasion resistance directly correlates to extended operational uptime. The selection of wear materials must be based on a detailed analysis of the slag's physical properties, including its hardness, angularity, and temperature profile.
Engineers must also consider the thermal expansion coefficients of the different metals used in the conveyor construction. Differential expansion can cause severe structural stress and warping if not properly accommodated through floating designs and expansion joints. The use of specialized heat-resistant paints and coatings can also help protect non-contact structural components from radiant heat damage.
Match the conveyor’s volumetric capacity (measured in tons per hour) and drive power against peak furnace discharge rates. Proper sizing prevents material bottlenecks at the intake zone and provides the necessary headroom for future facility production increases without requiring immediate equipment replacement. The calculation of throughput must account for the bulk density of the slag, which can vary significantly depending on the cooling method and the specific metallurgical process.
Scalability also involves considering the physical layout of the conveyor system. Can the conveyor be lengthened or modified if the plant layout changes? Are the drive units capable of handling increased loads if production ramps up? These factors must be evaluated during the initial procurement phase to ensure the system remains viable as the facility evolves.
Prioritize modular component designs, externalized bearings kept safely away from heat zones, and easily replaceable wear liners. Systems engineered for accessibility reduce the labor hours required for routine maintenance and minimize costly unplanned operational halts. Maintenance personnel must be able to inspect and replace critical wear parts without dismantling the entire conveyor structure.
The placement of drive units and tensioning mechanisms should allow for easy access with standard tools and lifting equipment. Implementing condition monitoring sensors on bearings and gearboxes can provide early warning of impending failures, allowing maintenance to be scheduled during planned outages rather than reacting to emergency breakdowns.
Evaluate integrated dust hoods, steam exhaust management for wet systems, and automated emergency shut-off mechanisms. Proper environmental controls ensure compliance with strict standards regarding airborne particulates and worker safety around molten materials. The design must incorporate physical guarding around moving parts and high-temperature zones to protect operators.
Dust collection systems must be sized correctly to handle the volume of air displaced by the moving slag and the thermal updrafts generated by the heat. For wet systems, the steam exhaust must be routed safely away from operator walkways and sensitive electrical equipment to prevent corrosion and visibility hazards.
Deploying a slag handling system involves navigating significant engineering and operational risks. Identifying these risks early in the design phase allows for the implementation of effective mitigation strategies.
Risk: Thermal Shock and Component Warpage. Rapid heating and cooling can warp rigid steel frames, leading to misalignment and mechanical failure. Mitigation: Specify floating trough designs or segmented steel pans that allow for natural thermal expansion and contraction without stressing the main structural frame.
Risk: Abrasive Wear on Drive Components. Sharp slag dust infiltrating bearings and chains causes rapid mechanical failure and increased friction. Mitigation: Require sealed, heavy-duty bearings and isolated drive mechanisms positioned away from the primary material flow. Implement positive pressure purging systems for critical bearing housings.
Risk: Material Spillage and Fugitive Dust at Transfer Points. Slag dust escaping during transfer from bucket elevators or chutes creates respiratory hazards and housekeeping issues. Mitigation: Utilize fully enclosed chute designs equipped with negative pressure dust extraction ports and adjustable rubber skirting to seal the transfer zones.
Risk: Facility Footprint Constraints. Retrofitting a new conveyor into an existing, cramped plant layout is challenging and often requires complex routing. Mitigation: Conduct a comprehensive 3D spatial audit prior to procurement; consider steep-incline drag conveyors or vertical bucket elevators if horizontal space is severely limited.
Initiate a comprehensive site audit to measure exact spatial constraints, peak slag discharge temperatures, and downstream integration requirements before requesting custom engineering proposals.
Compile a detailed material profile including the bulk density, maximum lump size, and chemical composition of the slag to ensure accurate metallurgical specification for wear parts.
Request custom engineering proposals from vendors with proven experience in your specific furnace type and required tonnage, focusing on their approach to thermal expansion mitigation.
Evaluate proposed systems based on wear-part accessibility, ensuring that routine maintenance can be performed safely and efficiently without extensive dismantling.
A: Wet conveyors use a water bath to rapidly quench and shatter hot slag, which requires wastewater treatment and corrosion management. Dry conveyors use ambient air to cool the slag slowly, requiring more physical space but allowing for potential heat recovery and eliminating water treatment needs.
A: Depending on the specific furnace type, such as a blast furnace or Electric Arc Furnace, slag can enter the conveyor at extreme temperatures ranging from 800°C to over 1,400°C, requiring specialized thermal management at the intake zone.
A: Yes. Many heavy-duty slag conveyors are also utilized as bottom ash conveyors or deslaggers in power plants due to their robust ability to handle hot, abrasive, and coarse-grained bulk materials effectively.
A: With proper routine maintenance and the timely replacement of sacrificial wear liners, the core structural frame and drive mechanisms of a high-quality system can last 15 to 20 years or more in harsh industrial environments.
A: Vibratory systems move material using micro-tossing actions rather than dragging. This significantly reduces sliding friction between the abrasive slag and the conveyor trough, minimizing wear and extending the life of the equipment.
A: As slag cools and moves along a dry conveyor, it generates fine, abrasive particulates. Robust dust extraction is critical to maintain worker safety, comply with environmental regulations, and prevent abrasive dust from damaging nearby machinery.
