Oversized boiler slag and fused clinkers represent a critical failure point in coal-fired power plant operations, frequently causing downstream blockages, equipment damage, and unplanned boiler downtime. When massive, hardened ash formations drop from the boiler, they threaten the continuous operation of the entire facility. Without proper material reduction at the hopper discharge, power plants face accelerated wear on ash transport mechanisms, including both pneumatic and hydraulic systems. This leads to increased maintenance overhead and an inability to efficiently process or monetize bottom ash by-products. The physical challenge of moving heavy, abrasive slag requires robust mechanical intervention directly at the source. Integrating a properly specified slag crusher directly addresses these bottlenecks by standardizing ash particle size, protecting downstream conveying equipment, and enabling compliance with modern dry and wet ash disposal frameworks.
Operational Continuity: A slag crusher is the primary defense against conveyor jams and slurry pump failures, reducing large clinkers to a uniform, transportable size.
System-Specific Integration: Selection depends heavily on the plant's infrastructure—dry bottom ash systems typically require a combination of primary and secondary crushers, while wet (hydro) systems require crushers optimized for sluiceway integration.
Risk Mitigation: Successful implementation hinges on accurate capacity sizing (ranging from 30 t/h to over 400 t/h) and selecting metallurgy capable of withstanding highly abrasive coal ash environments.
The baseline requirement for any power plant ash handling system is moving material from the boiler hopper to the collection basin or silo without manual intervention or system blockages. Success is measured by continuous flow and the absence of mechanical jams. When clinkers bridge across hopper outlets or jam inside pipes, the entire boiler operation is placed at risk. Establishing a reliable flow path requires mechanical size reduction at the earliest possible stage. Plant operators know that clearing a jammed hopper manually is dangerous and time-consuming. You need equipment that handles the reduction automatically.
It is vital to differentiate the various ash streams generated during coal combustion. Flue gas fly ash collection relies on aerodynamic and electrostatic principles. Plants utilize baghouses, electrostatic precipitators, and liquid ring vacuum pumps to capture fine particulate matter. In stark contrast, the heavy bottom ash and boiler slag stream consists of dense, molten, or agglomerated chunks. This heavy fraction requires a physical Slag Crusher to break down the material into manageable dimensions. We see many facilities struggle when they apply fly ash handling logic to bottom ash realities.
Comparison of Power Plant Ash Streams | |||
Ash Type | Physical Characteristics | Collection Method | Handling Requirement |
|---|---|---|---|
Fly Ash | Fine powder, lightweight, easily airborne | Baghouses, Precipitators | Pneumatic conveying, vacuum systems |
Bottom Ash | Coarse, granular, porous | Boiler hopper discharge | Mechanical conveying, sluicing |
Boiler Slag | Dense, fused clinkers, glass-like, highly abrasive | Boiler hopper discharge | Heavy-duty crushing, impact reduction |

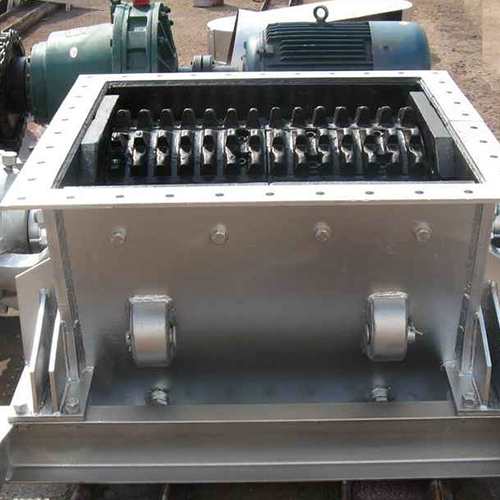

The mechanical role of the crushing equipment is to intercept fused ash as it exits the boiler. As hot clinkers fall from the combustion zone, they enter the crusher housing where heavy-duty rotating elements fracture the hardened mass. This immediate interception prevents oversized chunks from entering the transport system. The crushing action must be powerful enough to shatter dense silica formations while maintaining a consistent throughput rate. Field experience shows that a well-maintained rotor assembly can handle unexpected slag falls without stalling.
Downstream protection is the primary operational benefit of this size reduction. By eliminating large clinkers, the crusher prevents catastrophic damage to high-pressure water jets, slurry pumps, and mechanical belt conveyors. Slurry pumps are particularly vulnerable to impact damage and impeller jamming from oversized solids. Ensuring that only properly sized material enters the conveying lines drastically extends the lifespan of these expensive transport components. We often replace pump impellers that have been shattered by uncrushed slag.
Material standardization is necessary for efficient dewatering or dry pneumatic transport. A consistent output gradation allows hydro systems to maintain optimal slurry velocities, preventing settling and pipeline plugging. In dry systems, uniform particle size is critical for maintaining the necessary air-to-solids ratio in pneumatic lines. Predictable material dimensions streamline every subsequent phase of ash processing and storage. When you control the particle size, you control the entire conveying process.
In wet ash handling environments, crushers operate within hopper pits before the material enters the sluiceway. These pits collect the falling bottom ash, quenching it in water. The crushing equipment must function reliably in this harsh, saturated environment, breaking down the quenched clinkers before they can obstruct the hydraulic transport channels. Submerged operation requires specific engineering tolerances to prevent water ingress into mechanical housings.
The sluiceway sequence requires precise mechanical coordination. High-pressure water jets wash the boiler slag from the hopper pit, forcing it through the crushing mechanism and into the sluiceway channel. The crusher acts as a physical gatekeeper, ensuring that only material small enough to be suspended in the water flow passes through. This continuous washing and crushing cycle demands equipment designed for constant exposure to abrasive slurries. Operators must monitor jet pressure to ensure adequate feed rates into the crushing chamber.
Verify water levels in the hopper pit before initiating the sequence.
Engage the crusher drive motor and confirm operating RPM.
Activate high-pressure sluice jets to push material into the crushing zone.
Monitor motor amperage for signs of jamming or overload.
Maintain continuous water flow to flush crushed material into the transport channel.
Water-mixed slag processing introduces strict technical requirements for equipment operating in submerged or highly saturated environments. Seal designs must prevent abrasive slurry from penetrating bearing housings and drive components. Corrosion resistance is equally critical, as the quench water often becomes highly acidic or alkaline depending on the coal chemistry. Specialized alloys and robust mechanical seals are mandatory for long-term reliability. We specify multi-stage labyrinth seals for all submerged applications.
There is a direct correlation between precise slag crushing and the lifespan of downstream slurry transport pumps. These pumps move the water-mixed slag to collection basins or ash dumps. If oversized clinkers bypass the crusher, they cause severe impact damage to pump volutes and impellers. Consistent sizing minimizes internal pump wear and reduces the energy required to maintain slurry velocity through the pipeline. A well-sized feed material keeps pump efficiency high and maintenance intervals long.
Standardized particle size also optimizes subsequent water separation in the collection basin. When the slurry reaches the dewatering bins or settling ponds, uniform ash particles settle at a predictable rate. This dewatering efficiency is crucial for recycling the transport water back into the plant system and for preparing the final ash product for disposal or secondary use. Predictable settling rates allow for automated decanting processes.
Regulatory and environmental drivers are pushing power plants away from wet ash ponds toward dry handling methodologies. Dry systems eliminate the environmental risks associated with ash pond leaching and reduce overall water consumption. However, handling dry, hot bottom ash presents unique mechanical challenges that require specialized crushing configurations. The absence of quenching water means the equipment must handle extreme thermal loads directly.
The spatial sequence in dry systems typically involves primary and secondary crushing stages. The primary crusher is positioned immediately post-boiler to handle massive, hot clinkers directly from the discharge hopper. This unit must withstand extreme temperatures and massive impact loads. After primary reduction, the material drops onto a clinker cooling conveyor, which manages the controlled cooling of the dry slag as it moves away from the boiler area. The secondary crusher is positioned downstream of the cooling conveyor to achieve final product sizing suitable for pneumatic transport, silo storage, or truck loading.
Primary vs. Secondary Crushing in Dry Systems | ||
Parameter | Primary Crushing Stage | Secondary Crushing Stage |
|---|---|---|
Location | Directly beneath boiler hopper | Post-cooling conveyor |
Material Temperature | Extremely high (often >800°C) | Cooled (typically <200°C) |
Input Size | Massive clinkers, unpredictable surges | Pre-crushed, uniform feed |
Primary Function | Initial breakdown, preventing conveyor jams | Final sizing for pneumatic transport |
Thermal considerations dictate the engineering of dry system crushers. Evaluating equipment tolerance involves analyzing thermal expansion of the crushing rolls and housing. High-temperature material handling often requires water-cooled shafts, specialized heat-resistant bearings, and cooling jackets to prevent structural warping and premature component failure. We always check the cooling water flow rates during routine inspections to prevent shaft distortion.
Aligning crusher capacity with maximum boiler load and coal ash generation rates is the first step in equipment selection. Volume metrics vary widely based on plant size and coal quality. Standard offerings typically range from 30 t/h for smaller industrial boilers, up to 70 t/h for mid-sized units, and high-capacity machines exceeding 400 t/h for large utility-scale power plants. Undersizing the equipment leads to immediate bottlenecks during peak generation periods. You must calculate the worst-case ash generation scenario when sizing the drive motor.
Evaluating the crusher's ability to handle sudden surges is critical. Ash does not always fall at a steady rate; accumulated slag can detach from boiler walls in massive falls. The crushing equipment must possess sufficient rotational inertia and motor torque to process these sudden volumetric spikes without stalling the drive motor or tripping electrical breakers. Heavy flywheels and high-torque gearboxes provide the necessary mechanical advantage to power through these surges.
Contrasting the processing of low-to-medium hardness industrial slags with highly abrasive coal boiler slag highlights the need for specialized metallurgy. While aluminum or blast furnace slag might be processed with standard steel components, coal ash requires extreme wear resistance. The hardness benchmarking of coal slag dictates the use of premium materials for all ground-engaging components. Standard carbon steel will erode within weeks under these conditions.
Analyzing the silica and alumina content in coal ash reveals its highly abrasive nature. These compounds form glass-like structures when cooled, acting essentially as grinding grit against the crusher internals. The abrasiveness of boiler slag rapidly degrades standard carbon steel, requiring a different approach to component manufacturing. We analyze the ash chemistry of every plant before specifying the roll metallurgy.
The necessity of high-chrome alloys, manganese steel, and replaceable wear liners cannot be overstated. High-chrome white iron offers exceptional abrasion resistance for crushing teeth and segments. Manganese steel provides work-hardening properties that absorb heavy impacts. Utilizing modular, replaceable wear liners extends maintenance intervals and reduces the time required for internal rebuilds. Maintenance crews appreciate segmented rolls that can be swapped without pulling the entire shaft.
Mechanisms to protect the crusher from uncrushable foreign objects are mandatory. Tramp metal protection systems, such as spring-loaded release mechanisms, auto-reversing rolls, or mechanical shear pins, prevent catastrophic damage when steel debris enters the crushing chamber. These systems allow the uncrushable object to pass or stop the machine before the shafts or bearings fail. We have seen shear pins save entire gearboxes from destruction when a piece of boiler tube falls into the hopper.
The engineering challenges of fitting new equipment into existing, confined sub-boiler spaces define many retrofit projects. Footprint limitations often dictate the physical dimensions and orientation of the crusher housing. Custom engineering is frequently required to match existing hopper flanges and discharge chutes without requiring extensive structural modifications to the plant. You have to measure the available clearance down to the millimeter before ordering equipment.
Evaluating direct-drive versus belt-drive systems is based on available clearance and maintenance access. Direct-drive configurations offer a compact footprint but require precise alignment and robust fluid couplings. Belt-drive systems provide mechanical shock absorption and easier ratio adjustments but demand more physical space for the belt guards and motor mounts. We prefer belt drives where space allows, simply for the ease of changing reduction ratios in the field.
The trade-off between purchasing a standard-duty machine versus a heavy-duty, custom-engineered unit impacts long-term operational stability. Standard-duty equipment often requires higher maintenance frequency and more frequent liner replacements when subjected to abrasive coal ash. Heavy-duty units deliver extended run times and greater reliability between scheduled outages. Plant managers must weigh the frequency of maintenance interventions against the robust build quality of heavier machines.
Weighing the simplicity of a single-stage reduction against the efficiency of a two-stage setup is another critical conceptual trade-off. A single machine simplifies the plant layout and reduces the number of moving parts. However, a primary and secondary setup provides finer control over the output gradation and reduces the mechanical strain on any single component, which is particularly beneficial in demanding dry ash systems. Two stages allow each machine to operate well within its design limits.
Achieving a specific, uniform slag size opens secondary revenue streams, transforming waste to wealth. Properly sized and graded boiler slag can be monetized by selling it as roofing granules, aggregate for concrete production, or abrasive blasting grit. This monetization strategy requires precise crushing equipment capable of maintaining strict output tolerances over long operational periods. Consistent particle size is the key to passing quality control for commercial aggregate sales.
Premature wear and catastrophic failure from highly abrasive slag is the most significant operational risk. The constant grinding action of silica-rich ash destroys inadequate metallurgy rapidly. To mitigate this, plants must implement predictive maintenance protocols, including routine vibration monitoring and oil analysis. Specifying modular, easily replaceable crushing rolls and teeth allows maintenance teams to swap worn components quickly during short outage windows. We track wear rates monthly to predict exactly when a segment replacement is necessary.
Dust generation and environmental non-compliance present major risks in dry bottom ash systems. Fugitive dry ash poses health hazards and violates environmental permits. Mitigation requires ensuring the crusher housing is fully sealed. The equipment must be integrated with the plant's baghouse or dedicated dust suppression systems to maintain negative pressure and prevent the escape of airborne particulates. A properly sealed housing keeps the surrounding plant floor clean and safe.
Extended plant downtime during installation is a risk that threatens overall power generation schedules. Retrofitting heavy machinery in confined spaces often leads to unforeseen delays. Utilizing 3D laser scanning of the hopper area prior to procurement ensures drop-in compatibility. This precise spatial mapping allows engineers to design custom transition chutes and mounting frames, ensuring the installation is completed within the scheduled boiler outage.
Conduct a full 3D laser scan of the sub-boiler area to map all structural steel and piping.
Design custom transition chutes based on the scan data to ensure a perfect fit.
Pre-assemble the crusher and drive components on the shop floor to verify alignments.
Schedule the installation during a planned major boiler outage to minimize disruption.
Perform dry run testing and vibration baseline measurements before introducing live ash.
Initiate a comprehensive site audit to measure sub-boiler space constraints and identify potential installation bottlenecks.
Conduct material testing on existing slag samples to determine hardness, abrasiveness, and optimal crushing forces.
Consult with OEMs on custom drive configurations and mounting options to ensure seamless integration with existing hopper structures.
Establish a predictive maintenance schedule focusing on wear part inspection and vibration analysis to prevent unexpected failures.
A: A primary crusher handles large, hot clinkers directly from the boiler hopper, absorbing massive impacts and high temperatures. A secondary crusher is positioned downstream to further reduce the cooled material to a finer, uniform size suitable for final storage, pneumatic transport, or commercial sale.
A: It reduces boiler slag to a manageable size before it enters the sluiceway. This prevents blockages in the hydraulic channels and protects high-pressure water jets and downstream slurry pumps from severe impact damage and impeller jamming.
A: Depending on the boiler size and plant requirements, capacities generally range from 30 tons per hour (t/h) for smaller industrial operations up to 400 t/h or more for large-scale utility power plants.
A: Yes, crushers designed for dry bottom ash systems are engineered with specialized heat-resistant alloys, water-cooled shafts, and cooling jackets to process high-temperature clinkers safely without structural warping.
A: Industrial units are typically equipped with tramp iron relief mechanisms, such as auto-reversing rolls, spring-loaded release systems, or shear pins. These mechanisms protect the machine by allowing the object to pass or by stopping the drive before catastrophic damage occurs.
