Unplanned downtime and frequent parts replacement in industrial slag processing create severe operational bottlenecks. When a plant halts to replace worn components, the lost production time cripples output targets. The core operational problem lies in the uniquely destructive nature of metallurgical slag. This material combines extreme abrasiveness with unpredictable, uncrushable metallic inclusions—often called tramp metal—that easily destroy standard crushing equipment.
Moving beyond generic equipment advice requires a technical, metallurgical evaluation of tooth plate materials and profiles. Establishing a clear framework helps operators select the exact alloy and design needed to maximize wear life. Understanding these variables ensures that your slag crusher operates efficiently under the harshest conditions, keeping production lines moving without unexpected mechanical failures.
There is no universal "best" material; optimal selection requires balancing impact resistance (toughness) with abrasion resistance (hardness) based on specific slag characteristics.
High manganese steel remains the baseline standard due to its unique work-hardening properties under heavy impact, but it requires sufficient kinetic energy to perform effectively.
The physical profile of a strong wear-resistant tooth plate (e.g., corrugated, Toblerone, or quarry-style) is equally critical to the metallurgical composition in preventing chamber packing and extending wear life.
A successful crushing operation requires consistent throughput, predictable wear cycles, and zero catastrophic plate failures. Defining these success criteria frames the approach to selecting the right components. Operators need equipment that handles aggressive feed without unexpected breakdowns. When a jaw plate fails mid-shift, the entire processing circuit stops. You must evaluate the specific geological and metallurgical properties of the feed material before specifying replacement parts.
Field experience shows that relying on standard aggregate crushing metrics leads to rapid equipment failure when applied to slag. Slag behaves differently than limestone or gravel. It possesses a unique combination of high compressive strength and extreme abrasiveness. To achieve predictable wear cycles, maintenance teams must track the tonnage processed against the physical degradation of the jaw plates, establishing a baseline for future material selection.
Steel and iron slag typically feature high Mohs hardness and significant silica content. These factors accelerate abrasive wear on standard steel components. The abrasive nature of slag acts like sandpaper under immense pressure, stripping away metal rapidly if the wrong alloy is used. Slag often contains sharp, glassy edges that gouge into softer metals, removing material with every stroke of the pitman.
Material Type | Average Mohs Hardness | Silica Content (%) | Abrasiveness Rating |
|---|---|---|---|
Basic Oxygen Furnace (BOF) Slag | 6.0 - 7.0 | 10 - 15 | High |
Electric Arc Furnace (EAF) Slag | 6.5 - 7.5 | 15 - 20 | Very High |
Blast Furnace Iron Slag | 5.5 - 6.5 | 30 - 40 | Extreme |
Standard Limestone (Reference) | 3.0 - 4.0 | < 5 | Low |
The table above illustrates why standard manganese steel often struggles in high-silica slag applications unless sufficient impact is present to harden the surface. The high silica content acts as a cutting agent. When the jaw closes, the silica particles embed themselves into the surface of the plate, dragging across the metal and causing severe micro-gouging.
Metallurgical slag shares physical characteristics with highly abrasive natural materials like basalt, granite, and river stone. Comparing slag to these materials helps contextualize the wear velocity experienced inside the crushing chamber. The sheer abrasiveness demands specialized materials to withstand continuous friction. However, unlike natural stone, slag lacks natural cleavage planes. It does not fracture cleanly along predictable lines.
When crushing granite, the rock eventually shatters. Slag, depending on its cooling process, can be incredibly dense and resistant to shattering. It requires immense compressive force to break. This sustained pressure generates significant heat and friction against the jaw plates. Operators used to crushing river gravel will find that their standard wear parts last only a fraction of the time when introduced to a slag processing circuit.
Uncrushable metallic inclusions often enter the crushing chamber hidden within the slag. These pieces of tramp metal create localized stress spikes. When the crusher attempts to break these unyielding objects, the resulting shockwaves cause brittle materials to fracture instantly. A solid steel billet or a broken excavator tooth hidden in the feed will not yield to the jaw.
The kinetic energy from the flywheel transfers directly into the jaw plates and the toggle plate. If the jaw plate material lacks sufficient toughness, it will crack under this extreme point-loading. This is why material selection must account for the worst-case scenario in the feed, not just the average slag composition. You must balance the need for surface hardness against the absolute requirement for structural toughness.
High manganese steel features an austenitic structure that provides dual-layer performance. Under high impact, the outer surface work-hardens from approximately 200 BHN to over 500 BHN. Meanwhile, the inner core remains ductile and fracture-resistant, absorbing heavy shocks. This unique property makes it the traditional go-to material for heavy-duty crushing applications.
The work-hardening mechanism relies on kinetic energy. As rocks and slag smash against the plate, the impact deforms the surface grain structure, packing the molecules tighter and increasing the hardness. This creates a self-renewing wear surface. As the hardened outer layer wears away, the next layer is exposed to impact and hardens in turn.
This material offers exceptional impact tolerance and crack resistance. However, it suffers rapid gouging and wear if the slag feed lacks the mass or impact energy required to trigger the work-hardening phase. Without sufficient impact, the steel remains soft and wears quickly. If you are crushing small, highly abrasive slag particles, manganese steel will degrade rapidly because the impact force is too low to initiate the hardening process.
High-chromium alloys provide extreme abrasion resistance, making them suitable for highly abrasive environments. These alloys resist the grinding action of silica-rich slag effectively. Their hardness prevents rapid surface degradation. A solid high-chrome plate can easily reach 600 to 700 BHN straight out of the foundry, offering immediate protection against sliding abrasion.
Despite their hardness, high-chrome alloys are highly brittle under impact. If a piece of tramp metal enters the chamber, a solid chrome plate will likely shatter, causing catastrophic failure and extensive downtime. Foundries mitigate this by using high-chrome inserts embedded in a tougher manganese or alloy steel matrix. These bi-metal composites handle both severe abrasion and heavy shock loads.
The manufacturing process for bi-metal composites is complex. The foundry must ensure a perfect metallurgical bond between the hard chrome inserts and the ductile matrix. When executed correctly, the resulting plate offers the best of both worlds: the inserts resist the abrasive grinding of the slag, while the matrix absorbs the shock of tramp metal impacts without cracking.
Alloy steels achieve a specific balance of yield strength and hardness through precise heat treatments. These materials provide consistent wear characteristics throughout their thickness. They do not rely on impact to harden. By adjusting the levels of carbon, chromium, molybdenum, and nickel, metallurgists can tailor the steel to specific operational requirements.
These steels are ideal for smaller feed sizes or secondary crushing stages where impact is moderate but abrasion remains high. They lack the self-healing work-hardening properties of manganese, meaning they wear at a more predictable, steady rate. This predictability allows maintenance planners to schedule change-outs with high accuracy.
Ni-Hard, a specific type of alloy steel containing nickel and chromium, offers excellent abrasion resistance but limited impact toughness. It is rarely used for primary jaw plates but can be effective in secondary applications where the feed size is strictly controlled and tramp metal has been removed by magnetic separators upstream.
Corrugated designs improve grip on abrasive, slippery slag. This enhanced grip reduces slipping and rubbing between the material and the plate. Consequently, localized gouging decreases, extending the life of the plate. When slag slips upward during the crushing stroke, it acts like a grinding wheel against the metal.
A corrugated profile forces the slag to fracture rather than slide. The rounded peaks and valleys distribute the crushing force evenly across the face of the plate. This design is particularly effective for medium-sized feed where penetration is less critical than preventing abrasive wear. It maintains a consistent nip angle as it wears, ensuring steady throughput over the life of the part.

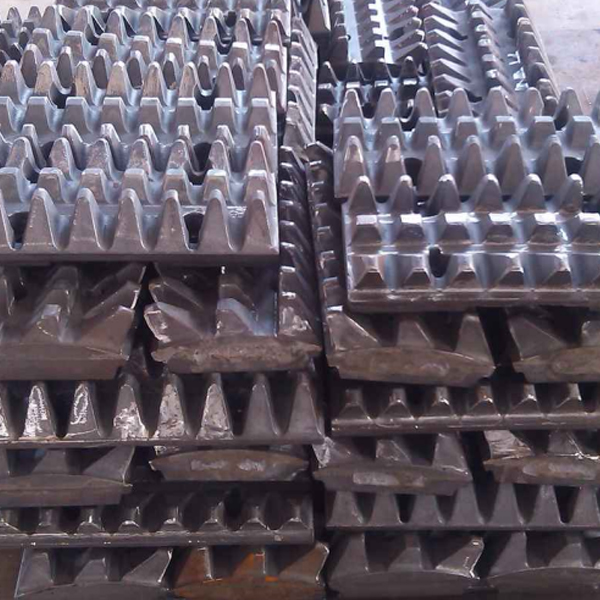

Sharp, high-profile triangular teeth, often called Toblerone style, concentrate crushing force effectively. This concentrated force splits dense, un-deformed slag skulls efficiently. The deep profile ensures maximum penetration into tough materials. By reducing the contact area between the plate and the slag, the pounds per square inch of crushing force increase dramatically.
This profile is essential when dealing with large, blocky slag that resists fracturing. The sharp teeth bite into the material, creating stress fractures that propagate through the chunk. However, these sharp peaks wear down faster than rounded profiles in highly abrasive conditions. Operators must weigh the need for penetration against the accelerated wear rate of the tooth peaks.
Wider tooth spacing characterizes quarry-style profiles, designed for penetrating large, tough slag chunks. This spacing prevents bridging in the chamber, ensuring a steady flow of material. It allows the crusher to handle oversized feed without jamming. When large pieces of slag enter the chamber, they need room to position themselves between the teeth.
If the teeth are too close together, the large chunks will sit on top of the profile, reducing the effective bite and causing the material to bounce. The quarry-style profile provides deep valleys that capture the edges of the slag, pulling it down into the crushing zone. This design maximizes the volumetric capacity of the jaw.
Handling flat, slabby slag pieces requires specific geometry. The correct profile prevents these flat pieces from passing through the jaw uncrushed. Specialized tooth arrangements ensure that slabby material is broken down properly. If a flat piece of slag aligns vertically with the jaw opening, it can slide straight through a standard corrugated plate.
To combat this, foundries design plates with offset teeth or specialized wave patterns. These designs force the slabby material to twist and bend as it moves down the chamber, breaking it across its shortest dimension. This ensures a consistent product size and prevents oversized flat pieces from damaging downstream conveyor belts or secondary crushers.
The geometric pairing of the fixed and moving tooth plates directly affects the nip angle. A correct nip angle ensures efficient throughput and prevents material from being ejected upward. It also promotes an even distribution of wear across the entire plate face. If the nip angle is too wide, the slag will slip and boil in the chamber, causing extreme wear at the top of the plates.
If the nip angle is too narrow, the capacity of the crusher drops significantly, and the material may pack in the lower chamber. Selecting the right tooth profile helps maintain the optimal nip angle even as the plates wear. A well-designed Strong Wear-Resistant Tooth Plate will hold its basic shape throughout its lifecycle, ensuring consistent chamber flow.
Evaluating feed material requires a systematic approach. Operators must assess feed size, shape (slabby versus blocky), crushability index, and the estimated percentage of tramp metal. Understanding these factors dictates the necessary material properties. You cannot select a jaw plate based solely on the make and model of the crusher.
Measure the top size of the incoming slag to determine the required tooth depth and spacing.
Analyze the shape of the feed to decide between standard corrugated or specialized slabby profiles.
Conduct a crushability test to gauge the compressive strength of the slag.
Audit the upstream process to estimate the volume and size of tramp metal entering the chamber.
Review historical wear data from previous jaw plates to identify the primary mode of failure.
Slag Condition | Recommended Material | Primary Benefit |
|---|---|---|
High Impact / Heavy Tramp Metal | High Manganese Steel (18-22% Mn) | Maximum toughness and crack resistance under extreme shock loads. |
High Abrasion / Moderate Impact | Bi-Metal Composites (Manganese Matrix + Chrome Inserts) | Combines hard inserts for abrasion resistance with a tough matrix for impact. |
High Abrasion / Low Impact | Alloy Steels (Low-Alloy variants) | Consistent hardness throughout the plate without requiring impact to harden. |
Extreme Abrasion / Fine Feed | High-Chrome Cast Iron (Solid) | Maximum surface hardness, but only suitable if tramp metal is completely absent. |
Predictable wear patterns allow for scheduled maintenance. Planning change-outs during planned downtime reduces the risk of catastrophic mid-shift failures. Consistent wear data helps optimize inventory and maintenance labor. When you know exactly how many tons a specific plate can process, you can order replacements in advance and schedule the crane and rigging crew.
Implementing a regular inspection routine is critical. Maintenance personnel should measure the remaining tooth height weekly. By plotting this data on a wear curve, you can accurately predict the end of the plate's useful life. This proactive approach eliminates the panic of emergency breakdowns and ensures that the processing plant maintains its targeted availability.
Using high-manganese plates in low-impact applications leads to premature wear. The material will wear out before work-hardening can occur. Match the alloy strictly to the impact levels of the application. If you notice that your manganese plates are wearing smooth without any signs of surface hardening, you are likely using the wrong material for your feed size.
Conversely, installing a brittle high-chrome plate in a primary crusher with heavy tramp metal will result in immediate cracking. The initial cost of the premium alloy is wasted if it shatters on the first day of operation. Always prioritize structural toughness over surface hardness if there is any doubt about the presence of uncrushable objects in the feed.
Selecting the wrong tooth profile for fine, wet, or sticky slag leads to chamber packing. Packing exerts extreme stress on the crusher's toggle plate and bearings. Choose a profile that promotes self-cleaning and smooth material flow. When material packs in the lower chamber, the moving jaw cannot complete its stroke.
This condition, known as a stall or a pack, forces the kinetic energy back into the mechanical components of the crusher. It can bend the pitman, shatter the toggle plate, or destroy the main bearings. If your slag is wet or contains a high percentage of fines, avoid deep, narrow tooth profiles that can trap material. Opt for wider, shallower profiles that allow the sticky material to clear the chamber.
Sourcing cheap plates carries significant risks, including internal porosity, improper heat treatment, and dimensional inaccuracies. Always request metallurgical certifications from foundries. Verify that the casting meets exact specifications before installation. A plate with internal voids or shrinkage cracks will fail prematurely, regardless of the alloy composition.
Improper heat treatment is another common issue with low-quality castings. If manganese steel is not quenched correctly, carbides will precipitate along the grain boundaries, making the steel brittle. Before accepting a shipment of wear parts, inspect the machined surfaces for dimensional accuracy. A plate that does not sit flat against the jaw die will flex under load and crack.
Audit your discarded plates immediately to identify primary failure modes, distinguishing between abrasive wear and impact fracture.
Consult with a specialized foundry to conduct a comprehensive wear analysis based on your specific slag composition.
Run a controlled trial of a custom-profile plate, tracking tonnage and wear rates weekly to verify performance improvements.
Implement a strict tramp metal removal protocol upstream of the crusher to protect your investment in premium wear parts.
A: High manganese steel has an austenitic structure. When subjected to heavy impact from large slag chunks, the surface deforms microscopically. This deformation packs the grain structure tighter, increasing its hardness significantly while the inner core remains ductile and tough.
A: Replacement frequency depends entirely on slag abrasiveness, impact levels, and operating hours. Monitor wear patterns weekly. Replace the plate before the teeth wear completely flat, as running smooth plates compromises throughput and transfers excessive stress to the crusher frame.
A: Corrugated plates offer better grip for abrasive materials, reducing sliding wear. Quarry plates have wider spacing to handle large, blocky chunks without bridging. Toblerone plates feature sharp, high profiles designed for deep penetration into dense, unyielding slag.
A: Select a profile with specialized, offset tooth arrangements designed to catch and bend flat pieces. This geometry forces the slabby material to fracture across its shortest dimension, preventing it from slipping through the crushing chamber uncrushed.
A: Solid high-chrome plates are generally too brittle for primary crushing where tramp metal is present. They will shatter under heavy impact. Bi-metal composites, which embed hard chrome inserts in a tougher steel matrix, are a much safer alternative.
A: If you experience frequent change-outs, severe localized gouging, or mid-shift plate fractures, an upgrade is necessary. Analyze your discarded plates and track your maintenance downtime to determine if a different alloy or profile will improve operational stability.
A: Yes. High levels of tramp metal require materials with maximum impact toughness, like high manganese steel. This prevents catastrophic brittle fractures when uncrushable steel billets or excavator teeth accidentally enter the crushing chamber.
