Efficient bottom ash and slag management is a critical operational bottleneck for coal-fired power plants, biomass facilities, and waste-to-energy plants, directly impacting boiler uptime and thermal efficiency. Plant engineers and procurement teams must choose between traditional wet cooling and modern dry cooling methods. The wrong choice leads to excessive water consumption, high wastewater treatment demands, lost thermal energy, or premature equipment failure.
Evaluating the operational realities of a dry slag conveyor versus a submerged scraper conveyor requires a strict analysis of heat recovery potential, environmental compliance, and maintenance overhead. The core difference lies in the cooling medium: submerged systems use water to quench hot ash, while dry systems utilize controlled ambient air. This fundamental shift dictates the entire downstream process, from material handling characteristics to regulatory compliance and overall plant efficiency.
Thermal Efficiency: Dry slag conveyors recover sensible heat from bottom ash and return it to the boiler, improving overall plant efficiency by 1% to 2%, whereas submerged systems lose this heat to cooling water.
Resource Consumption: Submerged scraper conveyors require continuous water supply and subsequent wastewater treatment, while dry systems eliminate water usage for bottom ash cooling.
Byproduct Monetization: Dry slag is unburned, carbon-free, and highly suitable for resale to the cement and construction industries, unlike wet ash which often incurs disposal costs.
Maintenance Realities: Both systems face extreme wear; however, utilizing a strong alloy conveyor scraper is non-negotiable for minimizing downtime in both high-heat (dry) and corrosive (wet) environments.
The submerged scraper conveyor represents the traditional wet-bottom ash handling process. In this configuration, hot bottom ash falls directly from the furnace throat into a water-filled trough located beneath the boiler. This water trough serves three distinct mechanical purposes: it quenches the hot slag instantly, creates a hydrostatic seal to maintain negative furnace pressure, and thermally fractures large clinkers upon impact. Plant operators rely on this immediate quenching to handle sudden surges in ash volume without risking thermal damage to downstream equipment.
Once the ash enters the water, a continuous chain and flight scraper mechanism drags the wet ash along the bottom of the trough. The material is then pulled up an inclined section, allowing excess water to drain back into the main bath before the dewatered ash discharges into a storage bin or secondary transport system. The hydrostatic seal mechanism relies on a dip plate extending from the boiler casing into the water bath, requiring precise water level control systems to prevent combustion air leakage or boiler draft fluctuations. Maintaining this water level is a constant operational focus, as fluctuations can lead to immediate boiler draft instability.
From a mechanical standpoint, the submerged system is robust but requires heavy-duty components to handle the dense, wet ash. The chains and flights operate entirely underwater, subjecting them to continuous abrasion from the ash slurry. Operators must frequently monitor chain tension, as the constant grinding action accelerates wear on the pins and bushings, leading to chain elongation over time.
A dry Slag Conveyor operates on a pneumatic, air-cooled principle, eliminating water from the bottom ash extraction process. Instead of a water bath, hot ash falls through a mechanical transition chute onto a continuously moving steel mesh belt or enclosed pan conveyor. This transition chute is equipped with mechanical air seals to prevent uncontrolled air ingress into the furnace. The transition from wet to dry handling requires a fundamental shift in how plant personnel approach boiler sealing and ash cooling.
Cooling is achieved by drawing a controlled volume of ambient air across the hot ash bed on the conveyor. The negative pressure of the boiler pulls this cooling air through the mechanical seal. As the air passes over the ash, it absorbs radiant and sensible heat. Furthermore, unburnt carbon present in the slag reacts with the incoming oxygen, creating a secondary post-combustion process directly on the belt. This not only reduces the carbon content of the final ash product but also generates additional thermal energy that is swept back into the boiler.
The mechanical design of a dry system focuses heavily on thermal expansion and heat resistance. The steel mesh belts or pans must withstand continuous exposure to temperatures exceeding 900°C without warping or losing tensile strength. Idlers and bearings are positioned outside the primary heat zone whenever possible, and specialized high-temperature lubricants are required to maintain smooth operation. The entire enclosure must be meticulously sealed to ensure the cooling air flows exactly as designed, maximizing heat recovery and preventing fugitive dust emissions.
The choice of cooling mechanism directly impacts the thermodynamic efficiency of the boiler. Submerged systems inherently lose heat. The thermal energy contained in the hot bottom ash is transferred to the quenching water, which must then be cooled or discharged, representing a total loss of that energy from the power generation cycle. For a large utility boiler, this continuous heat loss translates to a measurable decrease in overall plant efficiency.
Dry cooling offers a distinct thermodynamic advantage. By utilizing ambient air to cool the ash, the system recovers radiant and sensible heat. This heated air is drawn back into the furnace as pre-heated combustion air. This recovery process directly offsets the fuel required to heat the furnace. Plants utilizing dry bottom ash handling typically observe a measurable reduction in coal or biomass consumption per ton of steam generated, improving overall boiler efficiency.
To illustrate the impact, consider a 500 MW coal-fired unit. The sensible heat recovered from the bottom ash can increase the temperature of the incoming combustion air by several degrees. While this may seem minor, over thousands of operating hours, the cumulative fuel savings are substantial. This efficiency gain is a primary driver for facilities looking to optimize their heat rate and reduce their carbon intensity.
Submerged systems demand a continuous supply of make-up water to compensate for evaporation caused by quenching hot ash and the moisture retained in the discharged wet ash. This creates a significant water footprint. More critically, the water in the trough absorbs heavy metals and suspended solids from the ash, generating a complex wastewater stream. Managing this water chemistry requires dedicated personnel and continuous monitoring to prevent scaling or accelerated corrosion within the trough.
Managing this wastewater presents heavy regulatory burdens. Facilities must comply with strict environmental guidelines, such as the Effluent Limitation Guidelines (ELG) in the United States or various global Zero Liquid Discharge (ZLD) mandates. Treating heavy-metal-laden wastewater requires dedicated, complex treatment facilities. Dry slag handling eliminates this issue entirely, offering a zero-water footprint for bottom ash cooling and removing the compliance risks associated with ash transport water.
The elimination of ash transport water also simplifies the plant's overall water balance. Facilities no longer need to maintain large settling ponds or operate energy-intensive wastewater treatment clarifiers specifically for bottom ash. This reduction in auxiliary equipment not only lowers operational complexity but also frees up valuable real estate on the plant site.
The physical properties of the resulting ash differ drastically between the two systems. Wet bottom ash is clumpy, heavy, and retains significant moisture, making it difficult to handle and prone to freezing in cold climates. Dry bottom ash is granular, free-flowing, and completely dry. Both systems often require heavy-duty clinker grinders or crushers integrated into the conveyor path to break down large agglomerates and ensure smooth transport.
The commercial viability of the byproduct is a major differentiator. Dry ash features higher pozzolanic activity and lower unburned carbon due to the post-combustion process on the belt. This makes dry slag highly desirable as a supplementary cementitious material for the concrete and cement industry. Conversely, wet ash often fails to meet the strict quality standards for cement integration and typically incurs landfill disposal fees.
When dry ash is sold to the construction sector, it transforms a waste liability into a revenue stream. Concrete manufacturers value the consistent particle size and low moisture content of dry bottom ash, as it improves the workability and final strength of their concrete mixes. Establishing these off-take agreements requires consistent ash quality, which dry handling systems are uniquely positioned to provide.
Evaluating the technical specifications highlights the operational divergence between wet and dry systems. The following matrix outlines the standard performance metrics for both configurations.
Specification Parameter | Submerged Scraper Conveyor (Wet) | Dry Slag Conveyor |
|---|---|---|
Maximum Ash Inlet Temperature | Up to 1100°C (Quenched instantly) | Up to 1100°C (Air-cooled gradually) |
Water Consumption | High (Evaporation + Ash retention) | Zero |
System Sealing Type | Hydrostatic Water Seal | Mechanical Air Seal |
Secondary Post-Combustion | No | Yes |
Ash Moisture Content | 15% - 30% | 0% |
Primary Wear Components | Chains, Sprockets, Trough Liners | Steel Belts, Idlers, Pan Liners |
Ash Saleability | Low (Often landfilled) | High (Cement industry integration) |
Slag handling is inherently destructive to mechanical components. Dry systems operate in a high-heat environment where primary failure modes include thermal fatigue, expansion stress on structural components, and severe abrasion from fine, dry ash dust infiltrating bearings and moving parts. Mechanical belt tracking issues can also arise due to uneven thermal expansion. Maintenance teams must prioritize lubrication and alignment to prevent premature bearing failure in these high-temperature zones.
Submerged systems face a different set of challenges driven by the wet environment. Acidic corrosion is a constant threat as the quench water absorbs sulfur and other compounds from the ash. The combination of water and hard ash particles creates an abrasive slurry that rapidly wears down trough linings. Pin-and-bush chain elongation and sprocket wear are accelerated by this grinding slurry, requiring frequent tensioning and eventual replacement. The submerged nature of these components makes inspection difficult while the unit is online, often requiring complete system drainage during outages to assess wear accurately.

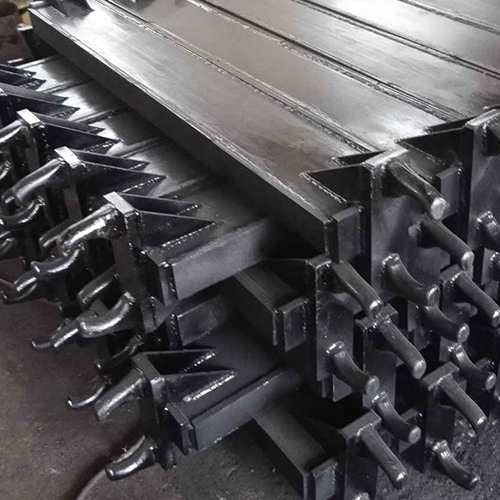

Standard carbon steel components fail prematurely when exposed to the extreme conditions of bottom ash handling. In wet systems, carbon steel succumbs rapidly to corrosion and slurry abrasion. In dry systems, high temperatures cause standard steel to lose its tensile strength and warp under load. Upgrading to a Strong Alloy Conveyor Scraper is necessary to maintain continuous operation.
Metallurgical requirements for these scrapers dictate the use of materials like manganese steel, chromium-molybdenum alloys, or components with carburized cases. These alloys provide the necessary hardness to resist abrasive wear while maintaining the core toughness required to absorb impact damage from falling clinkers. The design profile of the scraper flights must be optimized to move dense material efficiently, and they must be paired with high-tensile, case-hardened alloy chains to prevent catastrophic snapping under heavy loads. Proper material selection directly correlates with an extended mean time between failures (MTBF).
When specifying scraper materials, plant engineers must analyze the specific chemical composition of their ash. High-silica ash requires extreme abrasion resistance, while ash with high sulfur content demands superior corrosion resistance. Customizing the alloy composition to match the specific fuel profile of the plant ensures maximum component lifespan and reduces the frequency of unplanned outages.
Effective maintenance strategies differ based on the conveyor type. For dry systems, inspection routines must prioritize belt tensioning, continuous monitoring of conveyor tracking, and verifying the integrity of the mechanical air seals. Pan wear liners and transition chute refractory must be inspected for thermal degradation during scheduled outages. Infrared thermography is often used to identify hot spots on the conveyor casing, indicating potential refractory failure or air seal leaks.
Wet system maintenance focuses heavily on the chain and scraper assembly. Technicians must conduct regular chain wear and elongation measurements to prevent derailments. Trough lining thickness must be ultrasonically tested to identify high-wear areas before burn-through occurs. Additionally, continuous monitoring of water chemistry and pH levels is required to mitigate accelerated acidic corrosion of the submerged components. Establishing a strict lubrication schedule for the exposed tail and head shaft bearings is also critical to prevent water and ash ingress.
Submerged systems remain a viable option under specific operational constraints. They are often specified for legacy plants with limited remaining operational lifespans where major structural modifications cannot be justified. Facilities located in regions with abundant, low-cost water supplies and lenient local wastewater discharge regulations may also continue to operate wet systems effectively. Furthermore, certain fuel types that produce highly volatile slag that is exceptionally difficult to air-cool may necessitate the immediate quenching provided by a water bath.
In scenarios where the plant frequently fires off-specification fuels that generate massive, unpredictable clinkers, the thermal shock provided by the water bath is sometimes the only reliable method for fracturing the slag before it reaches the crusher. For these specific applications, the robust simplicity of a wet system outweighs the efficiency gains of a dry alternative.
Dry systems are the standard for modern power generation facilities. They are mandatory for plants operating in water-scarce regions or those forced to comply with strict zero-liquid discharge (ZLD) environmental mandates. New builds and major modernization projects specify dry conveyors to maximize thermal efficiency and reduce the overall carbon footprint of the facility. Plants that have established off-take agreements to supply bottom ash to the construction sector must use dry systems to ensure the ash meets the required quality and moisture specifications.
The push towards decarbonization and strict environmental compliance makes dry handling the default choice for any facility looking to operate beyond the next decade. The ability to completely eliminate a complex wastewater stream while simultaneously improving boiler heat rate provides a dual benefit that aligns with modern operational goals.
Converting a wet system to a dry system is a common modernization project, but it carries specific implementation risks. Engineers must assess the spatial constraints beneath the existing boiler to ensure the dry transition chute and mechanical seals can fit within the footprint previously occupied by the water trough. Structural modifications are often required to accommodate new boiler expansion joints and to balance the combustion air intake, accounting for the air drawn through the conveyor.
Risk mitigation requires phased installation planning. Retrofits must be scheduled during major planned outages to prevent extended, unbudgeted downtime. Pre-assembling conveyor sections and conducting rigorous 3D modeling of the boiler undercarriage are standard practices to ensure a smooth transition from wet to dry handling. Plant operators must also receive updated training on managing boiler draft and monitoring the new mechanical air seals, as the operational dynamics shift significantly after a retrofit.
Submerged scraper conveyors remain a functional legacy choice for specific applications, but dry slag conveyors represent the industry standard for modern, efficient, and environmentally compliant power generation. The shift toward dry handling is driven by the need to eliminate wastewater, recover thermal energy, and produce a saleable byproduct. Base your final technology selection on local environmental regulations, potential efficiency gains, and the physical characteristics of your specific ash output.
Conduct a site-specific feasibility study to evaluate the spatial constraints beneath your boiler for a potential dry system retrofit.
Perform a baseline boiler efficiency audit to quantify the potential fuel savings achievable through sensible heat recovery.
Consult with metallurgical specialists to upgrade existing wet or dry system wear parts to high-performance alloy scrapers and chains.
Analyze local environmental regulations regarding wastewater discharge to determine compliance timelines for your current ash handling setup.
A: Dry slag conveyors are engineered to handle bottom ash entering the transition chute at temperatures up to 900°C to 1100°C. They utilize controlled ambient air cooling and specialized heat-resistant alloys to manage these extreme temperatures without structural failure.
A: A submerged system utilizes a mechanical water dip tube or dip plate that extends from the bottom of the boiler casing directly into the water-filled trough. This creates a hydrostatic seal that prevents the loss of negative pressure in the furnace and stops outside air from entering.
A: Slag is highly abrasive, dense, and heavy. Using strong alloys prevents premature scraper deformation, resists the grinding action of the ash, prevents chain snapping under high tension, and ultimately avoids costly unplanned boiler outages.
A: Yes, retrofits are common in the industry. However, they require careful engineering to manage space constraints beneath the boiler, structural modifications for new transition chutes, and adjustments to the boiler's combustion air control system.
A: Dry systems recover sensible and radiant heat from the cooling ash. The ambient air used for cooling absorbs this heat and is drawn back into the boiler as pre-heated combustion air, directly reducing the amount of fuel required to heat the furnace.
A: Global trends toward Zero Liquid Discharge (ZLD) and specific regulations, such as the US EPA’s Effluent Limitation Guidelines (ELGs), restrict or heavily penalize the discharge of bottom ash transport water, forcing plants to adopt dry handling methods.
A: Key indicators include severe wear profile deformation on the scraper flights, uneven chain tracking, visible cracks in the alloy structure, and loud grinding or popping noises emanating from the conveyor trough during operation.
