Procuring equipment for extreme industrial environments leaves no room for error. When moving molten, highly abrasive materials in steel mills, foundries, or incineration plants, equipment failure carries severe operational and financial consequences. Standard bulk material handling systems degrade rapidly under extreme heat, heavy bulk density, and sharp, abrasive edges. This rapid degradation leads directly to unscheduled downtime, compromised safety, and blocked production lines.
Slag handling requires specialized engineering. You cannot rely on generic load averages or standard conveyor components. A dedicated slag conveyor must be specified to endure massive thermal shock, continuous impact, and relentless abrasion. The structural integrity of the entire system depends on matching exact material characteristics with heavy-duty mechanical design. This guide provides a structured, engineering-first evaluation framework to help procurement and plant managers specify the correct equipment, guaranteeing continuous operation and minimizing maintenance overhead.
Material-Specific Engineering: Slag conveyors must be specified based on exact material characteristics, including peak temperature, bulk density, and abrasiveness, rather than generic load averages.
Component Durability is Non-Negotiable: The longevity of the system relies heavily on specialized wear parts, specifically a strong drive sprocket and heat-resistant pans or belts.
Pre-Purchase Testing Mitigates Risk: Running material analysis and laboratory testing on specific slag samples prevents cohesive sticking and premature mechanical degradation.
Maintenance Accessibility Dictates Lifecycle Costs: Systems designed with modular wear parts, open-access lubrication points, and non-proprietary spares significantly reduce the overall expenses by minimizing repair downtime.
Customization Over Commoditization: Retrofitting a slag handling system requires precise dimensional planning, lead-time management, and structural integration to accommodate thermal expansion and existing plant layouts.
Before reviewing conveyor specifications, you must audit the specific type of slag your facility produces. Blast furnace slag, steelmaking slag, and municipal solid waste incinerator (MSWI) bottom ash behave very differently on a mechanical level. Blast furnace slag often cools into hard, glass-like fragments that slice through standard rubber belts. Steelmaking slag frequently contains heavy metallic inclusions and tramp iron that cause massive impact damage. MSWI bottom ash contains unpredictable debris, varying moisture levels, and corrosive elements.
Thermal parameters dictate the foundational materials of the conveyor. Establish the absolute maximum material surge temperature and calculate the expected cooling rates during transit. If the material hits the conveyor at 1,000°C, standard steel components warp immediately. You must also evaluate physical properties by measuring abrasiveness using the Mohs hardness scale and determining the bulk density. High bulk density requires significantly stronger structural supports and higher motor torque.
Slag Type | Typical Bulk Density (lbs/ft³) | Primary Handling Challenge | Recommended Conveyor Adaptation |
|---|---|---|---|
Blast Furnace Slag | 100 - 130 | Extreme abrasiveness, glass-like shards | Abrasion-resistant (AR) steel pans, heavy-duty side skirts |
Steelmaking Slag | 150 - 180 | High impact from heavy metallic inclusions | Manganese steel impact plates, reinforced structural frames |
MSWI Bottom Ash | 60 - 90 | Corrosive moisture, unpredictable debris | Corrosion-resistant coatings, self-cleaning drive mechanisms |
Pre-purchase laboratory testing on slag samples prevents catastrophic field failures. Testing evaluates cohesiveness, which is especially important for wet-quenched slag. Wet slag tends to clump, causing blinding or severe chute blockages. Testing identifies these risks before installation. Finally, determine if the slag must be preserved as high-value aggregate. If so, the conveyor must handle the material gently to prevent friability. If material breakdown during conveyance is acceptable, a more aggressive handling method can be utilized.
The physical layout of your facility heavily influences conveyor design. Map the installation footprint accurately. Determine the required elevation and incline angles, calculate drop heights from hoppers, and measure available clearance zones. A system designed for a straight, flat run will fail if forced into a steep incline without proper modifications. Drop heights are particularly important; a ten-foot drop of dense steel slag requires massive impact beds to absorb the kinetic energy.
Establish the operational duty cycle. Continuous 24/7 heavy-duty operation accelerates component fatigue much faster than batch processing. The conveyor must be engineered for the specific duty cycle to prevent premature failure. Environmental hazards also play a major role. Account for extreme ambient temperatures, heavy dust generation, and moisture or corrosion risks, particularly if water quenching systems are used nearby.
Evaluate system portability and layout flexibility. Determine whether the conveyor needs to be permanently stationary or if it should be designed with semi-portable modules. Modular designs accommodate future plant reconfigurations much easier than rigid, continuous welded structures. In many older foundries, space is highly restricted, requiring custom-engineered transition chutes and tight-radius curves.

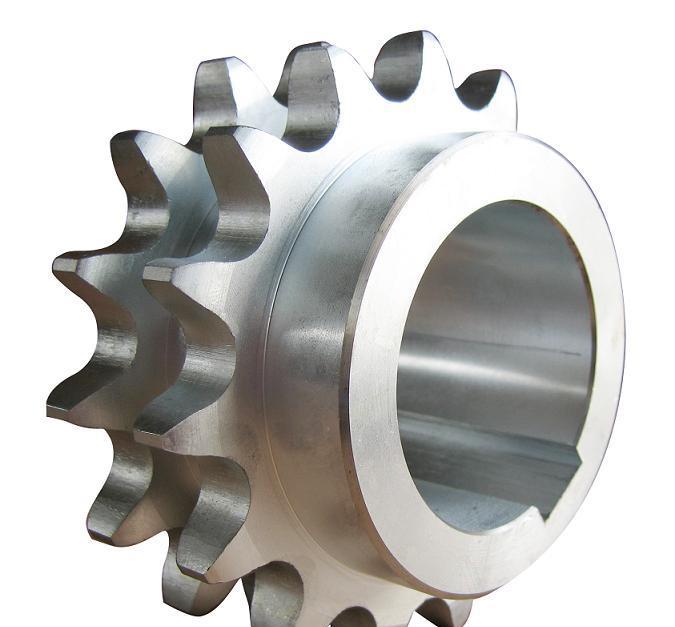

The drive system bears the brunt of the operational load. A Strong Drive Sprocket is the absolute linchpin of a heavy-duty slag conveyor. It prevents chain slippage and tracking issues under massive torque loads. When moving tons of dense, hot slag, standard sprockets wear down quickly, leading to chain derailment and catastrophic system failure. The sprocket must engage the chain perfectly, even when the chain is stretched from thermal expansion or packed with abrasive dust.
Evaluate the metallurgy and tooth profile of the sprocket. Induction-hardened steel alloys provide the necessary resistance to continuous friction. Look for self-cleaning tooth profiles designed to shed abrasive slag debris. If debris builds up in the sprocket teeth, it increases chain tension artificially, accelerating wear on the entire drive train and potentially snapping the chain under load.
Consider maintenance and replacement engineering. Split-sprocket designs offer significant advantages. They allow maintenance teams to perform rapid replacements without dismantling the entire drive shaft assembly, drastically reducing downtime. Weigh the risks of proprietary sprocket designs against standardized options. Proprietary designs lock your plant into single-source vendors, which can cause severe delays if parts are out of stock. Standardized, high-durability options offer better supply chain security.
The conveying medium must withstand direct impact and extreme heat. Heavy-duty apron or pan conveyors are generally preferred for molten or highly abrasive slag. Specialized heat-resistant rubber or steel mesh belt conveyors may be suitable for cooler, less abrasive ash, but they often degrade quickly under the harsh conditions of steel mill slag.
Heavy-Duty Apron Pans: Best for high-impact, high-temperature applications. Formed from thick steel plates, they overlap to prevent material leakage.
Cast Manganese Pans: Ideal for extreme impact zones. Manganese work-hardens under impact, increasing its durability over time.
Steel Mesh Belts: Suitable for air-cooling applications where airflow through the material is required, though less resistant to heavy impact.
Heat-Resistant Rubber Belts: Only viable for fully quenched, low-temperature slag. Highly susceptible to tearing from sharp tramp metal.
Preventing fine slag leakage is a primary design concern. Abrasive fines will jam chains and destroy bearings if they escape the conveying medium. Ensure the structural design includes overlapping pans or high side wing plates to contain the material completely. The metallurgical selection for pans is equally important. Manganese steel or high-grade abrasion-resistant (AR) plates provide the necessary impact resistance and thermal thresholds to survive continuous loading.
Carrying white-hot slag causes significant thermal expansion in metal components. A 100-foot steel conveyor can expand several inches when exposed to 800°C material. The mechanical engineering must accommodate this expansion to prevent warping and structural failure. Look for designs incorporating expansion joints and spring-loaded take-ups to handle the expansion of chains, pans, and frames dynamically.
Integrated cooling systems may be necessary depending on the transit distance and initial material temperature. Evaluate forced-air cooling systems, water-cooled jackets, or simply extending the conveyor run to allow natural heat dissipation before the slag reaches the discharge point. Proper heat management protects both the conveyor and downstream equipment, preventing secondary fires in storage bunkers.
Sizing a slag conveyor based on average throughput is a dangerous mistake. Surge events happen regularly in foundries and mills. If the system is only built for the average load, a sudden surge will cause catastrophic structural failures or stall the drive motor completely. Always design for the peak load. A furnace tap might release 20 tons of slag in three minutes, even if the daily average is only 5 tons per hour.
Calculate the absolute heaviest surge load and the maximum lump size the conveyor will encounter. The structural frame, pans, and drive system must handle this maximum capacity without strain. Motor and drive sizing must also account for these surges. Determine the starting torque and horsepower requirements needed to restart a fully loaded conveyor from a dead stop. If the power goes out during a surge, the motor must be strong enough to move the dead weight upon restart without burning out.
Determine the correct width-to-speed ratio. A wider conveyor running at a slower speed is generally better for abrasive materials. It ensures material does not overflow while keeping conveying speeds low, which minimizes abrasive wear on the pans and side skirts. High-speed conveying of slag acts like a sandblaster, destroying steel components rapidly.
Evaluate safe incline angles for your specific slag type. Consider the material's friction coefficient. If the incline is too steep, material rollback will occur, causing spills and jamming the tail section. Deep-pan designs or cleats are often required for steeper inclines. Assess containment requirements, including side skirt thickness and flight heights, to safely hold surging, non-uniform slag blocks without spillage.
Incline Angle | Conveying Medium Requirement | Risk of Material Rollback |
|---|---|---|
0° - 15° | Standard overlapping pans | Low |
16° - 30° | Deep-drawn pans or low cleats | Moderate (requires careful speed control) |
31° - 45° | High cleats, bucket-style pans | High (requires strict containment) |
Maintenance accessibility directly impacts plant uptime. Evaluate modular component access. Can individual pans, rollers, or chain links be replaced quickly without breaking the entire continuous loop? Systems designed for quick component swaps save hours of maintenance labor. In a hot, dirty environment, mechanics need to get in, swap the part, and get out quickly.
Assess the safety and placement of inspection doors, automatic lubrication systems, and manual tensioning points. Maintenance teams are more likely to perform routine checks if the access points are safe and easy to reach. Check vendor policies on spare parts availability. Ensure critical spares, such as the drive sprockets, chains, and wear liners, are stocked locally or are readily fabricable to avoid long shipping delays.
Evaluate the vendor's production and shipping timelines against your planned plant shutdowns. Missing a shutdown window due to delayed equipment delivery causes massive logistical problems. Assess the complexity of retrofitting a new conveyor into tight, pre-existing structural footprints. The design should integrate without requiring major building modifications.
Look for self-aligning engineering features. Self-aligning bearings and tracking systems mitigate structural shifting and installation misalignment risks, ensuring the conveyor runs true from day one. Misalignment during installation is a primary cause of premature chain wear and sprocket failure.
Modern conveyors should integrate condition monitoring sensors. Review compatible sensor suites, including bearing temperature probes, chain-stretch monitors, vibration sensors, and zero-speed switches. These sensors detect early signs of failure before they cause a breakdown. A vibration sensor can detect a failing bearing weeks before it seizes completely.
Evaluate how these sensors interface with the plant’s master DCS/SCADA systems. Proper integration enables proactive shutdowns and alerts maintenance teams to developing issues, preventing catastrophic mechanical failures and extending the life of the equipment.
Compare cheap, standardized bulk handling systems with high-end, custom-engineered slag conveyors. The initial price tag of a custom system is higher, but the operational durability pays off rapidly. Standard systems fail within months under slag duty, requiring constant part replacements and causing massive production losses.
Demonstrate how specifying thicker wear plates, premium metallurgy, and a robust drive sprocket dramatically reduces downtime, yielding a lower overall lifecycle cost. Spending an extra twenty percent upfront on AR400 steel pans and induction-hardened sprockets can triple the lifespan of the conveyor.
Evaluate the power consumption of different drive configurations under full load. Oversized motors waste energy, while undersized motors burn out. Proper engineering matches the motor and gearbox to the exact peak load requirements.
Detail the long-term energy and wear savings gained by using Variable Frequency Drives (VFDs) to match conveyor speed with real-time kiln or furnace output. Running the conveyor slower during low-output periods reduces abrasive wear and cuts electrical consumption significantly.
Procuring equipment for extreme environments requires prioritizing durability over initial cost. Over-engineering for peak load, extreme thermal variation, and severe abrasion is the only verifiable way to ensure plant reliability. A system built to handle the worst-case scenario will perform consistently under normal conditions. Prioritize vendors who offer comprehensive pre-purchase material testing, provide transparent engineering calculations, and demonstrate a track record of successful installations in similar environments.
Compile a detailed slag characteristics sheet including peak temperature, bulk density, and water content.
Map the exact physical dimensions, drop heights, and incline requirements of your installation area.
Schedule an engineering consultation and site audit with qualified manufacturers to review your specific data.
Request laboratory testing on your specific slag samples before finalizing any equipment design.
A: High-end systems using specialized metallurgy, such as heat-resistant alloys and integrated cooling jackets, can handle material surge temperatures exceeding 1,000°C. The exact limit depends on the specific design, transit time, and cooling mechanisms employed.
A: Slag is exceptionally heavy and dense. A robust drive sprocket prevents chain slippage, handles massive torque loads during surge events, and resists the severe abrasive wear caused by slag dust, ensuring the continuous loop operates without stalling.
A: Standardized parts generally offer better supply chain security and faster replacement times. Proprietary parts lock you into a single vendor, which can cause extended downtime if the vendor experiences manufacturing delays or parts are out of stock.
A: Wet-quenched slag is highly cohesive and prone to clumping, requiring designs that prevent blinding and chute blockages. Dry slag is typically more friable and generates significant abrasive dust, requiring heavy-duty wear plates and superior dust containment strategies.
A: Mechanical engineers incorporate expansion joints, slotted mounting holes, and spring-loaded take-up assemblies. These features allow the metal chains, pans, and frames to expand and contract naturally under extreme heat without warping or breaking structural welds.
A: The most frequently replaced components are the drive sprockets, chain links, carrying rollers, and the impact pans or wear liners. These parts endure the highest levels of continuous friction, impact, and thermal stress during normal operation.
A: Yes, but it requires precise dimensional planning. Modular conveyor designs and custom-engineered transition chutes allow new systems to fit into tight, pre-existing footprints without requiring major structural modifications to the facility building.
