Slag handling presents one of the most severe operational environments for bulk material transport. Abrasive, high-temperature materials accelerate equipment degradation much faster than standard aggregates. Running scraper blades to failure introduces severe financial and operational risks. Unchecked carryback and fugitive material accumulation lead to compounding costs from continuous manual cleanup and premature belt wear. To mitigate these risks, facilities must implement a proactive, data-driven replacement schedule. This guide provides a technical framework for evaluating scraper wear. You will learn how to assess cleaning efficiency drop-offs and determine exactly when to upgrade materials to minimize downtime on your slag conveyor.
Carryback is the Leading Indicator: A measurable increase in fugitive material along the conveyor line is the primary signal that blade-to-belt contact has been compromised.
Structural Integrity Matters: Vibration, deflection, and frame deformation are critical failure points that necessitate immediate scraper replacement, regardless of blade thickness.
Material Upgrades Drive ROI: Transitioning from standard materials to a Strong Alloy Conveyor Scraper significantly extends maintenance intervals in high-temperature slag applications.
System Alignment is Critical: Replacing the scraper requires concurrent evaluation of the slag extractor conveyor chains for wear and elongation to ensure proper system tensioning.
Unified Systems Optimize Maintenance: Utilizing innovative dual-scraper designs where primary and secondary cleaners share a single tensioning or mounting frame can dramatically reduce maintenance overhead and spatial footprints in tight discharge chutes.
Carryback in slag handling refers to the highly abrasive, dense, and thermally active particles that cling to the return side of the belt. When a scraper blade degrades, it loses the precise pressure required to shear this material away. The resulting fugitive material spills continuously along the conveyor path. This unchecked release creates compounding operational costs. Environmental compliance risks increase as hazardous dust and debris accumulate. Maintenance teams must dedicate excessive labor hours to manual cleanup, diverting resources from critical preventative maintenance tasks. In heavy industrial settings, the volume of fugitive material can reach tons per week if the primary cleaner fails. This material often hardens as it cools, requiring pneumatic tools to remove it from walkways and structural supports. The labor drain alone justifies a strict replacement schedule for cleaning blades.
Ineffective scrapers allow abrasive slag particles to bypass the cleaning station entirely. These hardened particles embed themselves into the return rollers, pulleys, and the belt cover itself. The friction generated by trapped slag accelerates the degradation of these expensive components. Replacing heavily scored belts and seized idlers requires significant capital expenditure. Comparing the relatively low cost of a timely scraper replacement against the massive expense of a full belt replacement highlights the necessity of proactive maintenance. Protecting the belt surface is the primary function of any scraper system. When slag gets trapped between the belt and a return idler, it acts like a grinding wheel, stripping away the rubber cover and exposing the internal carcass to moisture and further mechanical damage.
Material spillage creates immediate safety hazards across the facility. Accumulations of fugitive slag introduce severe slip and trip hazards for plant personnel. Hot slag carryback also presents a significant fire risk if it contacts combustible dust or unprotected structural components. Beyond safety, material buildup on tail pulleys alters the belt's tracking profile. This uneven diameter forces the belt to drift, leading to severe misalignment. Misaligned belts rub against conveyor structures, causing edge damage and triggering unexpected system shutdowns. A wandering belt will eventually spill even more material off the sides, creating a feedback loop of inefficiency and mechanical strain that degrades the entire material handling infrastructure.
The primary cleaner sits directly at the head pulley, positioned just below the material trajectory. Its function is to remove the bulk of the material before the belt leaves the pulley. Maintaining a positive-rake position—angled against belt and pulley movement at approximately 30 to 45 degrees—places immense mechanical stress on the blade. It must absorb the initial impact of heavy, hot slag continuously. Inspectors should look for specific wear patterns on these primary blades. Uneven edge wear indicates improper tensioning, while thermal cracking suggests the material cannot withstand the operational temperatures. When the primary blade loses its sharp edge, it begins to hydroplane over the wet or fine slag, leaving a thick layer of material for the secondary system to handle.
Secondary cleaners operate further down the return run, typically just past the head pulley. Their role is to scrape away the fine, embedded slag particles that manage to bypass the primary cleaner. If the primary scraper fails or wears down, the secondary scraper takes on a material load it was not designed to handle. This overload causes the secondary blades to chatter and vibrate against the belt. Vibration accelerates wear, destroys the blade edge, and drastically reduces overall cleaning efficiency. Secondary scrapers require a smooth, consistent belt surface to function correctly. When they are forced to act as primary cleaners, their mounting brackets often bend under the excessive material weight.
Modern conveyor engineering favors unified scraper systems. In these designs, primary and secondary conveyor belt scrapers share a single mounting or tensioning frame. This integration reduces the mechanical footprint significantly, making it ideal for compact slag discharge chutes. Unified systems simplify the tensioning process, allowing maintenance teams to adjust both cleaners simultaneously or from a single access point. Eliminating the need for separate, bulky installation frames reduces maintenance overhead and streamlines the replacement process during tight outage windows. Mechanics can swap out both blade cartridges from one side of the conveyor, keeping them out of confined spaces and reducing exposure to hazardous areas.
Visual inspections remain the most direct method for evaluating scraper health. Maintenance personnel must verify that the blade maintains consistent pressure across the entire width of the belt. A worn blade loses its original profile, often rounding off or developing a wavy edge. You must measure blade deflection to determine if the material has fatigued. When a blade deflects too far backward under load, it loses its scraping angle. Once a blade wears past its tensioning limits—meaning the tensioner can no longer push the blade firmly against the belt—immediate replacement is required.
Lock out and tag out the conveyor system before approaching the head pulley.
Shine a flashlight directly at the contact point to check for visible daylight between the blade edge and the belt surface.
Measure the remaining urethane or alloy against the manufacturer's wear line using a standard caliper.
Inspect the blade for deep gouges or missing segments caused by mechanical splices passing over the cleaner.
Verify that the tensioning spring or air bladder has remaining travel distance to accommodate future adjustments.
Inadequately rated or heavily worn conveyor belt cleaners will begin to vibrate violently under heavy load. This chatter damages the belt cover and shatters brittle scraper materials. Inspect the mounting frame and tensioning mechanisms for signs of metal fatigue. Bending, twisting, or deformation of the mainframe reduces the system's ability to hold the blade rigid. If the frame deflects during operation, the cleaning performance drops to zero. Vibration analysis tools or simple tactile inspections can confirm if the frame requires reinforcement or complete replacement alongside the blade. Look for cracked welds on the mounting brackets, as these are early indicators that the system is absorbing too much kinetic energy.
Scraper performance relies heavily on the stability of the overall drive system. You must check the wear and elongation of the slag extractor conveyor chain regularly. Chain deformation alters the tension and tracking of the entire system. When the chain elongates unevenly, it changes the scraper's angle of attack against the belt or flight path. This misalignment confirms whether you need to replace the entire assembly or just the blade. Implement a coordinated, simultaneous inspection protocol for both the chain and the scrapers to prevent mismatched wear and ensure optimal system tensioning. A stretched chain will cause the belt to surge, which repeatedly slams the mechanical splices into the scraper blade, causing catastrophic failure.
Standard polyurethane or basic carbide blades frequently fail prematurely in slag applications. The extreme temperatures of freshly processed slag easily exceed the thermal degradation threshold of standard plastics. Polyurethane melts, smears, or hardens into a brittle mass that shatters upon impact. Basic carbide, while hard, often lacks the impact resistance required to handle heavy, jagged slag fragments. These standard materials force maintenance teams into a cycle of constant replacements, driving up labor costs and increasing system downtime. When polyurethane melts onto a hot belt, it creates a sticky residue that actually attracts more fine slag, worsening the carryback problem.

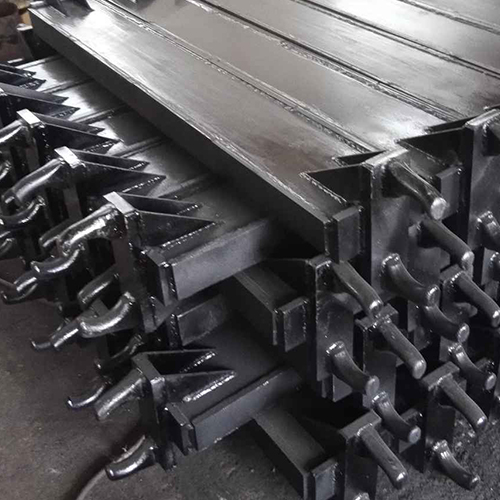

Upgrading to a Strong Alloy Conveyor Scraper provides a robust solution for severe duty environments. These specialized scrapers offer distinct metallurgical advantages. They feature exceptionally high abrasion resistance, allowing them to maintain a sharp shearing edge for months rather than weeks. Thermal stability ensures the blade does not warp or lose its temper when exposed to hot slag. Furthermore, strong alloy compositions resist impact fracturing, absorbing the shock of heavy material surges without chipping or breaking. The structural rigidity of these alloys means they require fewer tensioning adjustments over their operational lifespan.
Material Type | Abrasion Resistance | Thermal Stability | Impact Tolerance | Replacement Frequency |
|---|---|---|---|---|
Standard Polyurethane | Low | Poor (Melts/Smears) | High | Very High |
Basic Tungsten Carbide | High | Moderate | Low (Brittle) | Moderate |
Strong Alloy | Very High | Excellent | High | Low |
Calculating the lifecycle return on investment requires looking beyond the initial purchase price. Strong alloy scrapers carry a higher initial procurement cost. However, you must compare this against the drastic reduction in replacement frequency. Fewer replacements mean decreased maintenance downtime and lower labor expenditures. Most importantly, a highly effective alloy scraper extends the life of the conveyor belt by preventing abrasive carryback from destroying the cover. The long-term savings in belt preservation and uninterrupted production easily justify the initial upgrade investment. Facilities that track their maintenance hours often find that the labor saved by not having to shovel fugitive material pays for the alloy upgrade within the first quarter of operation.
Installing a new scraper requires precise technical execution. Improper tensioning will immediately ruin a new blade or cause severe damage to the belt splice. You must calibrate the tensioner to match the specific hardness and profile of the new blade. Over-tensioning generates excessive heat and friction, while under-tensioning allows carryback to slip through. Unified or shared-mount dual scraper assemblies require specialized tensioning adjustments to ensure both the primary and secondary blades engage the belt with the correct proportional force. Always use a torque wrench when setting the tensioning springs to ensure the pressure matches the manufacturer's exact specifications for that specific belt width and speed.
Efficient replacement strategies minimize operational disruptions. Schedule scraper replacements during planned facility outages whenever possible. To further reduce downtime, utilize modular scraper designs. These systems allow maintenance technicians to slide worn blades out of a track and insert new ones without unbolting the entire mainframe. Quick blade change-outs keep maintenance windows short and ensure the conveyor returns to production rapidly. Pre-assembling the new scraper cartridge before shutting down the belt saves valuable minutes during the installation process. Having all necessary tools, replacement pins, and tensioning gauges staged at the head pulley before the belt stops is a critical best practice for heavy industry.
The replacement process does not end when the conveyor restarts. Establish a strict 30-day monitoring protocol post-replacement. Maintenance personnel must check the blade for proper seating against the belt profile. Monitor the discharge zone to verify optimal carryback reduction. Listen and watch for any signs of vibration or chatter, which indicate that the tension requires fine-tuning. Regular adjustments during the initial break-in period ensure the new scraper achieves its maximum operational lifespan. Document the tension settings and wear measurements weekly during this initial phase to establish a baseline for future predictive maintenance schedules.
Conduct a comprehensive carryback audit along the entire length of your conveyor to establish a baseline for current scraper performance.
Inspect the mounting frames and tensioning mechanisms for any signs of deflection, metal fatigue, or structural bending.
Evaluate your current blade materials and transition to high-temperature, abrasion-resistant alloy options if standard polyurethane is failing prematurely.
Implement a concurrent inspection schedule that evaluates both scraper blade wear and chain elongation simultaneously.
Consult with a conveyor engineering specialist to calibrate the tensioning system perfectly upon installing any new scraper blades.
A: The lifespan varies significantly based on operational variables. Tonnage, material temperature, belt speed, and blade composition dictate longevity. Standard polyurethane may last only weeks in hot slag, while a strong alloy scraper can perform effectively for several months under the same severe conditions.
A: Vibration typically results from a combination of worn blades, inadequate tensioning, and frame deformation. If the tensioner cannot hold the blade firmly against the belt, the blade bounces. High belt speeds exacerbate this chatter, leading to rapid blade destruction and potential belt damage.
A: You measure chain wear by checking pitch elongation. Measure the distance across a set number of links and compare it to the manufacturer's original specifications. Additionally, inspect the pins and bushings for deep scoring or structural deformation that indicates imminent failure.
A: A primary cleaner should be installed in a positive-rake position. This means the blade is angled against the direction of belt and pulley movement, typically at an angle of approximately 30 to 45 degrees, to shear material effectively.
A: Slag is exceptionally abrasive and often retains high heat. Strong alloy scrapers provide superior thermal resistance and extreme abrasion tolerance compared to standard plastics or mild steel. They maintain their structural integrity and scraping edge in environments that destroy conventional materials.
A: Carryback is the residual material that clings to the belt past the discharge point. It drops off along the return run, requiring constant manual cleanup. This fugitive material embeds into idlers and pulleys, accelerating component wear and drastically increasing maintenance costs.
A: Shared-mount systems reduce the required installation space in tight discharge chutes. They simplify maintenance by providing single-point tensioning for both cleaners, lowering overall maintenance overhead and reducing the time required for blade replacements.
