Handling slag destroys standard material handling equipment. Ambient heat, extreme abrasion from sharp particulates, and heavy, irregular loads create a hostile environment. When molten or cooling slag drops onto a conveying surface, sudden thermal shock and mechanical impact test every structural component. Standard chains and drives cannot survive these conditions. Premature component failure in a slag conveyor results in catastrophic unplanned downtime. When the conveyor stops, the entire primary metallurgical or power generation process bottlenecks. Maintenance crews execute dangerous repairs in high-heat environments. Mitigating these risks requires moving beyond basic conveyor specifications. We provide a technical evaluation framework for selecting the specific chain, drive units, and power transmission components engineered for slag handling survivability.
Standard roller chains are insufficient for slag applications; engineered chains and specific configurations like the circular chain are required to withstand high-particulate abrasion and thermal stress.
The friction interface—specifically the metallurgical composition and hardening of pins, bushings (acting as high-durability bearings), and rollers—dictates the operational lifespan of the entire conveyor system.
Drive component selection must prioritize high-torque, low-speed power transmission with built-in overload protection to handle irregular slag surges without shearing drive shafts.
Slag is exceptionally dense, highly abrasive, and structurally unpredictable. Bulk density often exceeds 1,200 to 1,500 kg/m³. This places immense static and dynamic loads on the conveyor structure. Temperature variations add another layer of complexity. Components face ambient temperatures exceeding 800°C during direct loading. Rapid cooling cycles follow if water quenching is utilized. This thermal cycling causes continuous expansion and contraction. It seizes tight-tolerance moving parts and causes brittle fractures in improperly heat-treated steels. Fine slag dust penetrates every exposed crevice. It acts as a grinding paste that rapidly erodes moving surfaces.
You must account for the physical state of the material. Slag can transition from a viscous liquid to a glass-like solid within minutes. When it solidifies, it forms jagged, interlocking clinkers. These clinkers wedge between chain links and sprocket teeth. If the drive system lacks the torque to crush these obstructions, the entire line stalls. We see this frequently in bottom ash handling systems where operators underestimate the shear force required to clear jammed flights.
A successful Slag Conveyor implementation relies on stringent performance metrics. Mean Time Between Failures (MTBF) must align with scheduled plant shutdowns. This typically requires thousands of continuous operational hours before major maintenance. Load capacity thresholds must account for surge loading. Large, solidified chunks of slag drop unexpectedly onto the line. The system must absorb these shock loads without shearing pins, stalling motors, or permanently deforming the chain links.
Operational Hazard | Impact on Conveyor System | Required Engineering Response |
|---|---|---|
Extreme Temperatures (800°C+) | Thermal expansion, loss of tensile strength, lubricant burn-off. | High-alloy steel selection, dry film lubrication, engineered clearances. |
High Abrasiveness | Rapid wear on pins, bushings, and sprocket teeth. | Deep case hardening, induction-hardened wear surfaces. |
Surge Loading / Heavy Clinkers | Mechanical jamming, chain elongation, motor stalling. | High-torque gearboxes, shear pin sprockets, oversized chain plates. |
Water Quenching | Corrosion, thermal shock, abrasive slurry formation. | Corrosion-resistant alloys, open-link chain designs. |
Understanding how components fail dictates how you specify them. Chain elongation is a primary failure mode. It is driven not by the stretching of the steel plates, but by the internal wear of pins and bushings ground down by abrasive dust. Sprocket tooth wear occurs when elongated chains no longer pitch correctly. The chain rollers grind against the sprocket teeth. Motor burnout happens when irregular slag chunks jam the mechanical path. The drive system draws excessive current until thermal overloads trip or mechanical linkages shear.
We also observe frequent bearing failures on the tail shafts. Tail shafts operate in the dirtiest section of the conveyor housing. When seals fail, slag grit destroys the rolling elements within hours. Specifying the correct labyrinth seals and automated purge systems prevents this specific failure mode.
Standard roller chains fail rapidly under slag conditions. They lack the tensile strength required to pull dense slag beds. They feature tight clearances that easily trap abrasive particulates. When slag dust ingresses into a standard chain, it crushes internal clearances and accelerates wear. Standard side plates buckle under the heavy, uneven loads characteristic of bulk slag handling.
Field experience shows that standard chains snap under shock loads. When a 500 kg slag boulder hits a standard chain, the side plates yield. The pin shears. The line goes down. You cannot use off-the-shelf power transmission chains for bulk material dragging.
Engineered chains maintain structural integrity under high-density loads. They feature thicker side plates and heavy-duty cross-sections. This prevents the slag from crushing, jamming, or tipping the chain links. This robust geometry ensures that even when large slag boulders drop onto the conveyor, the chain path remains true. It prevents derailments that halt production.
Specifying an engineered chain requires strict attention to metallurgy. High-alloy steels are mandatory. Components require deep case hardening to resist abrasive wear while maintaining a ductile core. This absorbs shock loads without shattering. Increased plate thickness provides the necessary rigidity to resist torsional forces when unevenly loaded.
Specify a minimum side plate thickness based on the maximum anticipated surge load, not the average running load.
Require material certifications for all steel batches to ensure proper alloy composition.
Verify the depth of the case hardening on pins and bushings. Surface hardening alone will wear away in weeks.
Ensure the chain manufacturer utilizes precision punching for side plate holes to maximize pin interference fit.

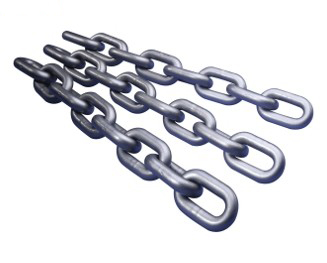

The structural advantages of a Circular Chain make it highly effective in heavy-duty drag or scraper configurations. Unlike pin-and-bush designs, round link chains consist of interlocking forged steel rings. This design inherently allows for multi-directional flexibility. It eliminates the internal pin-to-bushing wear points that plague traditional chains in abrasive environments.
The continuous loop of a forged ring distributes stress evenly. There are no weak points like cotter pins or press-fit joints. When a scraper flight catches on a welded seam in the conveyor trough, the circular chain flexes rather than snapping.
When evaluating a circular chain against traditional engineered chains, self-cleaning properties stand out. The open geometry of the interlocking rings prevents material packing. As the chain articulates around the drive sprockets, accumulated slag dust is naturally forced out. The wear resistance of forged, case-hardened round links provides exceptional longevity in high-debris environments where traditional rollers seize.
Specific slag handling scenarios demand this architecture. Submerged ash and slag conveyors benefit immensely from round link designs. The chain operates underwater to quench hot material. The water acts as a carrier for abrasive grit, which destroys a pin-and-bush chain. In bottom ash handling, the circular chain provides superior reliability. It easily cuts through settled, hardened material and prevents catastrophic jamming.
In traditional engineered chains, bushings act as specialized bearings between pins and rollers. They reduce internal friction as the chain articulates around sprockets. Managing this friction is critical. Excessive internal friction leads to rapid material loss on the pins, resulting in chain elongation. Once a chain elongates beyond its design tolerance, it no longer engages the sprockets correctly. This causes destructive wear across the entire drive system.
Technical evaluation criteria for these friction interfaces must be stringent. Induction hardening creates a highly wear-resistant outer layer on pins and bushings. Specialized coatings reduce the coefficient of friction. Tight manufacturing tolerances ensure even load distribution across the bearing surfaces. This prevents localized pressure points that accelerate wear.
Component | Primary Function | Required Hardness / Treatment |
|---|---|---|
Pin | Bears the tensile load and acts as the inner bearing surface. | Induction hardened (55-60 HRC) with a ductile core. |
Bushing | Absorbs wear from the pin and the sprocket tooth. | Deep case hardened, precision ground inner diameter. |
Roller | Reduces friction against the conveyor track and sprocket. | Through-hardened or heavily case hardened. |
Side Plate | Maintains chain pitch and structural integrity. | Heat-treated high-carbon or alloy steel. |
Engineers face a distinct trade-off regarding clearances. Tight clearances keep abrasive dust out of the internal bearing surfaces but risk seizing when components undergo thermal expansion from hot slag. Loose clearances accommodate thermal growth but allow particulate ingress. The optimal design utilizes specific wear allowances and labyrinth-style sealing geometries to balance these competing operational demands.
Sizing motors and gearboxes for a slag conveyor requires precise mathematical and operational considerations. The system must generate massive starting torque to move heavy, settled loads that solidify during a temporary stoppage. Engineers calculate the breakaway torque required to overcome both the static friction of the system and the resistance of the embedded slag bed.
You cannot size the motor based on empty running conditions. We always calculate the worst-case scenario: a fully loaded trough that has sat idle for two hours, allowing the slag to cool and bind to the steel casing. The drive must break that bond without tripping the breakers.
The primary drive relies on a network of associated power transmission components. Drive shafts must be machined from high-tensile steel to resist torsional shearing. Heavy-duty spherical roller bearings support the shaft while accommodating minor misalignments caused by heavy loading. Flexible couplings sit between the motor and gearbox. They absorb shock loads and reduce mechanical stress on the primary drive components.
Continuous shock loading dictates the use of heavy-duty, enclosed gear reducers. These gearboxes must feature high service factors—often 2.0 or higher—to withstand the brutal operating conditions. Cast iron housings, oversized output shafts, and premium internal bearings ensure the gearbox survives the continuous vibration and torque spikes inherent to slag processing.
Drive sprockets endure immense physical punishment. Flame-hardened or induction-hardened sprocket teeth are absolute requirements to resist the grinding action of the chain. Segmented sprockets, featuring split hubs and replaceable tooth segments, offer a massive maintenance advantage. They allow maintenance teams to unbolt and replace worn teeth without removing the heavy drive shaft or breaking the continuous chain loop.
Always specify sprockets with an odd number of teeth if possible, to distribute wear evenly across the chain links.
Ensure the sprocket hub is keyed and shrink-fitted to the drive shaft to prevent wallowing under reversing loads.
Keep spare sprocket segments in local inventory to minimize downtime during replacement.
Chain drives face strict engineering constraints regarding center distances. Standard industrial chain drives limit center distances to roughly 3 meters. Industrial slag drag conveyors require highly customized, extended layouts. These extended distances introduce technical challenges such as catenary sag and chain whip. Managing these issues requires precise tension control systems and strategically placed return idlers to support the chain weight over long spans.
Conveyors inevitably jam on oversized slag chunks. Mechanical safeguards protect the motor and gearbox from catastrophic failure during these events. Shear pin sprockets provide a deliberate weak point that breaks under extreme torque. This disconnects the drive from the jammed chain. Fluid couplings offer a smoother alternative. They slip internally when load limits are exceeded, protecting the mechanical driveline without requiring immediate parts replacement.
Modern systems integrate electronic monitoring to complement mechanical safeguards. Variable Frequency Drives (VFDs) and torque monitoring systems track motor current in real-time. By establishing baseline current draws, these systems provide early warning of mechanical binding. If the current spikes rapidly, the VFD automatically shuts down the motor before mechanical limits are breached. This prevents severe equipment damage.
Improper initial alignment or poor tensioning leads directly to accelerated component failure. If the head and tail shafts are not perfectly parallel, the chain tracks to one side. This causes rapid, uneven wear on the sprocket teeth and chain side plates. Incorrect tensioning exacerbates this. A loose chain jumps the sprocket teeth under heavy load. An overly tight chain places destructive radial loads on the shaft bearings.
Robust take-up frames mitigate these risks. Hydraulic or heavy-duty spring-loaded take-ups automatically compensate for chain wear and thermal expansion during operation. These dynamic tensioning systems maintain optimal chain slack regardless of temperature fluctuations. They ensure smooth sprocket engagement and extend the life of the entire drive assembly.
Traditional wet lubrication fails entirely in slag conveyors. When oil or standard grease mixes with abrasive slag dust, it creates a highly destructive grinding paste. This paste gets trapped within the internal clearances of pins and bushings. It accelerates wear far beyond what occurs if the chain runs completely dry.
Alternative lubrication strategies are necessary. Dry film lubricants, such as graphite or molybdenum disulfide, provide a slippery boundary layer without attracting dust. Sealed-for-life components utilize advanced internal seals to keep factory-applied lubricants in and contaminants out. Automated, metered lubrication systems continuously flush contaminants from the friction interface with high-pressure, specialized greases.
A slag conveyor relies entirely on its friction interfaces and drive components. Success in these brutal environments requires specifying engineered chains, appropriate drive configurations, and deeply hardened wear parts. You must evaluate every component against the realities of thermal shock, abrasive dust, and extreme shock loading.
Audit your current conveyor system to identify recurring failure points in the chain or drive assembly.
Consult with a specialized conveyor engineering team to review your specific material characteristics and load profiles.
Request detailed technical spec sheets for all heavy-duty chain and drive components before approving any equipment upgrades.
Implement dynamic tensioning systems and electronic torque monitoring to protect your new drive components from overload.
A: Engineered steel drag chains and circular (round link) chains are the best choices. Standard roller chains cannot survive the abrasion and heavy loads. Circular chains are highly effective in submerged applications due to their self-cleaning properties and lack of internal pin-and-bushing friction points.
A: A circular chain consists of forged, interlocking steel rings. This open design prevents abrasive slag dust from packing into tight clearances. It offers multi-directional flexibility, resists jamming, and eliminates the internal wear points that cause standard chains to elongate and fail.
A: The primary causes are abrasive wear from fine slag dust, thermal expansion seizing internal clearances, and shock loads from heavy slag chunks. Dust acts as a grinding paste inside pins and bushings, causing rapid elongation until the chain no longer fits the sprockets.
A: Protection requires mechanical and electronic safeguards. Mechanical options include shear pin sprockets or fluid couplings that disconnect power during a jam. Electronically, Variable Frequency Drives (VFDs) monitor torque and automatically shut down the motor if current spikes abnormally.
A: Visual inspections of chain tension, sprocket alignment, and lubrication systems should occur daily or weekly. Comprehensive mechanical audits, checking for pin wear and gearbox bearing integrity, must be scheduled during every planned plant shutdown to prevent catastrophic failures.
