Views: 0 Author: Site Editor Publish Time: 2026-08-10 Origin: Site
Processing steel and metallurgical slag presents an exceptionally harsh operational reality for any crushing circuit. This material exhibits extreme abrasiveness, high compressive strength, and a tendency to degrade crushing equipment much faster than standard aggregates. Operators constantly battle severe wear and tear on their machinery, making standard maintenance schedules obsolete. Premature jaw plate wear acts as a critical driver of increased cost-per-ton, unplanned downtime, and reduced throughput due to the rapid loss of optimal chamber geometry. When the crushing chamber loses its profile, the entire plant suffers from bottlenecks.
Mitigating this rapid wear requires moving beyond direct, like-for-like replacements. Plant managers must systematically evaluate slag characteristics, identify operational bottlenecks, and upgrade their metallurgy. Specifying a Strong Wear-Resistant Jaw Plate engineered specifically for high-stress environments is essential to maintain consistent production. This approach shifts the focus from reactive maintenance to proactive wear management.
Slag-Specific Abrasion: The high metallic content and irregular crystalline structure of slag cause severe gouging abrasion, requiring specialized work-hardening alloys rather than standard manganese steel.
Loss of Feed Grip: As jaw plate teeth wear down, they lose their ability to grip the feed material, leading to severe material slippage, increased frictional heating, and accelerated sliding abrasion.
Operational Misalignment: Improper feed distribution, incorrect Closed Side Setting (CSS), and failure to remove tramp iron exponentially accelerate localized wear and stress fractures.
Material Specification Matters: Investing in a Strong Wear-Resistant Jaw Plate with strict quality control (minimizing casting impurities) prevents stress concentration and micro-cracking under heavy loads.
Slag differs drastically from standard quarried rock, presenting unique physical properties that make it notoriously difficult to process efficiently. High Mohs hardness and significant silica content contribute heavily to its abrasive nature. Furthermore, the cooling process of metallurgical slag creates an irregular, glassy crystalline structure that acts like sandpaper against metal surfaces. Metallic inclusions, left over from the smelting process, further complicate the crushing dynamics. These combined factors drastically increase abrasive wear on the crushing chamber, forcing standard manganese plates to wear out in a fraction of their expected lifespan.
Tramp iron poses a severe and constant threat during operation. Uncrushable metallic elements, such as broken excavator teeth, stray rebar, or solid steel chunks, frequently enter the feed. When these uncrushable objects enter a slag crusher, they cause sudden, extreme stress spikes. The jaw plates absorb these massive impact forces, which exceed the yield strength of the alloy. This often leads to immediate structural damage, localized plastic deformation, or accelerated degradation of the tooth profile.
Successful slag crushing requires meeting specific, measurable performance criteria. Plant operators need consistent gradation, predictable wear cycles, and minimal bridging or blockage in the chamber. Establishing this baseline helps evaluate equipment performance accurately. When a crusher operates within these parameters, the downstream screening and secondary crushing stages receive a consistent feed, ensuring the entire operation remains efficient and hits production targets without constant interruptions.
Material Characteristic | Standard Aggregate (Limestone/Granite) | Metallurgical Slag | Impact on Wear Parts |
|---|---|---|---|
Compressive Strength | 100 - 200 MPa | 150 - 300+ MPa | Requires higher yield strength alloys to prevent deformation. |
Abrasiveness (Silica Content) | Low to Medium | Very High (Glassy structure) | Accelerates sliding and frictional abrasion exponentially. |
Metallic Inclusions | Rare (Occasional tramp metal) | Frequent (Inherent to the material) | Causes severe gouging and micro-fracturing on plate teeth. |
Jaw plates in slag applications experience three primary forms of wear. Understanding these distinct mechanisms is critical for selecting better replacement parts and adjusting operational parameters. Sliding and frictional abrasion occurs as highly abrasive slag particles rub continuously against the plate face during the downward crushing stroke. This friction slowly grinds away the surface material, smoothing out the tooth profile over time. Direct impact and squeezing wear happen when high-pressure compressive forces cause micro-fracturing. The alloy surface breaks down under the immense squeezing action, especially when handling oversized feed. Gouging abrasion is caused by sharp metallic inclusions cutting deep grooves into the metal, rapidly destroying the tooth profile and leaving the plate vulnerable to further damage.
Stress concentration often leads to catastrophic micro-cracking. Impurities, non-metallic inclusions, or porosity in the casting act as weak points within the metal matrix. The edges of these metallurgical impurities form cracks under the high compressive forces generated during the crushing cycle. Over time, these micro-cracks propagate through the thickness of the plate, eventually causing large-scale structural failure. High-quality foundry practices are required to minimize these internal defects.
Plastic deformation and peening occur under extreme impact loads. Sometimes, the impact forces from large, hard slag boulders or tramp iron exceed the yield strength of the plate material before the alloy can properly work-harden. This leads to dimensional distortion, metal flow, and a complete loss of the tooth profile. When the metal peens over, it can also cause the jaw plates to bow, making them difficult to remove during maintenance intervals.
Inspect the stationary jaw plate weekly for signs of deep gouging or localized metal flow near the discharge zone.
Measure the tooth height across the middle and lower sections of the swing jaw to track the rate of sliding abrasion.
Check the rear mounting surfaces of the plates for fretting, which indicates the plate is loose and flexing under load.
Examine the side liners for excessive wear, as this often correlates with a loss of grip on the main jaw plates.
Improper feed distribution significantly reduces plate lifespan and overall crusher efficiency. Uneven feeding, often caused by poorly aligned conveyors or inadequate hopper design, segregates fines to one side of the chamber while sending coarse material to the other. This causes severe localized wear on specific sections of the jaw plates. Operators might find themselves forced to discard a plate even if 70% of its surface remains viable, simply because one side has worn down to the backing plate.
Incorrect Closed Side Setting (CSS) calibration is another major factor driving premature wear. Running the equipment with a CSS that is too tight for the chamber design or the specific feed material increases the crushing force exponentially. The chamber design cannot handle this excessive pressure, leading to rapid abrasive wear, particularly at the discharge end. A tight CSS also prevents material from exiting the chamber quickly, increasing the time the abrasive slag spends grinding against the plates.
Chamber profile degradation causes a severe cascading effect on production. As teeth wear down, they lose their grip on the material. Instead of being crushed cleanly, the slag slips upwards and downwards during the crushing stroke. This slippage results in severe sliding wear, lowered production efficiency, and increased energy draw. Eventually, the lack of grip causes material choking, bridging across the chamber, and severe operational blockages that require manual clearing.
Material selection dictates performance in harsh environments. Standard 14% manganese steel, while adequate for soft rock, often fails quickly in slag applications. Upgrading to 18% or 22% manganese grades provides better durability and a higher capacity for work-hardening under impact. Adding molybdenum or titanium carbide (TiC) inserts enhances performance further by providing hard-wearing zones that resist gouging. Maintenance teams must evaluate the trade-offs between initial hardness, yield strength, and the alloy's ability to work-harden without becoming brittle.

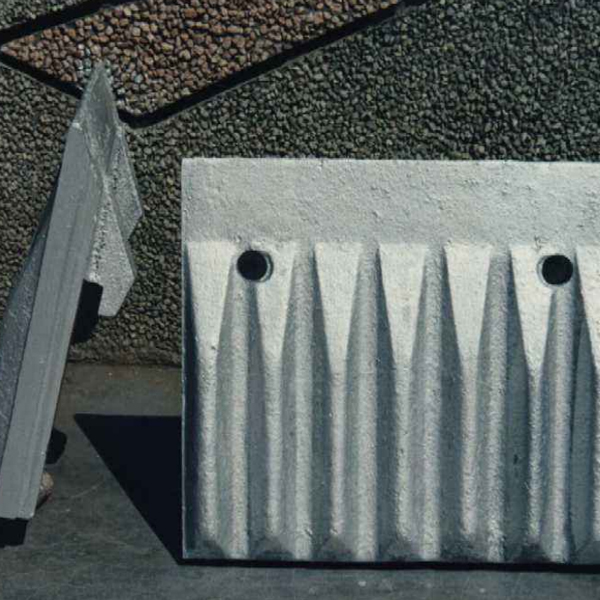

Tooth profile and corrugation design require careful consideration based on the feed material. A decision framework based on specific feed size and grip requirements is necessary. Standard profiles work for general use, but super grip, quarry, or heavy-duty profiles offer different advantages for slippery or slabby slag. The right profile ensures optimal grip, efficient crushing, and proper material flow through the chamber, reducing the time the slag spends abrading the metal.
Casting quality and impurity control are non-negotiable when sourcing wear parts. Plant managers must audit a foundry's quality control processes rigorously. Minimizing internal casting defects prevents stress concentrations that lead to cracking. Proper heat treatment, specifically rapid water quenching, ensures a uniform austenitic structure throughout the casting. This critical step eliminates brittle carbides at the grain boundaries, which are the primary cause of premature cracking under heavy loads.
Manganese Grade | Alloy Additions | Work-Hardening Capacity | Best Application in Slag |
|---|---|---|---|
14% Mn | Standard (None) | Moderate | Light duty, highly weathered slag with low metallic content. |
18% Mn | Chromium (2-3%) | High | Standard metallurgical slag, good balance of wear and impact resistance. |
22% Mn | Molybdenum / TiC Inserts | Very High | Heavy-duty steel slag, extreme abrasion, high tramp iron risk. |
One-piece rotatable jaw plates require strict, disciplined rotation schedules to maximize their lifespan. Operators should rotate them top-to-bottom regularly, typically when the lower section reaches 50% wear. This balances the typical bottom-heavy wear pattern inherent to jaw crushers, where the most crushing work happens near the discharge opening. Proper rotation ensures maximum utilization of the metal before disposal, extending the time between full replacements.
Two-piece segmented designs offer distinct advantages in high-wear slag applications. They allow operators to rotate or replace only the highly worn lower section, which serves as the primary crushing zone and takes the most abuse. This modular approach saves significant maintenance time and material waste, as you do not have to discard the less-worn upper section prematurely. It also makes the physical handling of the plates safer and easier for the maintenance crew.
Pre-screening and magnetic separation are vital protective measures for any slag circuit. Installing robust overband magnets ahead of the crushing chamber removes a large percentage of tramp iron before it can cause damage. Using scalping screens to remove fines and undersized material prevents packing in the chamber, which reduces the squeezing wear on the plates. These upstream protections mitigate the risk of catastrophic plate failure and extend the life of the entire crusher.
Install a heavy-duty overband magnet on the primary feed conveyor.
Set up a vibrating grizzly feeder to scalp out fines smaller than the CSS.
Implement a daily visual inspection of the crushing chamber to check for packed fines.
Schedule plate rotations based on tonnage crushed rather than calendar days.
Ensure all wedge bolts and tension rods are torqued to factory specifications after any plate movement.
Evaluating the operational impact of premium wear parts requires looking beyond the initial purchase order. High-quality alloys and engineered tooth profiles directly influence the daily throughput of the plant. A premium plate maintains its optimal profile longer, preserving a consistent nip angle throughout its life. This consistent geometry ensures that the crusher grabs the slag efficiently on every stroke, rather than allowing it to slip and bounce.
This sustained grip reduces material slippage and significantly lowers the amperage required per ton crushed. When a crusher struggles to grip the rock, the motor draws more current to force the material through the chamber. By maintaining sharp, well-defined teeth, premium plates keep the energy consumption stable. Furthermore, the reduction in slippage means less frictional heating and less wear on the toggle plate and bearings, protecting the broader mechanical health of the machine.
Rapid jaw plate wear in slag applications is rarely a single-variable problem. It stems from a combination of the material's extreme abrasiveness, operational inefficiencies like poor feed distribution, and inadequate metallurgy. Addressing these factors systematically improves overall performance and keeps the crushing circuit running smoothly.
Procurement and maintenance teams must prioritize foundries that offer verifiable metallurgical reporting and strict quality control. Demand custom profile engineering tailored to your specific slag feed and look for proven track records in harsh environments. Avoiding lowest-bidder replacements ensures you get parts that can withstand the brutal reality of slag processing.
Conduct a comprehensive wear profile audit on all currently discarded jaw plates to identify localized wear patterns.
Calibrate your Closed Side Setting daily to match the specific feed material and prevent excessive chamber pressure.
Consult a wear parts specialist to specify an upgraded alloy, such as 22% manganese with molybdenum.
Install or upgrade magnetic separators on the feed conveyor to remove tramp iron before it enters the crushing chamber.
A: The lifespan varies heavily based on slag hardness, feed size, and plate metallurgy. It is significantly shorter than in aggregate applications due to extreme sliding abrasion and metallic inclusions. Regular monitoring is required to determine the exact replacement cycle for your specific operation, but expect lifespans to be roughly half that of standard rock crushing.
A: Uncrushable metal causes sudden, extreme stress spikes during the crushing stroke. These massive impacts lead to localized stress fractures, plastic deformation, and peening of the teeth. If not removed by magnets, tramp iron can cause catastrophic failure of the jaw plate, bend the toggle plate, and damage the main crusher frame.
A: High-manganese steel alloys containing 18% to 22% manganese perform best in these environments. They are often enhanced with molybdenum or titanium carbide inserts. This specific combination provides the superior work-hardening capabilities and high yield strength necessary to withstand high-impact slag crushing without brittle failure.
A: Cracking usually stems from internal casting impurities, porosity, and improper heat treatment at the foundry. These defects create stress concentration points within the metal matrix. Under heavy compressive loads, micro-cracks form at these weak points and propagate through the plate, leading to sudden structural failure.
A: Two-piece plates offer better replacement flexibility in high-wear environments. You can replace just the heavily worn lower section, saving material and labor. One-piece plates require full replacement, though rotating them top-to-bottom can help balance the wear pattern and extend their usable life.
A: Worn, flattened teeth allow slag to slip upwards and downwards during the crushing stroke instead of breaking cleanly. This slippage generates extreme frictional wear, reduces throughput, and increases energy draw. Ultimately, the material bridges and chokes the chamber, causing severe operational blockages that halt production.
