Belt deviation in heavy-duty material handling represents a massive operational drain. It leads to accelerated wear, severe material spillage, and unplanned downtime. When you handle abrasive materials, a minor tracking issue quickly escalates into catastrophic belt edge damage or complete structural failure. The high bulk density, sharp edges, and thermal load of slag uniquely exacerbate standard tracking problems. Precision alignment and robust hardware are absolute requirements.
Preventing deviation demands a multi-tiered approach. You must start with baseline structural alignment and proper tensioning. From there, you extend into the integration of specialized hardware. Relying on basic adjustments fails in high-abrasion environments. By combining rigorous maintenance protocols with advanced tracking components, plant operators ensure continuous, reliable material transport. You cannot ignore the physical realities of the material; you must engineer the system to handle them.
Belt deviation in a slag conveyor is rarely caused by a single factor; it requires evaluating pulley alignment, belt tension, and load distribution simultaneously.
Standard tracking idlers often fail in slag applications due to debris buildup; specialized hardware is required for high-abrasion environments.
Implementing a flexible anti-deviation wheel provides dynamic tracking correction without the severe belt edge wear caused by rigid guide rollers.
Routine inspection for fugitive material buildup on tail pulleys and return idlers is the most cost-effective preventative measure against sudden belt slippage and deviation.
Optimizing the relative height and drop trajectory at conveyor transfer points significantly mitigates lateral impact forces that cause belt wander.
Slag possesses physical properties that make it exceptionally difficult to transport. Its sharp edges, high density, and varied particle sizes mean that uneven loading immediately creates asymmetrical tension across the belt width. When the load shifts off-center, the belt naturally tracks toward the lighter side. This leads to immediate alignment problems that compound over time.
Volumetric and mass overloading beyond the designed capacity of the slag conveyor causes the belt to sag between idlers. This sagging alters the tension profile and forces the belt to drift off-course. Fugitive abrasive dust easily penetrates standard roller bearings. This causes localized drag, seizing the rollers and forcing the belt to drag across stationary metal. The resulting friction pulls the belt further out of alignment and destroys the bottom cover.
Material Property | Impact on Conveyor Tracking | Field Observation |
|---|---|---|
High Bulk Density | Increases sag between idlers, altering tension profiles. | Belt wanders heavily under full load, tracks fine empty. |
Abrasive Dust | Seizes standard bearings, creating uneven drag. | Rollers stop turning; belt pulls toward the seized side. |
Sharp Edges | Gouges belt covers and damages rigid guide rollers. | Rapid edge fraying when contacting fixed tracking hardware. |
Establishing a stable system requires defining clear baseline metrics. You must establish acceptable lateral movement tolerances, required belt tension parameters, and a target lifespan for belt edges. Without these metrics, measuring the effectiveness of any corrective action is impossible. You need hard data from the field.
Evaluating solutions involves balancing upfront hardware installation against long-term reductions in maintenance downtime and replacement belt expenditures. A successful deviation prevention strategy minimizes manual intervention. It protects the structural integrity of the entire system while keeping production rates high.
Squaring and leveling all terminal pulleys is a fundamental technical requirement. The head, tail, drive, and snub pulleys must be perfectly perpendicular to the intended belt path. Abrasive slag wear alters pulley crown profiles, causing chronic tracking errors. Inspecting and replacing worn, eccentric, or physically damaged pulleys is non-negotiable for plant maintenance teams.
The knock-in method is traditionally used for adjusting carrying and return idlers to steer the belt. By slightly skewing the idler frame, operators guide the belt back to the center. This method has severe limitations in high-vibration environments. Manual adjustments easily vibrate loose, requiring constant recalibration and wasting maintenance hours.
Isolate and lock out the conveyor drive system.
Establish a center line using a laser level or piano wire from the head to the tail pulley.
Measure the distance from the center line to the edge of each pulley face to ensure perpendicularity.
Adjust the bearing housings on the tail pulley to square it to the frame.
Verify the level of all carrying idler frames across the stringers.
The relationship between slack side tension, wrap angle, and belt slip dictates overall stability. Inadequate tension allows the belt to wander off-center under heavy loads. Adjusting the take-up unit mitigates this by maintaining consistent tension across varying load conditions. You must ensure the take-up carriage moves freely.
The slack side tension required to prevent slip is a direct function of the wrap angle. Increasing the wrap angle via snub pulleys reduces the overall tension threshold required. This prevents over-tensioning. Over-tensioning damages splices and accelerates wear on both the belt and the pulley bearings.
Off-center loading is a primary cause of belt wander. If material hits the belt off-center, the belt tracks to the lightly loaded side. Adjusting the relative height of the feeding conveyor and the receiving conveyor minimizes the drop distance. This controls the material trajectory and reduces lateral impact forces.
Structural modifications to transfer chutes are often necessary. Installing deflector plates, impact cradles, and rock boxes ensures material deposits exactly at the center of the belt at the correct velocity. Proper chute design eliminates the asymmetrical forces that drive the belt off its intended path.
Standard pivoting training idlers attempt to steer the belt by swiveling when the belt wanders. Fixed vertical guide rollers simply block the belt from moving further off-center. Fixed guide rollers force the belt into position, but they cause severe friction and delamination on the belt edges. This is especially true when handling heavy materials.

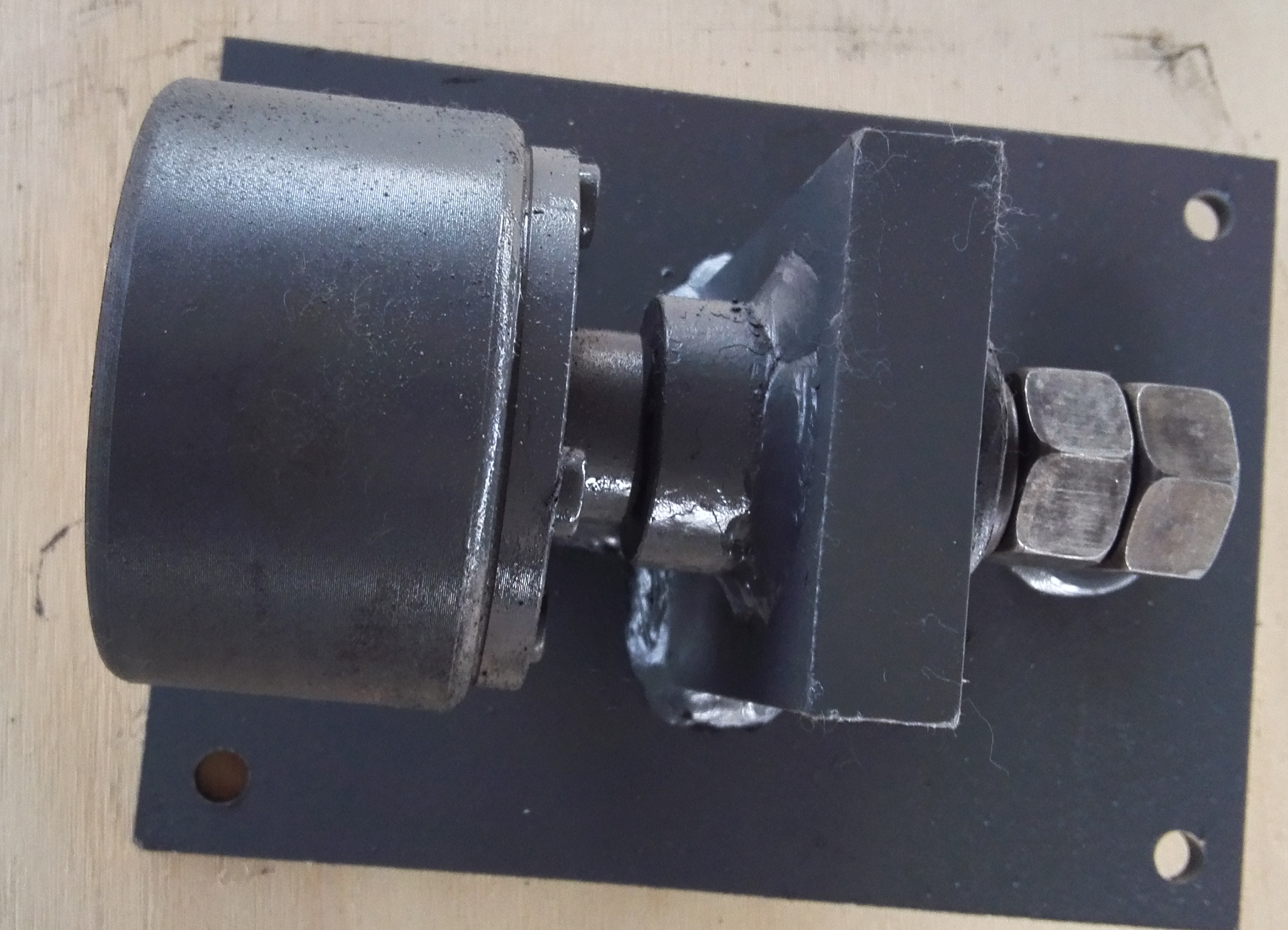

The Flexible Anti-Deviation Wheel offers a superior alternative to rigid vertical rollers. Its flexible design absorbs the lateral kinetic energy of a wandering belt. It gently corrects the path without grinding the belt edge. This dynamic tracking correction protects the belt while maintaining alignment under heavy loads.
For maximum efficacy, install these wheels at critical points along the structure. Placing them just before the tail pulley and strategically along the return run ensures the belt centers before it enters high-tension zones. Proper placement dictates the success of the hardware.
Material buildup on rollers is a root cause of many deviation issues. Integrating primary and secondary belt cleaners prevents material from becoming trapped between the belt and the pulley. V-plows on the return side protect the tail pulley. Effective debris management keeps the roller diameters consistent, preventing the belt from tracking away from artificial buildup.
Dust mixing with moisture cements onto rollers, artificially increasing their diameter. This causes the belt to track away from the buildup, creating severe alignment issues. Specifying the use of self-cleaning return idlers, such as rubber disc rollers, mitigates this risk. You must mandate strict cleaning intervals.
Over-relying on reactive hardware rather than fixing root alignment issues leads to premature belt failure. The underlying structural alignment must be correct. Requiring laser alignment audits during commissioning and after any major structural maintenance ensures the system operates within acceptable tolerances.
Inspect return idlers, pulleys, and chutes for cemented buildup.
Audit for seized bearings, worn shell casings, and physical structural damage.
Verify take-up travel and ensure tension is balanced across the width.
Verify that the material drop point and velocity from the preceding transfer chute are perfectly centered.
Check the splice for squareness; a crooked splice causes periodic tracking jumps.
A realistic inspection checklist must include bearing temperature monitoring and visual checks of the tracking hardware for wear. Tensioner calibration is required monthly. The cleaning and scrapers adjustment cycle should be defined based on throughput volume and moisture levels. This ensures the system remains free of disruptive buildup.
Conduct a comprehensive laser alignment audit of your entire conveyor frame and terminal pulleys to establish a baseline.
Inspect all return rollers and tail pulleys for material buildup, replacing any seized components immediately.
Install flexible tracking hardware on the return run just before the tail pulley to manage dynamic load shifts.
Redesign transfer chutes with deflector plates to ensure material loads perfectly in the center of the receiving belt.
A: The most common causes are off-center loading, improper transfer heights, and debris buildup on pulleys. When material loads unevenly, the belt naturally tracks to the lighter side. Debris buildup artificially changes pulley diameters, forcing the belt off-center.
A: It absorbs the lateral kinetic energy of a wandering belt. Unlike rigid rollers that grind against the belt, the flexible design gently redirects the belt back to the center without causing edge damage or delamination.
A: Proper tension prevents slippage, but over-tensioning exacerbates alignment issues. Excessive tension damages splices, accelerates wear on bearings, and warps the conveyor frame, making tracking problems worse.
A: Standard training idlers rely on a central pivot bearing to swivel and steer the belt. In abrasive applications, dust quickly penetrates and seizes this bearing, rendering the idler useless and locking it in a skewed position.
A: Dropping material from excessive heights or at incorrect angles introduces high lateral impact forces. These forces easily knock the receiving belt off-line, creating immediate and severe tracking deviations.
A: Inspections should be conducted weekly for high-tonnage operations, focusing on roller cleanliness and load centering. Comprehensive laser alignment audits should occur bi-annually or after any major structural maintenance.
A: The necessary wrap angle depends on the load and tension. Larger wrap angles, achieved via snub pulleys, reduce the overall tension required to prevent slip, protecting the belt and bearings from excessive stress.
