A shaft coupling is a fundamental mechanical component that directly influences how efficiently rotational power is transmitted between two shafts. In modern mechanical and industrial systems, couplings are not merely connectors; they compensate for misalignment, absorb vibration, manage torque loads, and protect connected equipment from damage. Understanding what a coupling is, the different types available, and the features that define their performance is essential for engineers, maintenance professionals, and system designers seeking reliability and efficiency.
This article focuses exclusively on explaining what a coupling (shaft coupling) is, its main types, and the functional features that distinguish one coupling solution from another. Every section is designed to support practical decision-making rather than repeating generic definitions.
A shaft coupling is a mechanical device used to connect two rotating shafts so that torque and rotational motion can be transmitted from one shaft to another. While the basic function appears simple, the real value of a coupling lies in how it manages operational challenges such as shaft misalignment, vibration, axial movement, and varying torque loads.
In real-world machinery, shafts are rarely perfectly aligned. Thermal expansion, manufacturing tolerances, bearing wear, and installation errors all introduce deviations. A well-designed shaft coupling accommodates these deviations without transferring excessive stress to motors, gearboxes, or driven equipment.
Beyond torque transmission, many industrial shaft coupling designs act as protective elements. They can dampen vibration, reduce noise, and isolate shock loads. In high-precision systems, couplings also play a critical role in maintaining positional accuracy and rotational consistency.
The importance of a shaft coupling becomes most apparent when it is poorly selected or improperly installed. In such cases, premature bearing failure, shaft fatigue, seal leakage, and unexpected downtime are common outcomes. Couplings serve as the mechanical interface that balances power transfer with system protection.
In high-speed or high torque shaft coupling applications, even minor misalignment can amplify forces dramatically. A suitable coupling absorbs these forces rather than allowing them to damage connected components. This is especially critical in continuous-duty industrial environments where reliability directly affects productivity and operational cost.
Additionally, couplings influence system efficiency. Excessive backlash, torsional wind-up, or rigidity mismatches can lead to energy losses and unstable operation. Selecting the right coupling ensures smoother torque transmission, longer service life, and predictable system behavior under load.
Different operating conditions require different coupling designs. Below is a focused classification based on functional behavior rather than brand or proprietary structure.
Rigid shaft coupling designs create a solid connection between shafts and do not allow for misalignment. They are used where precise shaft alignment is guaranteed and system stiffness is required.
Rigid couplings offer:
Zero backlash
High torsional rigidity
Excellent torque transmission efficiency
However, they transmit vibration directly and offer no misalignment compensation, making them suitable only for carefully aligned systems.

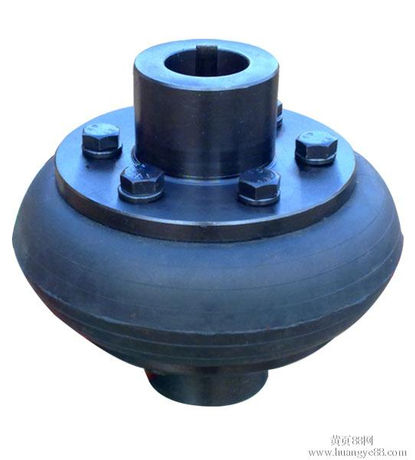

Flexible designs allow limited angular, parallel, or axial misalignment. They are widely used in industrial shaft coupling applications where alignment conditions change during operation.
Common advantages include:
Reduced vibration transmission
Compensation for thermal expansion
Protection for bearings and seals
Bellows shaft coupling designs use thin-walled metal bellows to achieve flexibility while maintaining torsional rigidity. They are common in precision motion systems.
Key characteristics:
Zero backlash
High positional accuracy
Suitable for servo and encoder systems
Not all couplings perform the same, even within the same category. Several features determine whether a shaft coupling is suitable for a given application.
Couplings may compensate for:
Angular misalignment
Parallel misalignment
Axial displacement
The degree of compensation varies significantly by design.
A high torque shaft coupling must withstand peak loads, shock loads, and continuous operating torque without deformation or fatigue failure.
High torsional stiffness improves positioning accuracy, while lower stiffness helps absorb vibration and shock.
Temperature, corrosion, dust, and moisture all affect coupling performance. Material selection plays a key role here.
Material choice directly impacts durability, weight, corrosion resistance, and torque capacity. Below is a comparison of commonly used materials:
| Material Type | Key Features | Typical Applications |
|---|---|---|
| Stainless Steel Shaft Coupling | Corrosion resistance, strength | Food processing, chemical systems |
| Aluminum Alloy Shaft Coupling | Lightweight, good machinability | Automation, robotics |
| Carbon Steel | High strength, cost-effective | Heavy industrial equipment |
| Elastomer Inserts | Vibration damping | Pumps, compressors |
Stainless steel shaft coupling designs are favored in corrosive or hygienic environments, while aluminum alloy shaft coupling options excel in lightweight and high-speed systems.
Choosing the correct shaft coupling requires balancing mechanical requirements with environmental and operational conditions. Key selection criteria include:
Maximum and nominal torque
Shaft diameters and tolerances
Operating speed
Misalignment type and magnitude
Environmental exposure
For example, a rigid shaft coupling may be ideal for a precision test rig, while a flexible or bellows design is better suited for dynamic industrial machinery.
Installation and maintenance considerations also matter. Some couplings simplify assembly and reduce downtime, which can be a decisive factor in large-scale operations.
Shaft couplings are used across countless industries, including manufacturing, automation, energy, and transportation. Each scenario places different demands on the coupling.
Pumps require vibration damping and misalignment tolerance
Servo systems demand zero backlash and high stiffness
Heavy machinery needs high torque shaft coupling solutions
Corrosive environments rely on stainless steel shaft coupling designs
Understanding these use cases ensures that coupling selection aligns with real operational stresses rather than theoretical ratings.
A shaft coupling is far more than a simple mechanical connector. It is a critical system component that directly affects performance, reliability, and service life. By understanding what a coupling is, the main types available, and the features that define their behavior, engineers and system designers can make informed decisions that prevent failures and optimize power transmission.
Whether the priority is precision, flexibility, durability, or torque capacity, selecting the right industrial shaft coupling ensures stable operation and long-term efficiency across a wide range of applications.
Q1: What is the main purpose of a shaft coupling?
A shaft coupling connects two rotating shafts to transmit torque while managing misalignment, vibration, and mechanical stress.
Q2: When should a rigid shaft coupling be used?
A rigid shaft coupling is suitable when shafts are precisely aligned and maximum torsional stiffness is required.
Q3: Why choose a stainless steel shaft coupling?
Stainless steel shaft coupling designs offer excellent corrosion resistance and strength in harsh or hygienic environments.
Q4: Are aluminum alloy shaft couplings suitable for high torque?
An aluminum alloy shaft coupling is lightweight and ideal for moderate torque and high-speed applications, but may not suit extreme torque demands.
Q5: How does a bellows shaft coupling differ from other types?
A bellows shaft coupling combines flexibility with high torsional rigidity, making it ideal for precision motion control systems.
